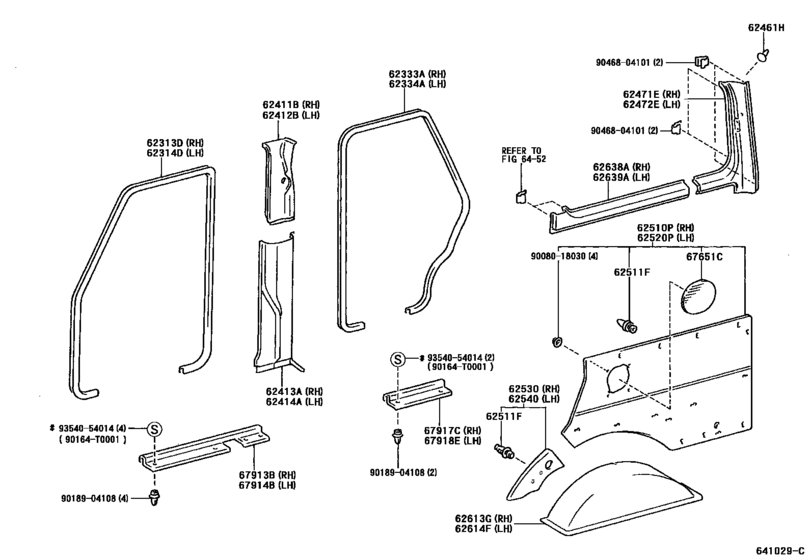

Inside Trim Board ([01.2002 - ] (0201- )GL) Diagram Toyota QUALIS
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- LF50
- grade
- GL
- ENGINE
- 2L
- Model
- QUALIS
- From
- 01.2002
- To
- 12.2004
- Vehicle Model
- QUALIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62313D
|
62313D
62313-0B060-B0
Trim, Front Door Opening, Rh
[12.1999 - 12.2004] LF50,RZF50 BLUISH GRAY,TRIM1# |
62313-0B060-B0 |
— | ||
|
62314D
|
62314D
62313-0B060-B0
Trim, Front Door Opening, Rh
[12.1999 - 12.2004] LF50,RZF50 BLUISH GRAY,TRIM1# |
62313-0B060-B0 |
— | ||
|
62333A
|
62333A
62333-0B070-B0
Trim, Rear Door Opening, Rh
[12.1999 - 12.2004] LF50,RZF50 BLUISH GRAY,TRIM1# |
62333-0B070-B0 |
— | ||
|
62334A
|
62334A
62333-0B070-B0
Trim, Rear Door Opening, Rh
[12.1999 - 12.2004] LF50,RZF50 BLUISH GRAY,TRIM1# |
62333-0B070-B0 |
— | ||
|
62411B
|
62411B
62411-0B050-B0
Garnish, Center Pillar, Upper Rh
[12.1999 - 12.2004] LF50,RZF50..DLX,GL LT.BLUISH GRAY,TRIM1# |
62411-0B050-B0 |
— | ||
|
62412B
|
62412B
62412-0B050-B0
Garnish, Center Pillar, Upper Lh
[12.1999 - 12.2004] LF50,RZF50..DLX,GL LT.BLUISH GRAY,TRIM1# |
62412-0B050-B0 |
— | ||
|
62413A
|
62413A
62413-0B100-B0
Garnish, Center Pillar, Lower Rh
[12.1999 - 12.2004] LF50,RZF50..DLX,GL W(DUAL AIR CONDITIONER),BLUISH GRAY,TRIM1# |
62413-0B100-B0 |
— | ||
|
62414A
|
62414A
62414-0B100-B0
Garnish, Center Pillar, Lower Lh
[12.1999 - 12.2004] LF50,RZF50..DLX,GL W(DUAL AIR CONDITIONER),BLUISH GRAY,TRIM1# |
62414-0B100-B0 |
— | ||
|
62461H
|
62461H
90467-06161-C0 Clip, Rear Seat Belt Cover[12.1999 -] LF50,RZF50 BLACK,TRIM1# |
90467-06161-C0 |
US $2.33 |
||
|
62471E
|
62471E
62471-0B100-B0
Garnish, Roof Side, Inner Upper Rh
[01.2002 - 09.2002] LF50,RZF50..GL LT. BLUISH GRAY,TRIM1# |
62471-0B100-B0 |
— | ||
| replacement | |||||
|
62471E
|
62471E
62471-0B100-B1
Garnish, Roof Side, Inner Upper Rh
[01.2002 - 09.2002] LF50,RZF50..GL LT. BLUISH GRAY,TRIM1# |
62471-0B100-B1 |
— | ||
|
62471E
|
62471E
62471-0B150-B0
Garnish, Roof Side, Inner Upper Rh
[01.2002 - 09.2002] LF50,RZF50..GL W(REAR SEAT BELT),LT. BLUISH GRAY,TRIM1# |
62471-0B150-B0 |
— | ||
|
62471E
|
62471E
62471-0B160-B0
Garnish, Roof Side, Inner Upper Rh
[09.2002 - 12.2004] LF50,RZF50..GL BLUISH GRAY,TRIM1# |
62471-0B160-B0 |
— | ||
|
62472E
|
62472E
62472-0B120-B0
Garnish, Roof Side, Inner Upper Lh
[09.2002 - 12.2004] LF50,RZF50..GL BLUISH GRAY,TRIM1# |
62472-0B120-B0 |
— | ||
|
62472E
|
62472E
62472-0B140-B0
Garnish, Roof Side, Inner Upper Lh
[01.2002 - 09.2002] LF50,RZF50..GL LT. BLUISH GRAY,TRIM1# |
62472-0B140-B0 |
— | ||
| replacement | |||||
|
62472E
|
62472E
62471-0B100-B1
Garnish, Roof Side, Inner Upper Rh
[01.2002 - 09.2002] LF50,RZF50..GL LT. BLUISH GRAY,TRIM1# |
62471-0B100-B1 |
— | ||
|
62472E
|
62472E
62472-0B150-B0
Garnish, Roof Side, Inner Upper Lh
[01.2002 - 09.2002] LF50,RZF50..GL W(REAR SEAT BELT),LT. BLUISH GRAY,TRIM1# |
62472-0B150-B0 |
— | ||
|
62510P
|
62510P
62510-0B180-B1
Panel Assy, Quarter Trim, Front Rh
[01.2002 - 09.2002] LF50,RZF50..GL BLUISH GRAY,TRIM1# |
62510-0B180-B1 |
— | ||
|
62510P
|
62510P
62510-0B270-B1
Panel Assy, Quarter Trim, Front Rh
[01.2002 - 12.2004] LF50,RZF50..GL W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
62510-0B270-B1 |
— | ||
|
62511F
|
62511F
67771-12050 Clip, Radiator Grille[12.1999 - 02.2002] LF50,RZF50 |
67771-12050 |
from US $1.58 |
||
|
62511F
|
62511F
90467-10161 Clip[02.2002 - 09.2002] LF50,RZF50 NATURAL |
90467-10161 |
from US $0.92 |
||
|
62520P
|
62520P
62520-0B180-B1
Panel Assy, Quarter Trim, Front Lh
[01.2002 - 09.2002] LF50,RZF50..GL BLUISH GRAY,TRIM1# |
62520-0B180-B1 |
— | ||
|
62520P
|
62520P
62520-0B270-B1
Panel Assy, Quarter Trim, Front Lh
[01.2002 - 09.2002] LF50,RZF50..GL W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
62520-0B270-B1 |
— | ||
|
62520P
|
62520P
62520-0B840-B0
Panel Assy, Quarter Trim, Front Lh
[09.2002 - 12.2004] LF50,RZF50..GL BLUISH GRAY,TRIM1# |
62520-0B840-B0 |
— | ||
|
62530
|
62530
62530-0B030-B0
Panel Assy, Quarter Trim, Lower Rh
[02.2002 - 12.2004] LF50;RZF50..GL W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
62530-0B030-B0 |
— | ||
|
62530
|
62530
62530-0B060-B0
Panel Assy, Quarter Trim, Lower Rh
[12.1999 - 02.2002] LF50,RZF50..DLX,GL W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
62530-0B060-B0 |
— | ||
|
62530
|
62530
62530-0B070-B0
Panel Assy, Quarter Trim, Lower Rh
[02.2002 - 09.2002] LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
62530-0B070-B0 |
— | ||
|
62530
|
62530
62530-0B080-B0
Panel Assy, Quarter Trim, Lower Rh
[12.1999 - 02.2002] LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
62530-0B080-B0 |
— | ||
|
62540
|
62540
62540-0B030-B0
Panel Assy, Quarter Trim, Lower Lh
[02.2002 - 12.2004] LF50;RZF50..GL W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
62540-0B030-B0 |
— | ||
|
62540
|
62540
62540-0B060-B0
Panel Assy, Quarter Trim, Lower Lh
[12.1999 - 02.2002] LF50,RZF50..DLX,GL W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
62540-0B060-B0 |
— | ||
|
62540
|
62540
62540-0B070-B0
Panel Assy, Quarter Trim, Lower Lh
[02.2002 - 09.2002] LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
62540-0B070-B0 |
— | ||
|
62540
|
62540
62540-0B080-B0
Panel Assy, Quarter Trim, Lower Lh
[12.1999 - 02.2002] LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
62540-0B080-B0 |
— | ||
|
62613G
|
62613G
62610-0B061-B0
Cover Assy, Quarter Wheel House, Rh
[01.2002 - 12.2004] LF50,RZF50..GL BLUISH GRAY,TRIM1# |
62610-0B061-B0 |
— | ||
| replacement | |||||
|
62613G
|
62613G
62610-0B081-B0
Cover Assy, Quarter Wheel House, Rh
[01.2002 - 12.2004] LF50,RZF50..GL BLUISH GRAY,TRIM1# |
62610-0B081-B0 |
— | ||
|
62614F
|
62614F
62620-0B061-B0
Cover Assy, Quarter Wheel House, Lh
[01.2002 - 12.2004] LF50,RZF50..GL BLUISH GRAY,TRIM1# |
62620-0B061-B0 |
— | ||
| replacement | |||||
|
62614F
|
62614F
62620-0B081-B0
Cover Assy, Quarter Wheel House, Lh
[01.2002 - 12.2004] LF50,RZF50..GL BLUISH GRAY,TRIM1# |
62620-0B081-B0 |
— | ||
|
62638A
|
62638A
62638-0B130-B0
Garnish, Quarter Pillar, Rh
[01.2002 - 12.2004] LF50,RZF50..GL BLUISH GRAY,TRIM1# |
62638-0B130-B0 |
— | ||
|
62639A
|
62639A
62639-0B110-B0
Garnish, Quarter Pillar, Lh
[01.2002 - 12.2004] LF50,RZF50..GL BLUISH GRAY,TRIM1# |
62639-0B110-B0 |
— | ||
|
67651C
|
67651C
67651-0B070-B0
Grille, Speaker Door, Rh
[01.2002 - 09.2002] LF50,RZF50..GL W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
67651-0B070-B0 |
— | ||
|
67913B
|
67913B
67913-0B020-B1
Plate, Front Door Scuff, Rh
[12.1999 - 12.2004] LF50,RZF50 BLUISH GRAY,TRIM1# |
67913-0B020-B1 |
— | ||
|
67914B
|
67914B
67914-0B010-B1
Plate, Front Door Scuff, Lh
[12.1999 - 12.2004] LF50,RZF50 BLUISH GRAY,TRIM1# |
67914-0B010-B1 |
— | ||
|
67917C
|
67917C
67917-0B020-B1
Plate, Rear Door Scuff, Rh
[12.1999 - 12.2004] LF50,RZF50 BLUISH GRAY,TRIM1# |
67917-0B020-B1 |
— | ||
|
67918E
|
67918E
67917-0B020-B1
Plate, Rear Door Scuff, Rh
[12.1999 - 12.2004] LF50,RZF50 BLUISH GRAY,TRIM1# |
67917-0B020-B1 |
— | ||
|
90164T0001
|
90164T0001
90164-T0001
Screw,tapping
|
90164-T0001 |
— | ||
|
9008018030
|
9008018030
90080-18030
New Genuine Part
|
90080-18030 |
— | ||
|
9018904108
|
9018904108
90189-04108 New Genuine Part |
90189-04108 |
US $1.65 |
||
|
9046804101
|
9046804101
90468-04101 Clip, Roof Headlining |
90468-04101 |
US $0.87 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $1.05 |
||
