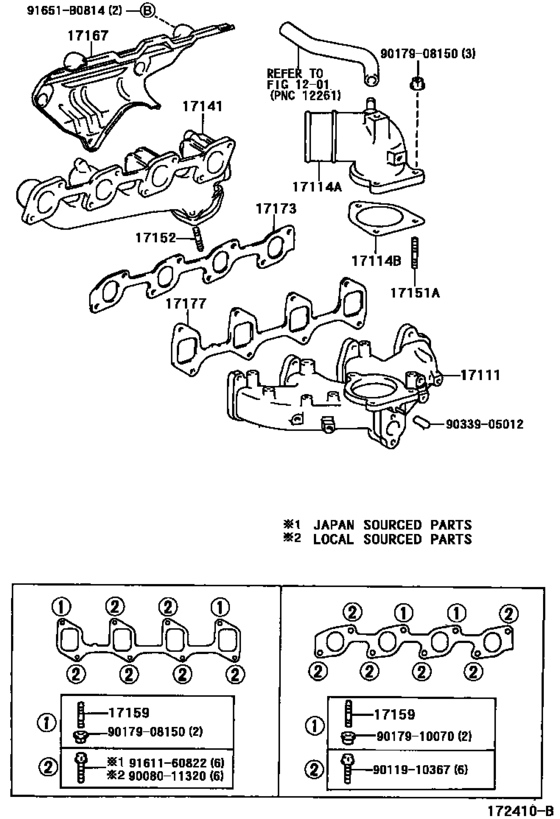

Manifold ([12.1999 - ] (9912- )2L) Diagram Toyota QUALIS
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- LF50
- grade
- GL
- ENGINE
- 2L
- Model
- QUALIS
- From
- 01.2002
- To
- 12.2004
- Vehicle Model
- QUALIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-05040
Manifold, Intake
[12.1999 - 09.2002] 2L..LF50..GL |
17111-05040 |
— | ||
|
17111
|
17111
17111-05050
Manifold, Intake
[03.2000 - 03.2004] 2L..LF50 W(EGR), ENGINE NO.=9000001-9999999 |
17111-05050 |
— | ||
|
17111
|
17111
17111-54140 Manifold, Intake[03.2004 - 12.2004] 2L..LF50 W(EGR), ENGINE NO.=0002001-9000000 |
17111-54140 |
US $214.03 |
||
|
17114A
|
17114A
17114-54050
Flange, Intake
[12.1999 - 12.2004] 2L..LF50 |
17114-54050 |
— | ||
|
17114B
|
17114B
17116-54030 Gasket, Intake Flange[08.2000 - 12.2004] 2L..LF50 |
17116-54030 |
from US $4.11 |
||
|
17141
|
17141
17141-54111 Manifold, Exhaust[12.1999 - 09.2002] 2L..LF50..GL |
17141-54111 |
US $183.46 |
||
|
17141
|
17141
17141-54121 Manifold, Exhaust[03.2000 - 12.2004] 2L..LF50 W(EGR) |
17141-54121 |
US $193.65 |
||
|
17151A
|
17151A
90116-08293 Bolt, Stud(For Manifold To Venturi)[12.1999 - 12.2004] 2L..LF50 |
90116-08293 |
US $1.75 |
||
|
17152
|
17152
90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)[12.1999 - 06.2002] 2L..LF50 |
90116-10088 |
from US $1.07 |
||
|
17152
|
17152
90116-T0001
Bolt, Stud(For Manifold To Exhaust Pipe)
[06.2002 - 03.2004] 2L..LF50 (L) |
90116-T0001 |
— | ||
|
17159
|
17159
90116-08220 Bolt, Stud(For Intake Manifold To Cylinder Head)[12.1999 - 12.2004] 2L..LF50 INTAKE MANIFOLD,(J) |
90116-08220 |
US $3.04 |
||
|
17159
|
17159
90116-10141 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[12.1999 - 12.2004] 2L..LF50 EXHAUST MANIFOLD,(J) |
90116-10141 |
from US $1.56 |
||
|
17159
|
17159
90116-T0003
Bolt, Stud(For Manifold To Cylinder Head)
[04.2003 - 03.2004] 2L..LF50 INTAKE MANIFOLD,(L) |
90116-T0003 |
— | ||
|
17159
|
17159
90126-T0004
Bolt, Stud(For Manifold To Cylinder Head)
[04.2003 - 03.2004] 2L..LF50 EXHAUST MANIFOLD,(L) |
90126-T0004 |
— | ||
|
17167
|
17167
17167-05020 Insulator, Exhaust Manifold Heat, No.1[12.1999 - 03.2004] 2L..LF50 (L) |
17167-05020 |
US $78.62 |
||
|
17167
|
17167
17167-54110 Insulator, Exhaust Manifold Heat, No.1[12.1999 - 12.2004] 2L..LF50 (J) |
17167-54110 |
US $64.82 |
||
|
17173
|
17173
17173-05010
Gasket, Exhaust Manifold To Head
[12.1999 - 03.2004] 2L..LF50 (L) |
17173-05010 |
— | ||
|
17173
|
17173
17173-54030 Gasket, Exhaust Manifold To Head[12.1999 - 12.2004] 2L..LF50 (J) |
17173-54030 |
US $15.66 |
||
| replacement | |||||
|
17173
|
17173
17173-05010
Gasket, Exhaust Manifold To Head
[12.1999 - 12.2004] 2L..LF50 (J) |
17173-05010 |
— | ||
|
17177
|
17177
17177-05011
Gasket, Intake Manifold To Head, No.1
[12.1999 - 09.2002] 2L..LF50..GL (L) |
17177-05011 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-54021 Gasket, Intake Manifold To Head, No.1[12.1999 - 09.2002] 2L..LF50..GL (L) |
17177-54021 |
US $8.48 |
||
|
17177
|
17177
17177-54021 Gasket, Intake Manifold To Head, No.1[12.1999 - 12.2004] 2L..LF50 (J) |
17177-54021 |
US $8.48 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
| replacement | |||||
|
91651B0814
|
91651B0814
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9008011320
|
9008011320
90080-11320
BOLT WWASHER
|
90080-11320 |
— | ||
|
9011910367
|
9011910367
90119-10367 BOLT |
90119-10367 |
US $1.76 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $1.05 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.40 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9033905012
|
9033905012
90339-05012 New Genuine Part |
90339-05012 |
US $6.08 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.50 |
||
