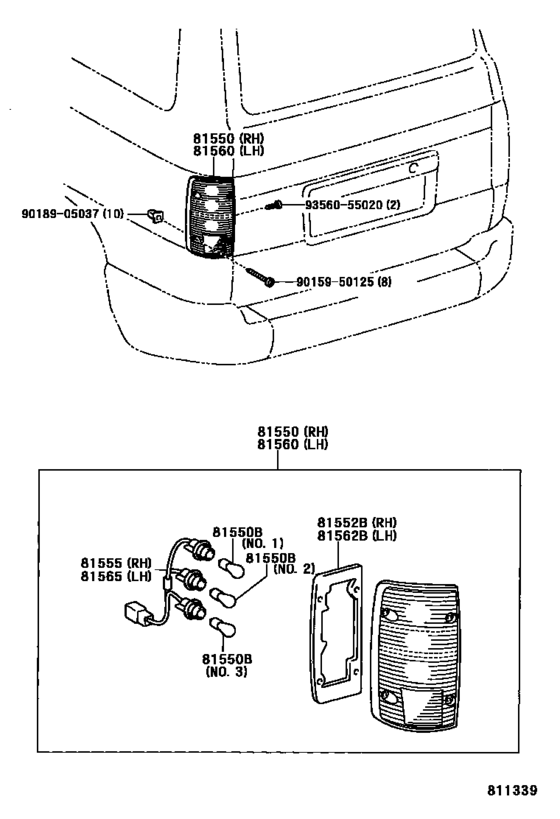

Rear Combination Lamp ([12.1999 - 09.2002] (9912-0209)) Diagram Toyota QUALIS
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- LF50
- grade
- GL
- ENGINE
- 2L
- Model
- QUALIS
- From
- 01.2002
- To
- 12.2004
- Vehicle Model
- QUALIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-0B050
Lamp Assy, Rear Combination, Rh
[12.1999 - 09.2002] LF50,RZF50 |
81550-0B050 |
— | ||
|
81550
|
81550
81550-0B110
Lamp Assy, Rear Combination, Rh
[09.2002 -] LF50,RZF50 |
81550-0B110 |
— | ||
|
81550B
|
81550B
90981-15009 Bulb(For Headlamp, No.2)[12.1999 -] LF50,RZF50 12V 21W,AMBER,NO.2 |
90981-15009 |
from US $5.05 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[12.1999 -] LF50,RZF50 12V 21W,NO.1 |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[12.1999 -] LF50,RZF50 12V 21/5W,NO.3 |
99132-21210 |
from US $2.81 |
||
|
81552B
|
81552B
81552-0B050
Packing, Rear Combination Lamp Body, Rh
[12.1999 - 09.2002] LF50,RZF50 |
81552-0B050 |
— | ||
|
81555
|
81555
81555-0B050
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[12.1999 - 09.2002] LF50,RZF50 |
81555-0B050 |
— | ||
|
81560
|
81560
81560-0B050
Lamp Assy, Rear Combination, Lh
[12.1999 - 09.2002] LF50,RZF50 |
81560-0B050 |
— | ||
|
81560
|
81560
81560-0B110
Lamp Assy, Rear Combination, Lh
[09.2002 -] LF50,RZF50 |
81560-0B110 |
— | ||
|
81562B
|
81562B
81562-0B050
Packing, Rear Combination Lamp Body, Lh
[12.1999 - 09.2002] LF50,RZF50 |
81562-0B050 |
— | ||
|
81565
|
81565
81555-0B050
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[12.1999 - 09.2002] LF50,RZF50 |
81555-0B050 |
— | ||
|
9015950125
|
9015950125
90159-50125 SCREW |
90159-50125 |
US $0.96 |
||
|
9018905037
|
9018905037
90189-05037 GROMMET |
90189-05037 |
US $2.08 |
||
|
9356055020
|
9356055020
93560-55020 SCREW |
93560-55020 |
US $1.92 |
