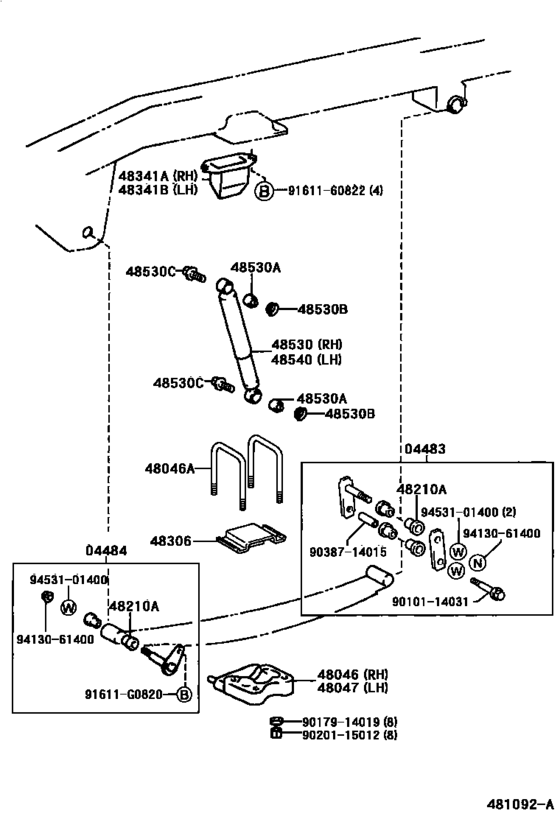

Rear Spring & Shock Absorber ([12.1999 - ] (9912- )) Diagram Toyota QUALIS
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- LF50
- grade
- GL
- ENGINE
- 2L
- Model
- QUALIS
- From
- 01.2002
- To
- 12.2004
- Vehicle Model
- QUALIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483
|
04483
04483-38010 Shackle Kit, Rear Spring[12.1999 -] LF50,RZF50 |
04483-38010 |
US $78.62 |
||
|
04484
|
04484
04484-27080
Pin Kit, Rear Spring
[12.1999 -] LF50,RZF50 |
04484-27080 |
— | ||
|
48046
|
48046
48046-0B050
Seat Sub-Assy, Spring U Bolt, Rh
[12.1999 -] LF50,RZF50 |
48046-0B050 |
— | ||
|
48046A
|
48046A
90117-14007 Bolt, U(For Rear Spring)[12.1999 -] LF50,RZF50 L=142 |
90117-14007 |
US $27.78 |
||
|
48047
|
48047
48047-0B010
Seat Sub-Assy, Spring U Bolt, Lh
[12.1999 -] LF50,RZF50 |
48047-0B010 |
— | ||
|
48210A
|
48210A
90385-18046 Bush(For Front Spring Shackle)[12.1999 -] LF50,RZF50 |
90385-18046 |
from US $2.15 |
||
|
48306
|
48306
48306-0B010
Bumper Sub-Assy, Rear Spring
[12.1999 -] LF50,RZF50 |
48306-0B010 |
— | ||
|
48341A
|
48341A
48341-0B050
Bumper, Rear Spring, No.1 Rh
[12.1999 -] LF50,RZF50 |
48341-0B050 |
— | ||
|
48341B
|
48341B
48341-0B050
Bumper, Rear Spring, No.1 Rh
[12.1999 -] LF50,RZF50 |
48341-0B050 |
— | ||
|
48530
|
48530
48531-0B060
Absorber Assy, Shock, Rear Rh
[12.1999 -] LF50,RZF50 |
48531-0B060 |
— | ||
|
48530A
|
48530A
90385-16004 Cushion, Front Shock Absorber[12.1999 -] LF50,RZF50 |
90385-16004 |
from US $3.32 |
||
|
48530B
|
48530B
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[12.1999 -] LF50,RZF50 |
90948-03004 |
from US $1.42 |
||
|
48530C
|
48530C
90119-10355 Washer, Rear Shock Absorber Cushion, No.2[12.1999 -] LF50,RZF50 |
90119-10355 |
US $3.84 |
||
|
48540
|
48540
48531-0B060
Absorber Assy, Shock, Rear Rh
[12.1999 -] LF50,RZF50 |
48531-0B060 |
— | ||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.25 |
||
|
9010114031
|
9010114031
90101-14031 New Genuine Part |
90101-14031 |
US $7.86 |
||
|
9017914019
|
9017914019
90179-14019 Nut |
90179-14019 |
from US $1.40 |
||
|
9020115012
|
9020115012
90201-15012 Washer(For Rear Spring U Bolt) |
90201-15012 |
from US $1.21 |
||
|
9038714015
|
9038714015
90387-14015 New Genuine Part |
90387-14015 |
US $6.84 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.50 |
||
|
9413061400
|
9413061400
94130-61400 Nut, Lock |
94130-61400 |
US $1.60 |
||
|
9453101400
|
9453101400
94531-01400 New Genuine Part |
94531-01400 |
US $0.87 |
