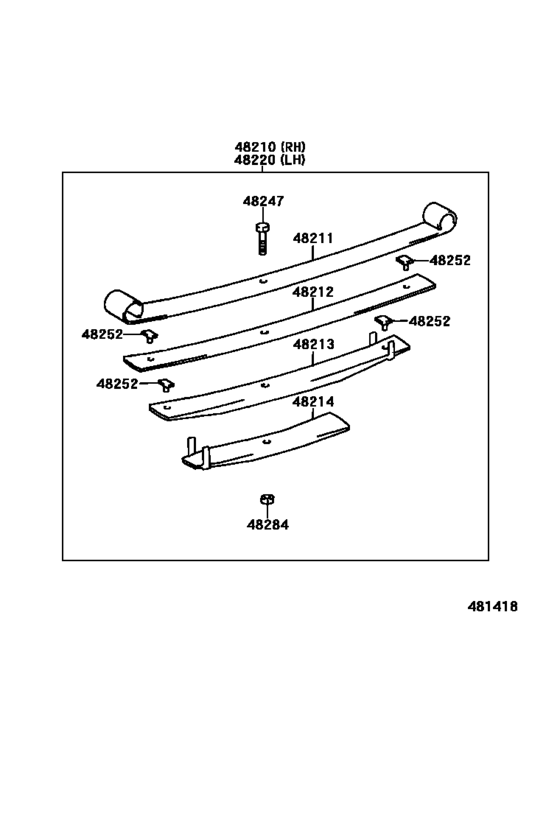

Rear Spring & Shock Absorber ([06.2001 - ] 4-LEAF (0106- )LF50) Diagram Toyota QUALIS
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- LF50
- grade
- GL
- ENGINE
- 2L
- Model
- QUALIS
- From
- 01.2002
- To
- 12.2004
- Vehicle Model
- QUALIS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-0B260
Spring Assy, Rear Rh
[06.2001 - 12.2004] LF50 4-LEAF |
48210-0B260 |
— | ||
|
48211
|
48211
48211-0B240
Leaf, Rear Spring, No.1
[06.2001 - 12.2004] LF50 |
48211-0B240 |
— | ||
|
48212
|
48212
48212-0B240
Leaf, Rear Spring, No.2
[06.2001 - 12.2004] LF50 |
48212-0B240 |
— | ||
|
48213
|
48213
48202-0B260
Leaf, Rear Spring, No.3
[06.2001 - 12.2004] LF50 |
48202-0B260 |
— | ||
|
48214
|
48214
48203-0B240
Leaf, Rear Spring, No.4
[06.2001 - 12.2004] LF50 |
48203-0B240 |
— | ||
|
48220
|
48220
48220-0B040
Spring Assy, Rear Lh
[06.2001 - 12.2004] LF50 4-LEAF |
48220-0B040 |
— | ||
|
48247
|
48247
48247-0B240
Bolt, Rear Spring, Center
[06.2001 - 12.2004] LF50 |
48247-0B240 |
— | ||
|
48252
|
48252
48252-0B240
Silencer, Rear Spring
[06.2001 - 12.2004] LF50 |
48252-0B240 |
— | ||
|
48284
|
48284
48284-0B240
Nut, Rear Spring Center Bolt
[06.2001 - 12.2004] LF50,RZF50 |
48284-0B240 |
— |
