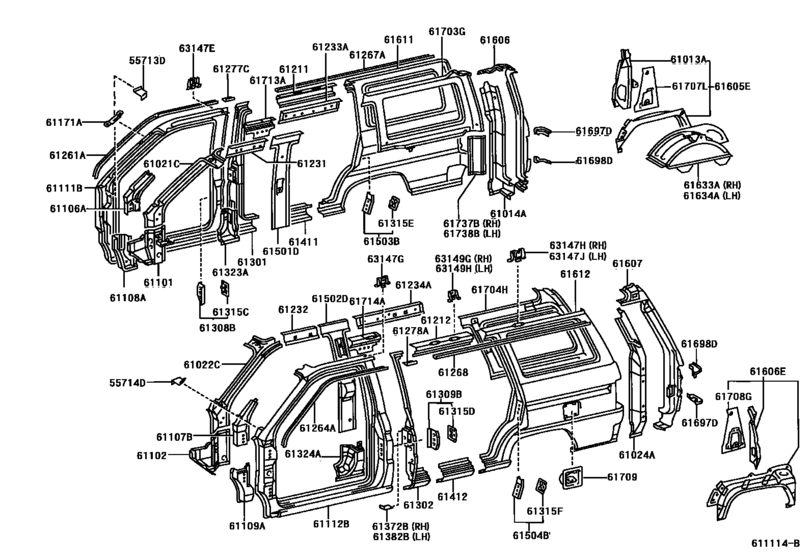

Side Member ([12.1999 - ] (9912- )) Diagram Toyota QUALIS
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- LF50
- grade
- GL
- ENGINE
- 2L
- Model
- QUALIS
- From
- 01.2002
- To
- 12.2004
- Vehicle Model
- QUALIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55713D
|
55713D
55723-0B010
Reinforcement, Cowl Top Side, Rh
[08.2000 -] LF50,RZF50 |
55723-0B010 |
— | ||
|
55714D
|
55714D
55724-0B010
Reinforcement, Cowl Top Side, Lh
[08.2000 -] LF50,RZF50 |
55724-0B010 |
— | ||
|
61013A
|
61013A
61013-0B020
Pillar Sub-Assy, No.3 Rh
[01.2002 - 09.2002] LF50,RZF50..GL |
61013-0B020 |
— | ||
|
61014A
|
61014A
61014-0B010
Pillar Sub-Assy, No.4 Rh
[12.1999 - 09.2002] LF50,RZF50 |
61014-0B010 |
— | ||
|
61014A
|
61014A
61014-0B020
Pillar Sub-Assy, No.4 Rh
[09.2002 -] LF50,RZF50 |
61014-0B020 |
— | ||
|
61021C
|
61021C
61021-0B010
Pillar Sub-Assy, Front Body, Rh
[12.1999 -] LF50,RZF50 |
61021-0B010 |
— | ||
|
61022C
|
61022C
61022-0B010
Pillar Sub-Assy, Front Body, Lh
[12.1999 -] LF50,RZF50 |
61022-0B010 |
— | ||
|
61024A
|
61024A
61024-0B050
Pillar Sub-Assy, No.4 Lh
[12.1999 - 09.2002] LF50,RZF50 |
61024-0B050 |
— | ||
|
61024A
|
61024A
61024-0B120
Pillar Sub-Assy, No.4 Lh
[09.2002 -] LF50,RZF50 |
61024-0B120 |
— | ||
|
61101
|
61101
61101-0B030
Panel Sub-Assy, Cowl Side, Rh
[12.1999 - 09.2002] LF50,RZF50 |
61101-0B030 |
— | ||
|
61101
|
61101
61101-0B080
Panel Sub-Assy, Cowl Side, Rh
[09.2002 -] LF50,RZF50 |
61101-0B080 |
— | ||
|
61102
|
61102
61102-0B030
Panel Sub-Assy, Cowl Side, Lh
[12.1999 - 09.2002] LF50,RZF50 |
61102-0B030 |
— | ||
|
61102
|
61102
61102-0B080
Panel Sub-Assy, Cowl Side, Lh
[09.2002 -] LF50,RZF50 |
61102-0B080 |
— | ||
|
61106A
|
61106A
61106-0B020
Reinforce Sub-Assy, Front Body Pillar, Upper Rh
[12.1999 -] LF50,RZF50 |
61106-0B020 |
— | ||
|
61107B
|
61107B
61107-0B020
Reinforce Sub-Assy, Front Body Pillar, Upper Lh
[12.1999 -] LF50,RZF50 |
61107-0B020 |
— | ||
|
61108A
|
61108A
61108-0B020
Reinforce Sub-Assy, Front Body Pillar, Lower Rh
[12.1999 -] LF50,RZF50 |
61108-0B020 |
— | ||
|
61109A
|
61109A
61109-0B020
Reinforce Sub-Assy, Front Body Pillar, Lower Lh
[12.1999 -] LF50,RZF50 |
61109-0B020 |
— | ||
|
61111B
|
61111B
61111-0B030
Panel, No.1 Side, Rh
[12.1999 -] LF50,RZF50 |
61111-0B030 |
— | ||
|
61112B
|
61112B
61112-0B030
Panel, No.2 Side, Rh
[12.1999 -] LF50,RZF50 |
61112-0B030 |
— | ||
|
61171A
|
61171A
61171-20020 Bracket, Antenna Pole Mounting[12.1999 -] LF50,RZF50 |
61171-20020 |
US $2.91 |
||
|
61211
|
61211
61211-0B020
Rail, Roof Side, Outer Rh
[12.1999 -] LF50,RZF50 |
61211-0B020 |
— | ||
|
61212
|
61212
61212-0B020
Rail, Roof Side, Outer Lh
[12.1999 -] LF50,RZF50 |
61212-0B020 |
— | ||
|
61231
|
61231
61231-0B050
Rail, Roof Side, Inner Rh
[12.1999 -] LF50,RZF50 |
61231-0B050 |
— | ||
|
61232
|
61232
61232-0B050
Rail, Roof Side, Inner Lh
[12.1999 -] LF50,RZF50 |
61232-0B050 |
— | ||
|
61233A
|
61233A
61233-0B040
Rail, Roof Side, Inner No.2 Rh
[12.1999 -] LF50,RZF50 |
61233-0B040 |
— | ||
|
61234A
|
61234A
61234-0B040
Rail, Roof Side, Inner No.2 Lh
[12.1999 -] LF50,RZF50 |
61234-0B040 |
— | ||
|
61261A
|
61261A
61263-0B060
Channel, Roof Drip Side, Front Rh
[12.1999 -] LF50,RZF50 |
61263-0B060 |
— | ||
|
61264A
|
61264A
61264-0B060
Channel, Roof Drip Side, Front Lh
[12.1999 -] LF50,RZF50 |
61264-0B060 |
— | ||
|
61267A
|
61267A
61267-0B030
Channel, Roof Drip Side, Rear Rh
[12.1999 -] LF50,RZF50 |
61267-0B030 |
— | ||
|
61268
|
61268
61268-0B030
Channel, Roof Drip Side, Rear Lh
[12.1999 -] LF50,RZF50 |
61268-0B030 |
— | ||
|
61277C
|
61277C
61277-90K00 Joint, Roof Drip Channel[12.1999 -] LF50,RZF50 |
61277-90K00 |
from US $8.72 |
||
|
61278A
|
61278A
61277-90K00 Joint, Roof Drip Channel[12.1999 -] LF50,RZF50 |
61277-90K00 |
from US $8.72 |
||
|
61301
|
61301
61301-0B080
Pillar Sub-Assy, Center Body, Rh
[12.1999 -] LF50,RZF50 |
61301-0B080 |
— | ||
|
61302
|
61302
61302-0B080
Pillar Sub-Assy, Center Body, Lh
[12.1999 -] LF50,RZF50 |
61302-0B080 |
— | ||
|
61308B
|
61308B
61308-0B100
Retainer Sub-Assy, Door Lock Striker, Rh
[12.1999 -] LF50,RZF50 |
61308-0B100 |
— | ||
|
61309B
|
61309B
61309-0B010
Retainer Sub-Assy, Door Lock Striker, Lh
[12.1999 -] LF50,RZF50 |
61309-0B010 |
— | ||
|
61315C
|
61315C
61315-22020 Retainer, Door Lock Striker Plate[12.1999 -] LF50,RZF50 |
61315-22020 |
US $18.64 |
||
|
61315D
|
61315D
61315-22020 Retainer, Door Lock Striker Plate[12.1999 -] LF50,RZF50 |
61315-22020 |
US $18.64 |
||
|
61315E
|
61315E
61315-22020 Retainer, Door Lock Striker Plate[12.1999 -] LF50,RZF50 |
61315-22020 |
US $18.64 |
||
|
61315F
|
61315F
61315-22020 Retainer, Door Lock Striker Plate[12.1999 -] LF50,RZF50 |
61315-22020 |
US $18.64 |
||
|
61323A
|
61323A
61323-0B020
Reinforcement, Center Body Pillar, Lower Rh
[12.1999 -] LF50,RZF50 |
61323-0B020 |
— | ||
|
61324A
|
61324A
61324-0B020
Reinforcement, Center Body Pillar, Lower Lh
[12.1999 -] LF50,RZF50 |
61324-0B020 |
— | ||
|
61372B
|
61372B
61372-0B010
Reinforce, Center Pillar Upper Hinge, No.2 Rh
[12.1999 -] LF50,RZF50 |
61372-0B010 |
— | ||
|
61382B
|
61382B
61382-0B010
Reinforce, Center Pillar Upper Hinge, No.2 Lh
[12.1999 -] LF50,RZF50 |
61382-0B010 |
— | ||
|
61411
|
61411
61411-0B050
Panel, Rocker, Outer Rh
[12.1999 -] LF50,RZF50 |
61411-0B050 |
— | ||
|
61412
|
61412
61411-0B050
Panel, Rocker, Outer Rh
[12.1999 -] LF50,RZF50 |
61411-0B050 |
— | ||
|
61501D
|
61501D
61501-0B020
Pillar Sub-Assy, Cab Rear, Rh
[12.1999 -] LF50,RZF50 |
61501-0B020 |
— | ||
|
61502D
|
61502D
61502-0B020
Pillar Sub-Assy, Cab Rear, Lh
[12.1999 -] LF50,RZF50 |
61502-0B020 |
— | ||
|
61503B
|
61503B
61503-0B020
Reinforcement Sub-Assy, Quarter Lock Pillar, Rh
[12.1999 -] LF50,RZF50 |
61503-0B020 |
— | ||
|
61504B
|
61504B
61504-0B010
Reinforcement Sub-Assy, Quarter Lock Pillar, Lh
[12.1999 -] LF50,RZF50 |
61504-0B010 |
— | ||
|
61605E
|
61605E
61605-0B060
Panel, Quarter, Rh
[01.2002 - 09.2002] LF50,RZF50..GL |
61605-0B060 |
— | ||
|
61606
|
61606
61705-0B040
Frame Sub-Assy, Back Door Opening Side, Rh
[12.1999 - 09.2002] LF50,RZF50 |
61705-0B040 |
— | ||
|
61606
|
61606
61705-0B060
Frame Sub-Assy, Back Door Opening Side, Rh
[09.2002 -] LF50,RZF50 |
61705-0B060 |
— | ||
|
61606E
|
61606E
61606-0B060
Panel, Quarter, Lh
[01.2002 - 09.2002] LF50,RZF50..GL |
61606-0B060 |
— | ||
|
61607
|
61607
61706-0B040
Frame Sub-Assy, Back Door Opening Side, Lh
[12.1999 - 09.2002] LF50,RZF50 |
61706-0B040 |
— | ||
|
61607
|
61607
61706-0B060
Frame Sub-Assy, Back Door Opening Side, Lh
[09.2002 -] LF50,RZF50 |
61706-0B060 |
— | ||
|
61611
|
61611
61611-0B100
Panel, Quarter, Rh
[12.1999 - 09.2002] LF50,RZF50..DLX,GL |
61611-0B100 |
— | ||
|
61611
|
61611
61611-0B180
Panel, Quarter, Rh
[09.2002 -] LF50,RZF50..DLX,GL |
61611-0B180 |
— | ||
|
61612
|
61612
61612-0B100
Panel, Quarter, Lh
[12.1999 - 09.2002] LF50,RZF50..DLX,GL |
61612-0B100 |
— | ||
|
61612
|
61612
61612-0B200
Panel, Quarter, Lh
[09.2002 -] LF50,RZF50..DLX,GL |
61612-0B200 |
— | ||
|
61633A
|
61633A
61607-0B100
Panel, Quarter Wheel House, Inner Rh
[12.2000 -] LF50,RZF50..DLX,GL |
61607-0B100 |
— | ||
|
61634A
|
61634A
61608-0B100
Panel, Quarter Wheel House, Inner Lh
[12.2000 -] LF50,RZF50..DLX,GL |
61608-0B100 |
— | ||
|
61697D
|
61697D
61697-0B010
Housing, Quarter Panel End, Rh
[12.1999 -] LF50,RZF50 |
61697-0B010 |
— | ||
|
61698D
|
61698D
61698-0B010
Housing, Quarter Panel End, Lh
[12.1999 -] LF50,RZF50 |
61698-0B010 |
— | ||
|
61703G
|
61703G
61703-0B080
Panel Sub-Assy, Quarter, Inner Rh
[01.2002 - 09.2002] LF50,RZF50..GL |
61703-0B080 |
— | ||
|
61704H
|
61704H
61704-0B070
Panel Sub-Assy, Quarter, Inner Lh
[01.2002 - 09.2002] LF50,RZF50..GL |
61704-0B070 |
— | ||
|
61707L
|
61707L
61707-0B030
Panel Sub-Assy, Roof Side, Inner Front Rh
[12.1999 -] LF50,RZF50 |
61707-0B030 |
— | ||
|
61708G
|
61708G
61708-0B030
Panel Sub-Assy, Roof Side, Inner Front Lh
[12.1999 -] LF50,RZF50 |
61708-0B030 |
— | ||
|
61709
|
61709
61709-0B030
Box Sub-Assy, Fuel Inlet
[12.1999 - 09.2002] LF50,RZF50 |
61709-0B030 |
— | ||
|
61713A
|
61713A
61713-0B020
Extension, Roof Side, Outer Rh
[12.1999 -] LF50,RZF50 |
61713-0B020 |
— | ||
|
61714A
|
61714A
61714-0B020
Extension, Roof Side, Outer Lh
[12.1999 -] LF50,RZF50 |
61714-0B020 |
— | ||
|
61737B
|
61737B
61737-0B020
Panel, Roof Side, Inner Lower Rh
[12.1999 -] LF50,RZF50 |
61737-0B020 |
— | ||
|
61738B
|
61738B
61738-0B020
Panel, Roof Side, Inner Lower Lh
[12.1999 -] LF50,RZF50 |
61738-0B020 |
— | ||
|
63147E
|
63147E
63147-0B020
Bracket, Roof Panel Reinforcement
[12.1999 -] LF50,RZF50 |
63147-0B020 |
— | ||
|
63147G
|
63147G
63147-0B020
Bracket, Roof Panel Reinforcement
[12.1999 -] LF50,RZF50 |
63147-0B020 |
— | ||
|
63147H
|
63147H
63147-0B020
Bracket, Roof Panel Reinforcement
[12.1999 -] LF50,RZF50 |
63147-0B020 |
— | ||
|
63147J
|
63147J
63147-0B020
Bracket, Roof Panel Reinforcement
[12.1999 -] LF50,RZF50 |
63147-0B020 |
— | ||
|
63149G
|
63149G
63149-0B010
Bracket, Roof Panel Reinforcement, Rear Rh
[12.1999 -] LF50,RZF50 |
63149-0B010 |
— | ||
|
63149H
|
63149H
63149-0B010
Bracket, Roof Panel Reinforcement, Rear Rh
[12.1999 -] LF50,RZF50 |
63149-0B010 |
— |
