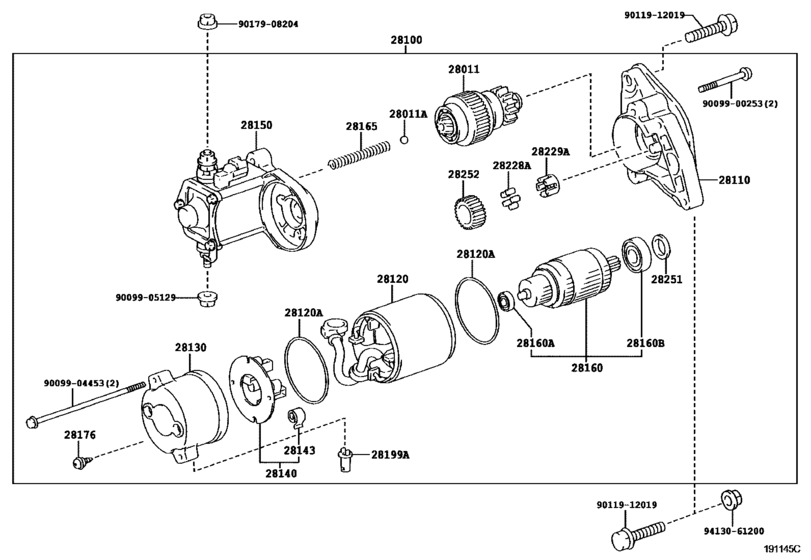

Starter ([12.1999 - ] 12V 2.0KW (9912- )2L) Diagram Toyota QUALIS
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- LF50
- grade
- GL
- ENGINE
- 2L
- Model
- QUALIS
- From
- 01.2002
- To
- 12.2004
- Vehicle Model
- QUALIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-YE010
Clutch Sub-Assy, Starter
[12.1999 - 12.2004] 2L..LF50 |
28011-YE010 |
— | ||
| replacements | |||||
|
28011
|
28011
28011-54380 Clutch Sub-Assy, Starter[12.1999 - 12.2004] 2L..LF50 |
28011-54380 |
US $363.42 |
||
|
28011
|
28011
28110-54380 Housing Assy, Starter Drive[12.1999 - 12.2004] 2L..LF50 |
28110-54380 |
US $90.27 |
||
|
28011A
|
28011A
90099-12009
Ball, Starter Clutch
[12.1999 - 12.2004] 2L..LF50 |
90099-12009 |
— | ||
|
28100
|
28100
28100-05050
Starter Assy
[12.1999 - 12.2004] 2L..LF50 12V, 2.0KW |
28100-05050 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-54280 Starter Assy[12.1999 - 12.2004] 2L..LF50 12V, 2.0KW |
28100-54280 |
US $1,820 |
||
|
28110
|
28110
28110-YE010
Housing Assy, Starter Drive
[12.1999 - 12.2004] 2L..LF50 |
28110-YE010 |
— | ||
| replacements | |||||
|
28110
|
28110
28011-54380 Clutch Sub-Assy, Starter[12.1999 - 12.2004] 2L..LF50 |
28011-54380 |
US $363.42 |
||
|
28110
|
28110
28110-54380 Housing Assy, Starter Drive[12.1999 - 12.2004] 2L..LF50 |
28110-54380 |
US $90.27 |
||
|
28120
|
28120
28120-YE010
Yoke Assy, Starter
[12.1999 - 12.2004] 2L..LF50 |
28120-YE010 |
— | ||
|
28120A
|
28120A
90099-14064 Rubber(For Starter Yoke)[12.1999 - 12.2004] 2L..LF50 |
90099-14064 |
from US $3.67 |
||
|
28130
|
28130
28130-54380
Frame Assy, Starter Commutator End
[12.1999 - 12.2004] 2L..LF50 |
28130-54380 |
— | ||
|
28140
|
28140
28140-54380 Holder Assy, Starter Brush[12.1999 - 12.2004] 2L..LF50 |
28140-54380 |
from US $53.46 |
||
|
28143
|
28143
28143-54380
Spring, Starter Brush
[12.1999 - 12.2004] 2L..LF50 |
28143-54380 |
— | ||
|
28150
|
28150
28150-05050
Switch Assy, Magnet Starter
[12.1999 - 12.2004] 2L..LF50 |
28150-05050 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-55060 Switch Assy, Magnet Starter[12.1999 - 12.2004] 2L..LF50 |
28150-55060 |
US $285.38 |
||
|
28160
|
28160
28160-54380
Armature Assy, Starter
[12.1999 - 12.2004] 2L..LF50 |
28160-54380 |
— | ||
|
28160A
|
28160A
90099-10208 Bearing, Starter Armature[12.1999 - 12.2004] 2L..LF50 |
90099-10208 |
US $9.59 |
||
|
28160B
|
28160B
90099-10197 Bearing, Starter Armature[12.1999 - 12.2004] 2L..LF50 |
90099-10197 |
US $7.34 |
||
|
28165
|
28165
28165-76070
Spring, Starter Magnet Switch Return
[12.1999 - 12.2004] 2L..LF50 |
28165-76070 |
— | ||
|
28176
|
28176
90099-00271
Screw, Starter
[12.1999 - 12.2004] 2L..LF50 |
90099-00271 |
— | ||
|
28199A
|
28199A
28199-74110 Cover, Starter End Frame[12.1999 - 12.2004] 2L..LF50 |
28199-74110 |
US $2.97 |
||
|
28228A
|
28228A
28228-26040
Roller, Starter Idle Gear Clutch
[12.1999 - 12.2004] 2L..LF50 |
28228-26040 |
— | ||
|
28229A
|
28229A
28229-74070 Retainer, Starter Idle Gear[12.1999 - 12.2004] 2L..LF50 |
28229-74070 |
US $1.50 |
||
|
28251
|
28251
28254-54380
Pinion, Starter Drive
[12.1999 - 12.2004] 2L..LF50 |
28254-54380 |
— | ||
|
28252
|
28252
28254-64130
Pinion, Starter Drive
[12.1999 - 12.2004] 2L..LF50 |
28254-64130 |
— | ||
|
9009900253
|
9009900253
90099-00253
New Genuine Part
|
90099-00253 |
— | ||
|
9009904453
|
9009904453
90099-04453
New Genuine Part
|
90099-04453 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9011912019
|
9011912019
90119-12019 Bolt(For Transaxle & Engine Setting) |
90119-12019 |
US $2.80 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
