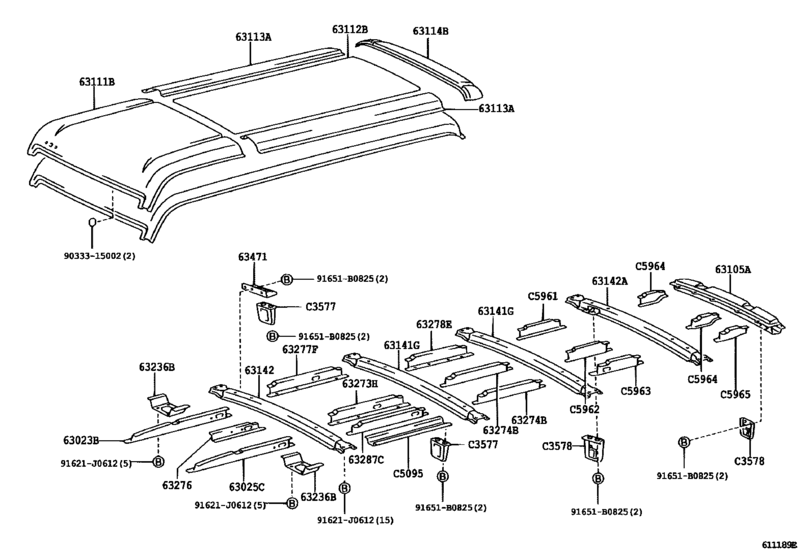

Roof Panel & Back Panel ([08.1999 - 06.2002] ｱﾘ(ﾊﾝｶﾞ-ﾚ-ﾙ) (9908-0206)BU280..D) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- BU280
- grade
- D
- ENGINE
- 4B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 08.1999
- To
- 06.2004
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63023B
|
63023B
63023-37010 Strength Sub-Assy, Roof Panel, Center No.2[08.1999 - 06.2004] RZU280..D;BU28#..DSL |
63023-37010 |
US $24.46 |
||
|
63025C
|
63025C
63025-37010 Strength Sub-Assy, Roof Panel, Center No.6[08.1999 - 06.2004] RZU280..D;BU28#..DSL |
63025-37010 |
US $25.04 |
||
|
63105A
|
63105A
63105-37011 Frame Sub-Assy, Back Door Opening[08.1999 - 06.2004] RZU280..D;BU28#..DSL |
63105-37011 |
US $209.66 |
||
|
63105A
|
63105A
C3709-40010 Frame Sub-Assy, Back Door Opening[08.1999 - 06.2002] BU280..D..DSL ｱﾘ(ﾊﾝｶﾞ-ﾚ-ﾙ) |
C3709-40010 |
US $254.80 |
||
|
63111B
|
63111B
63014-37010 Panel, Roof, No.1[06.2003 - 06.2004] BU28#;RZU280..D ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
63014-37010 |
US $330.51 |
||
|
63111B
|
63111B
63014-37020 Panel, Roof, No.1[06.2003 - 06.2004] BU280..D |
63014-37020 |
US $329.06 |
||
|
63111B
|
63111B
63111-37210 Panel, Roof, No.1[06.2002 - 06.2003] BU280..D..DSL ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
63111-37210 |
US $327.60 |
||
| replacement | |||||
|
63111B
|
63111B
63014-37010 Panel, Roof, No.1[06.2002 - 06.2003] BU280..D..DSL ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
63014-37010 |
US $330.51 |
||
|
63111B
|
63111B
63111-37220 Panel, Roof, No.1[08.1999 - 06.2003] BU280,LY228,270..D..DSL |
63111-37220 |
US $327.60 |
||
| replacement | |||||
|
63111B
|
63111B
63014-37020 Panel, Roof, No.1[08.1999 - 06.2003] BU280,LY228,270..D..DSL |
63014-37020 |
US $329.06 |
||
|
63112B
|
63112B
63112-37050 Panel, Roof, Rear[08.1999 - 06.2004] RZU280..D;BU280..DSL |
63112-37050 |
US $1,674.40 |
||
|
63113A
|
63113A
63113-37030 Panel, Roof, No.3[08.1999 - 06.2004] RZU280..D;BU280..DSL |
63113-37030 |
US $171.81 |
||
|
63114B
|
63114B
63115-37010 Panel, Roof, No.4[08.1999 - 06.2004] RZU280..D;BU28#..DSL |
63115-37010 |
US $104.83 |
||
|
63141G
|
63141G
63103-37060 Reinforcement, Roof Panel, No.1[08.1999 - 06.2004] RZU280..D;BU280..DSL |
63103-37060 |
US $90.27 |
||
|
63142
|
63142
63104-37020 Reinforcement, Roof Panel, No.2[08.1999 - 06.2004] BU280..DSL ｱﾘ(ﾙ-ﾑ ｾﾊﾟﾚ-ﾀ = ｽﾗｲﾄﾞ ﾀｲﾌﾟ) |
63104-37020 |
US $91.73 |
||
|
63142
|
63142
63104-37030 Reinforcement, Roof Panel, No.2[08.1999 - 06.2004] BU280..D..DSL |
63104-37030 |
US $110.66 |
||
|
63142
|
63142
63104-37040 Reinforcement, Roof Panel, No.2[08.1999 - 06.2002] BU280..D..DSL ｱﾘ(ﾊﾝｶﾞ-ﾚ-ﾙ) |
63104-37040 |
US $109.20 |
||
|
63142A
|
63142A
63104-37050 Reinforcement, Roof Panel, No.2[08.1999 - 06.2002] BU280..D..DSL |
63104-37050 |
US $109.20 |
||
|
63236B
|
63236B
63236-37010 Bracket, Room Speaker[08.1999 - 06.2004] RZU280..D;BU28#..DSL |
63236-37010 |
US $22.71 |
||
|
63273H
|
63273H
63273-37010 Strength, Roof Panel, No.3[08.1999 - 06.2004] RZU280..D;BU28#..DSL |
63273-37010 |
US $43.53 |
||
|
63274B
|
63274B
63274-37010 Strength, Roof Panel, No.4 Rh[08.1999 - 06.2004] RZU280..D;BU28#..DSL |
63274-37010 |
US $39.89 |
||
|
63276
|
63276
63276-37010 Holder, Removable Roof Hinge, Lh[08.1999 - 06.2004] RZU280..D;BU28#..DSL |
63276-37010 |
US $25.33 |
||
|
63277F
|
63277F
63277-37010 Strength, Roof Panel, No.7 Rh[08.1999 - 06.2004] RZU280..D;BU28#..DSL |
63277-37010 |
US $43.97 |
||
|
63278E
|
63278E
63278-37010 Strength, Roof Panel, No.8 Rh[08.1999 - 06.2004] RZU280..D;BU28#..DSL |
63278-37010 |
US $47.90 |
||
|
63287C
|
63287C
63287-37010 Strength, Roof Panel, No.7 Lh[08.1999 - 06.2004] RZU280..D;BU28#..DSL |
63287-37010 |
US $43.53 |
||
|
63471
|
63471
63471-37030 Support, Roof Rack, Front[08.1999 - 06.2002] BU280..D |
63471-37030 |
US $24.75 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.88 |
||
|
9033315002
|
9033315002
90333-15002 PLUG |
90333-15002 |
from US $1.44 |
||
|
C3577
|
C3577
C3577-40010 Bracket, Side Rail[08.1999 - 06.2002] BU280..D 右側 |
C3577-40010 |
US $41.35 |
||
|
C3577
|
C3577
C3578-40010 Bracket, Side Rail[08.1999 - 06.2002] BU280..D 左側 |
C3578-40010 |
US $43.10 |
||
|
C3578
|
C3578
63434-37010 Bracket, Side Rail, No.2[08.1999 - 06.2002] BU280..D 左側 |
63434-37010 |
US $38.58 |
||
|
C3578
|
C3578
C3578-40010 Bracket, Side Rail[08.1999 - 06.2002] BU280..D 右側 |
C3578-40010 |
US $43.10 |
||
|
C5095
|
C5095
C5095-40010 Strength Sub-Assy, Roof, No.1[08.1999 - 06.2002] BU280..D..DSL |
C5095-40010 |
US $126.67 |
||
|
C5961
|
C5961
C5962-40010 Strength, Roof, No.1[08.1999 - 06.2002] BU280..D..DSL |
C5962-40010 |
US $28.10 |
||
|
C5962
|
C5962
C5962-40010 Strength, Roof, No.1[08.1999 - 06.2002] BU280..D..DSL |
C5962-40010 |
US $28.10 |
||
|
C5963
|
C5963
C5963-40010 Strength, Roof, No.3[08.1999 - 06.2002] BU280..D..DSL |
C5963-40010 |
US $28.10 |
||
|
C5964
|
C5964
C5964-40010 Strength, Roof, No.4[08.1999 - 06.2002] BU280..D..DSL |
C5964-40010 |
US $18.64 |
||
|
C5965
|
C5965
C5965-40010 Strength, Roof, No.5[08.1999 - 06.2002] BU280..D..DSL |
C5965-40010 |
US $18.64 |
||
