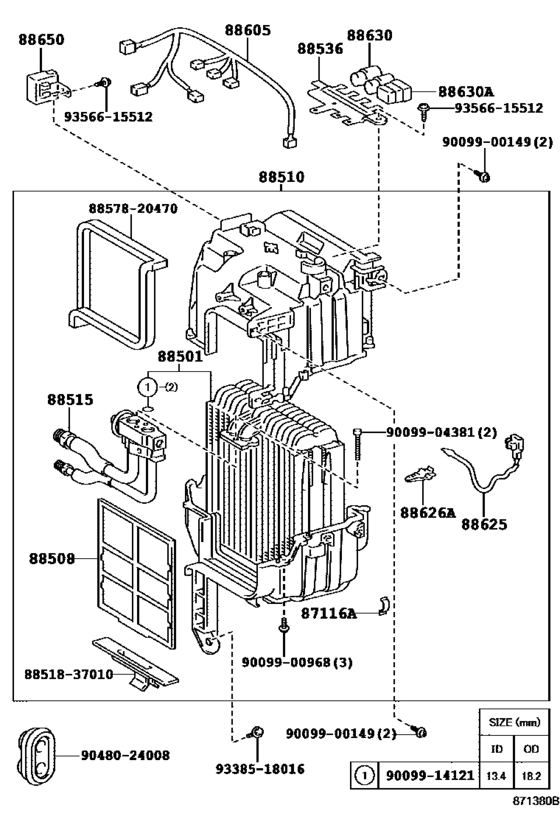

Heating & Air Conditioning - Cooler Unit ([05.1995 - ] (9505- )BU68..D) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- D
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[05.1995 -] BU68,RZU68 |
87116-14010 |
— | ||
|
88501
|
88501
88501-35020
Evaporator Sub-Assy, Cooler, No.1
[05.1995 -] BU68..D |
88501-35020 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-35021
Evaporator Sub-Assy, Cooler, No.1
[05.1995 -] BU68..D |
88501-35021 |
— | ||
|
88508
|
88508
88508-37020
Filter Sub-Assy, Clean Air
[05.1995 -] BU68,RZU68 |
88508-37020 |
— | ||
|
88510
|
88510
88510-25050
Unit Assy, Cooler
[05.1995 -] BU68..D |
88510-25050 |
— | ||
|
88515
|
88515
88515-20100
Valve, Cooler Expansion
[05.1995 -] BU68,RZU68 |
88515-20100 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-22240 Valve, Cooler Expansion[05.1995 -] BU68,RZU68 |
88515-22240 |
from US $122.53 |
||
|
88536
|
88536
88688-37240
Bracket, Cooling Unit, No.1
[05.1995 -] BU68,RZU68 |
88688-37240 |
— | ||
|
88605
|
88605
88605-25090
Harness Sub-Assy, Cooler Wiring, No.1
[05.1995 -] BU68 |
88605-25090 |
— | ||
|
88625
|
88625
88625-3A020
Thermistor, Cooler, No.1
[05.1995 -] BU68,RZU68 |
88625-3A020 |
— | ||
| replacement | |||||
|
88625
|
88625
88625-3A090 Thermistor, Cooler, No.1[05.1995 -] BU68,RZU68 |
88625-3A090 |
from US $13.45 |
||
|
88626A
|
88626A
88626-28010
Holder, Thermistor
[05.1995 -] BU68,RZU68 |
88626-28010 |
— | ||
|
88630
|
88630
88630-37060
Relay Assy, Cooler
[05.1995 -] BU68..D |
88630-37060 |
— | ||
|
88630A
|
88630A
88630-25040
Relay Assy, Cooler
[05.1995 -] BU68 |
88630-25040 |
— | ||
|
88650
|
88650
88650-37020
Amplifier Assy, Cooler Stabilizer
[05.1995 -] BU68 |
88650-37020 |
— | ||
|
8851837010
|
8851837010
88518-37010
Holder, Cooling Unit Door
|
88518-37010 |
— | ||
|
8857820470
|
8857820470
88578-20470
Packing, Cooling Unit, No.1
|
88578-20470 |
— | ||
|
9009900149
|
9009900149
90099-00149
New Genuine Part
|
90099-00149 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.80 |
||
|
9009904381
|
9009904381
90099-04381
BOLT
|
90099-04381 |
— | ||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.52 |
||
|
9048024008
|
9048024008
90480-24008
Grommet (For Cooler Unit)
|
90480-24008 |
— | ||
| replacement | |||||
|
9048024008
|
9048024008
90099-32137 Grommet (For Cooler Unit) |
90099-32137 |
US $4.54 |
||
|
9338518016
|
9338518016
93385-18016 New Genuine Part |
93385-18016 |
US $1.22 |
||
|
9356615512
|
9356615512
93566-15512
New Genuine Part
|
93566-15512 |
— | ||
| replacement | |||||
|
9356615512
|
9356615512
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
