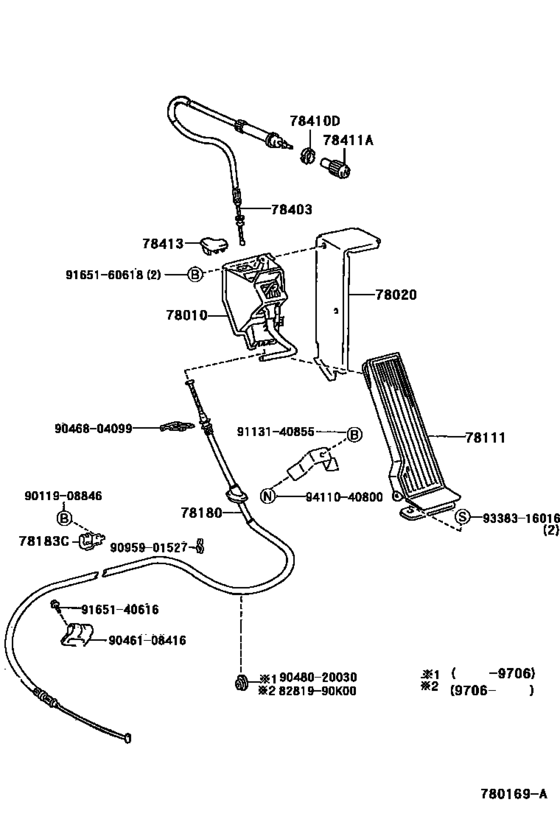

Accelerator Link ([05.1995 - ] (9505- )BU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010
|
78010
78202-95400 Link, Accelerator[05.1995 -] BU68 |
78202-95400 |
US $106.40 |
||
|
78020
|
78020
78114-25010 Bracket Assy, Accelerator Control[05.1995 -] BU68,RZU68 |
78114-25010 |
US $48.19 |
||
|
78111
|
78111
78110-95410 Pedal, Accelerator[05.1995 -] BU68,LH8#,LY15#,RZU68 |
78110-95410 |
from US $22.01 |
||
|
78180
|
78180
78150-25090 Wire Assy, Accelerator[05.1995 -] BU68 |
78150-25090 |
US $61.88 |
||
|
78183C
|
78183C
78183-37040 Clamp, Accelerator Control Cable[05.1995 -] BU68 |
78183-37040 |
US $4.95 |
||
|
78403
|
78403
78404-25020 Cable Sub-Assy, Throttle Control[05.1995 -] BU68,RZU68 |
78404-25020 |
US $25.77 |
||
|
78410D
|
78410D
78314-95010 Nut, Choke[05.1995 -] BU68,LH8#,LY15#,RZU68 |
78314-95010 |
from US $1.88 |
||
|
78411A
|
78411A
78411-22010 Knob, Throttle Cable[05.1995 -] BU68,LH8#,LY15#,RZU68 |
78411-22010 |
US $8.91 |
||
|
78413
|
78413
78413-95701 Cover, Throttle Control Cable[05.1995 -] BU68,LH8#,LY15#,RZU68 |
78413-95701 |
US $2.18 |
||
|
8281990K00
|
8281990K00
82819-90K00 Grommet, Wiring Harness |
82819-90K00 |
US $8.30 |
||
|
9011908846
|
9011908846
90119-08846 BOLT WWASHER |
90119-08846 |
US $1.25 |
||
|
9046108416
|
9046108416
90461-08416
New Genuine Part
|
90461-08416 |
— | ||
|
9046804099
|
9046804099
90468-04099 New Genuine Part |
90468-04099 |
US $1.22 |
||
|
9048020030
|
9048020030
90480-20030 Grommet(For Instrument Panel) |
90480-20030 |
US $2.18 |
||
|
9095901527
|
9095901527
90959-01527 New Genuine Part |
90959-01527 |
US $9.32 |
||
|
9113140855
|
9113140855
91131-40855 Bolt, Accelerator Pedal Stopper |
91131-40855 |
US $3.49 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165160618
|
9165160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.16 |
||
|
9338316016
|
9338316016
93383-16016 New Genuine Part |
93383-16016 |
US $1.65 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
