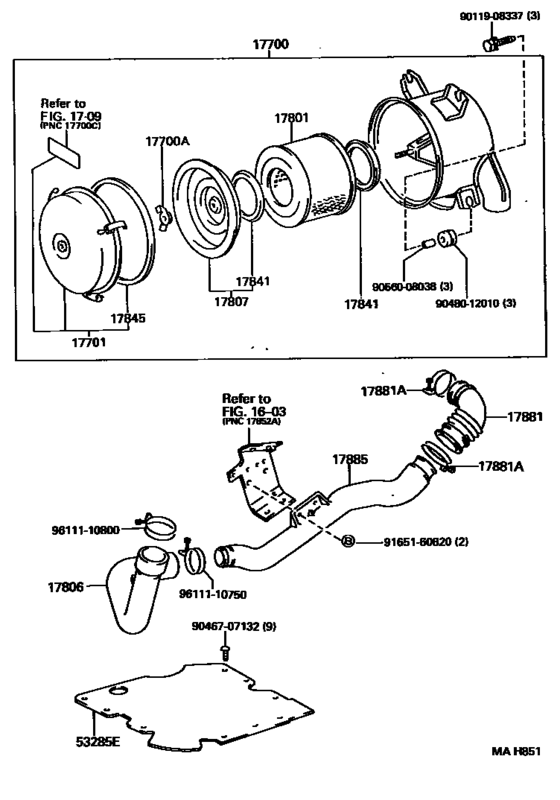

Air Cleaner ([05.1995 - ] (9505- )3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-54410 Cleaner Assy, Air[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
17700-54410 |
US $423.70 |
||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
90175-08008 |
from US $2.45 |
||
|
17701
|
17701
17701-54210
Case Sub-Assy, Air Cleaner
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
17701-54210 |
— | ||
|
17801
|
17801
17801-56020 Element Sub-Assy, Air Cleaner Filter[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
17801-56020 |
from US $33.72 |
||
|
17801
|
17801
17801-56050 Element Sub-Assy, Air Cleaner Filter[05.1995 -] 3B..BU68 TNF TYPE |
17801-56050 |
US $33.72 |
||
|
17806
|
17806
17886-58070 Pipe Sub-Assy, Air Cleaner, No.2[05.1995 -] 3B..BU68 |
17886-58070 |
US $151.42 |
||
|
17807
|
17807
17807-56011 Plate Sub-Assy, Air Cleaner Filter Set[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
17807-56011 |
US $40.07 |
||
|
17841
|
17841
17841-44030 Gasket, Filter Element[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
17841-44030 |
US $4.54 |
||
|
17845
|
17845
17845-56020 Gasket, Air Cleaner Cap[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
17845-56020 |
US $19.08 |
||
|
17881
|
17881
17881-58140 Hose, Air Cleaner, No.1[05.1995 -] 3B..BU68 |
17881-58140 |
US $55.91 |
||
|
17881A
|
17881A
96111-10690 Clamp, Hose[05.1995 -] 3B..BU68 ENGINE SIDE,ID=69 |
96111-10690 |
from US $2.87 |
||
|
17881A
|
17881A
96111-10850 Clamp, Hose(For Air Connector)[05.1995 -] 3L,5L..LH8#,LY15# PIPE SIDE,ID=85; 3B..BU68 PIPE SIDE,ID=85 |
96111-10850 |
from US $4.01 |
||
|
17885
|
17885
17885-58250 Pipe, Air Cleaner[05.1995 -] 3B..BU68 |
17885-58250 |
US $100.46 |
||
|
53285E
|
53285E
53285-25010 Guard, Cool Air[05.1995 -] BU68 |
53285-25010 |
US $46.30 |
||
|
9011908337
|
9011908337
90119-08337 New Genuine Part |
90119-08337 |
US $2.04 |
||
|
9046707132
|
9046707132
90467-07132 Clip |
90467-07132 |
from US $0.87 |
||
|
9048012010
|
9048012010
90480-12010
Washer, Seal(For Air Cleaner)
|
90480-12010 |
— | ||
|
9056008038
|
9056008038
90560-08038 Spacer(For Air Cleaner) |
90560-08038 |
US $1.16 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9611110750
|
9611110750
96111-10750 Clamp, Hose(For Air Cleaner Duct) |
96111-10750 |
from US $3.36 |
||
|
9611110800
|
9611110800
96111-10800 Clamp, Hose(For Air Cleaner Duct) |
96111-10800 |
from US $2.87 |
||
