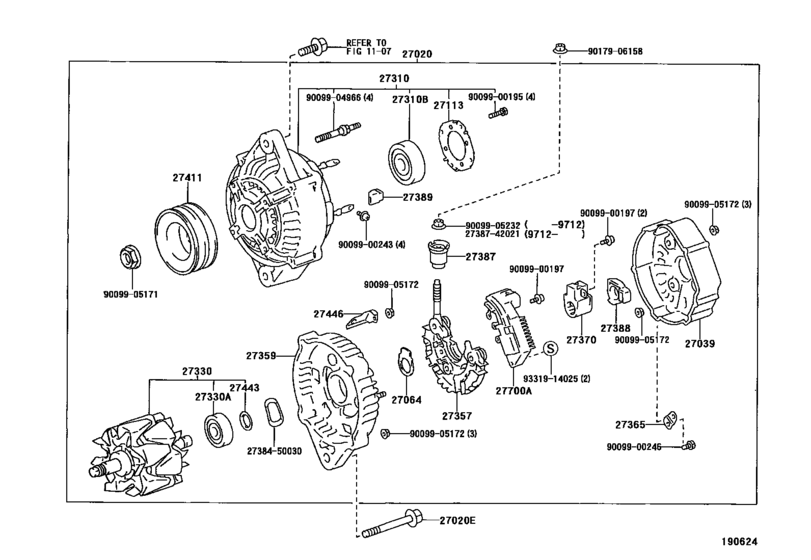

Alternator ([05.1995 - ] 24V 50A (9505- )3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-58300 Alternator Assy[05.1995 -] 3B..BU68..N ２４Ｖ ５０Ａ; 3B..BU68..D ２４Ｖ ５０Ａ,ｶﾝﾚｲﾁ ｼﾖｳ |
27060-58300 |
US $1,820 |
||
|
27020E
|
27020E
90105-10240
Bolt(For Alternator)
[05.1995 - 08.1997] 3B..BU68 |
90105-10240 |
— | ||
| replacement | |||||
|
27020E
|
27020E
90148-10001 Bolt(For Alternator)[05.1995 - 08.1997] 3B..BU68 |
90148-10001 |
US $0.79 |
||
|
27020E
|
27020E
90148-10001 Bolt(For Alternator)[08.1997 -] 3B..BU68 |
90148-10001 |
US $0.79 |
||
|
27039
|
27039
27039-50090
Cover, Alternator Rear End
[05.1995 -] 3B..BU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
27039-50090 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-17230
Cover, Alternator Rear End
[05.1995 -] 3B..BU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
27039-17230 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[05.1995 -] 3B,3RZFP..BU68,RZU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
27064-42010 |
US $2.10 |
||
|
27113
|
27113
27312-42010
Plate, Bearing Retainer, Alternator
[05.1995 -] 3B..BU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
27312-42010 |
— | ||
|
27310
|
27310
27310-58080 Frame Assy, Drive End, Alternator[05.1995 -] 3B..BU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
27310-58080 |
US $109.80 |
||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[05.1995 -] 3B,3RZFP..BU68,RZU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
90099-10192 |
from US $13.63 |
||
|
27330
|
27330
27330-58050
Rotor Assy, Alternator
[05.1995 -] 3B..BU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
27330-58050 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[05.1995 -] 3B,3RZFP..BU68,RZU68 |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-17080 Holder, Alternator, W/rectifier[05.1995 -] 3B..BU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
27357-17080 |
US $66.58 |
||
|
27359
|
27359
27359-58050
Frame, Alternator Rectifier End
[05.1995 -] 3B..BU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
27359-58050 |
— | ||
|
27365
|
27365
27365-55080
Plate, Terminal
[05.1995 -] 3B,3RZFP..BU68,RZU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
27365-55080 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[05.1995 -] 3B,3RZFP..BU68,RZU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
27370-75060 |
from US $15.22 |
||
|
27387
|
27387
27387-42020
Insulator, Terminal
[05.1995 - 08.1997] 3B,3RZFP..BU68,RZU68..N |
27387-42020 |
— | ||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[05.1995 -] 3B,3RZFP..BU68,RZU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
27388-42010 |
from US $2.30 |
||
|
27389
|
27389
27389-42010
Insulator, Terminal
[05.1995 -] 3B,3RZFP..BU68,RZU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
27389-42010 |
— | ||
|
27411
|
27411
27411-58290
Pulley, Alternator
[05.1995 - 01.1997] 3B..BU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
27411-58290 |
— | ||
|
27411
|
27411
27411-58330
Pulley, Alternator
[01.1997 -] 3B..BU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
27411-58330 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[05.1995 -] 3B,3RZFP..BU68,RZU68 |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-62012
Clip, Alternator Cord
[05.1995 -] 3B..BU68 |
27446-62012 |
— | ||
|
27700A
|
27700A
27700-58040
Regulator Assy, Generator
[05.1995 - 04.1996] 3B..BU68 |
27700-58040 |
— | ||
| replacement | |||||
|
27700A
|
27700A
27700-58060 Regulator Assy, Generator[05.1995 - 04.1996] 3B..BU68 |
27700-58060 |
from US $128.02 |
||
|
27700A
|
27700A
27700-58060 Regulator Assy, Generator[04.1996 -] 3B..BU68 |
27700-58060 |
from US $128.02 |
||
|
2738450030
|
2738450030
27384-50030 Holder, Alternator Brush, A |
27384-50030 |
from US $2.80 |
||
|
2738742021
|
2738742021
27387-42021
Insulator, Terminal
|
27387-42021 |
— | ||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905232
|
9009905232
90099-05232
New Genuine Part
|
90099-05232 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.25 |
||
