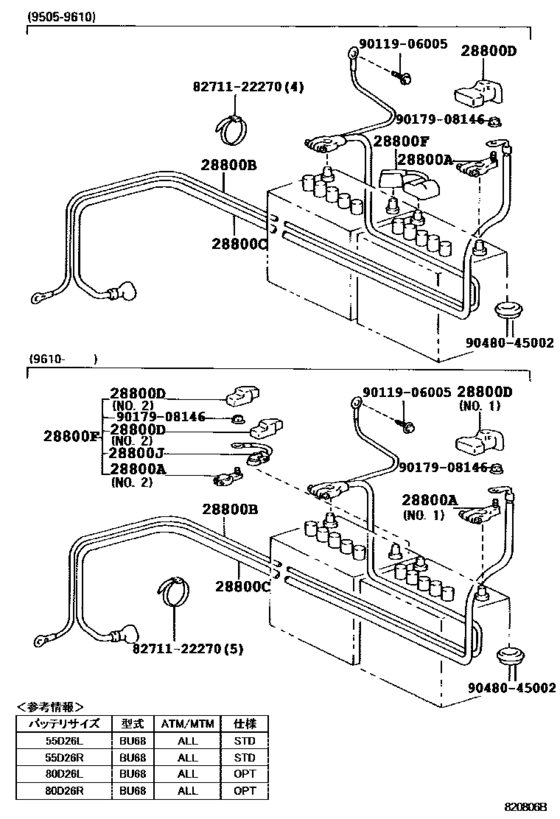

Battery & Battery Cable ([05.1995 - ] (9505- )BU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800A
|
28800A
90982-05030 Terminal, Battery Positive[05.1995 - 10.1996] 3B,3L..BU68,LH81,LY151 |
90982-05030 |
from US $12.71 |
||
|
28800A
|
28800A
90982-05035 Terminal, Battery Positive[10.1996 - 08.1999] 3B..BU68 |
90982-05035 |
from US $11.83 |
||
|
28800B
|
28800B
82123-25010 Cable, Battery To Ground[05.1995 - 10.1996] 3B..BU68 |
82123-25010 |
US $101.92 |
||
|
28800B
|
28800B
82123-25011 Cable, Battery To Ground[10.1996 - 08.1997] 3B..BU68 |
82123-25011 |
US $119.39 |
||
|
28800B
|
28800B
82123-25012 Cable, Battery To Ground[08.1997 - 08.1999] 3B..BU68 |
82123-25012 |
US $122.30 |
||
|
28800C
|
28800C
82122-25010 Cable, Battery To Starter(For Battery To Main Switch)[05.1995 - 08.1997] 3B..BU68 |
82122-25010 |
US $218.40 |
||
|
28800C
|
28800C
82122-25011 Cable, Battery To Starter(For Battery To Main Switch)[08.1997 - 08.1999] 3B..BU68 |
82122-25011 |
US $126.67 |
||
|
28800D
|
28800D
82821-12150 Cover, Connector(For Battery Terminal)[10.1996 - 08.1999] 3B..BU68 ＮＯ．２ |
82821-12150 |
from US $6.05 |
||
|
28800D
|
28800D
82821-22110 Cover, Connector(For Battery Terminal)[05.1995 - 10.1996] 3B..BU68 |
82821-22110 |
US $32.09 |
||
|
28800F
|
28800F
82124-36010 Cable, Battery To Battery[05.1995 - 10.1996] 3B..BU68 |
82124-36010 |
US $80.08 |
||
|
28800F
|
28800F
82124-36011 Cable, Battery To Battery[10.1996 -] 3B..BU68 |
82124-36011 |
US $50.03 |
||
|
28800J
|
28800J
90982-06013 Terminal, Battery Negative[10.1996 - 08.1999] 3B..BU68 |
90982-06013 |
US $8.91 |
||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $3.58 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $0.96 |
||
|
9017908146
|
9017908146
90179-08146
Nut (For Transmission Control Cable)
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut (For Front Wiper Arm Setting) |
90179-08204 |
from US $0.99 |
||
|
9048045002
|
9048045002
90480-45002 New Genuine Part |
90480-45002 |
US $5.24 |
||
