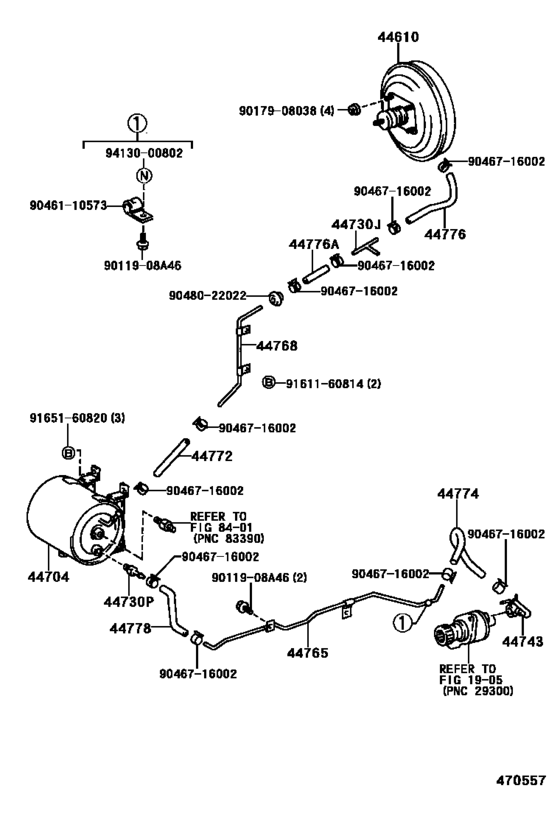

Brake Booster & Vacuum Tube ([05.1995 - ] (9505- )BU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-37080 Booster Assy, Brake[05.1995 -] BU68 |
44610-37080 |
US $707.62 |
||
|
44704
|
44704
44704-36191 Reservoir Sub-Assy, Vacuum[05.1995 -] BU68 |
44704-36191 |
US $131.04 |
||
|
44730J
|
44730J
90413-09038 Way(For Booster Vacuum)[05.1995 -] BU68 |
90413-09038 |
US $6.55 |
||
|
44730P
|
44730P
44730-60040 Booster Kit, Brake[05.1995 -] BU68 |
44730-60040 |
US $77.93 |
||
|
44743
|
44743
90405-09164 Union, Vacuum Hose(For Manifold Side)[05.1995 -] BU68..N; BU68..D ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
90405-09164 |
US $5.39 |
||
|
44765
|
44765
44765-37010 Tube, Connector To Brake Booster, No.2[05.1995 -] BU68 |
44765-37010 |
US $39.89 |
||
|
44768
|
44768
44768-25050 Tube, Booster Vacuum[05.1995 -] BU68 |
44768-25050 |
US $22.86 |
||
|
44772
|
44772
95444-09120
Hose, No.1(For Clutch Booster Vacuum)
[05.1995 - 09.1998] BU68 |
95444-09120 |
— | ||
| replacement | |||||
|
44772
|
44772
95447-09200
Hose, No.1(For Clutch Booster Vacuum)
[05.1995 - 09.1998] BU68 |
95447-09200 |
— | ||
|
44772
|
44772
95447-09120 Hose, No.1(For Clutch Booster Vacuum)[09.1998 -] BU68 |
95447-09120 |
US $7.43 |
||
| replacement | |||||
|
44772
|
44772
95447-09200
Hose, No.1(For Clutch Booster Vacuum)
[09.1998 -] BU68 |
95447-09200 |
— | ||
|
44774
|
44774
44774-37010 Hose, Vacuum Tube Connector[05.1995 -] BU68 |
44774-37010 |
US $15.29 |
||
|
44776
|
44776
44776-25020 Hose, Brake Booster[05.1995 -] BU68 |
44776-25020 |
US $19.95 |
||
|
44776A
|
44776A
90445-17044 Hose, Vacuum Pump[05.1995 -] BU68 |
90445-17044 |
US $4.19 |
||
|
44778
|
44778
44778-37010 Hose, Connector To Check Valve[05.1995 -] BU68 |
44778-37010 |
US $26.64 |
||
|
9011908A46
|
9011908A46
90119-08A46 BOLT WWASHER |
90119-08A46 |
US $1.43 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9046110573
|
9046110573
90461-10573 New Genuine Part |
90461-10573 |
US $4.37 |
||
|
9046716002
|
9046716002
90467-16002
Clip(Vaccum Transmitting Hose No.1)
|
90467-16002 |
— | ||
| replacement | |||||
|
9046716002
|
9046716002
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.30 |
||
|
9048022022
|
9048022022
90480-22022 GROMMET |
90480-22022 |
from US $1.65 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
