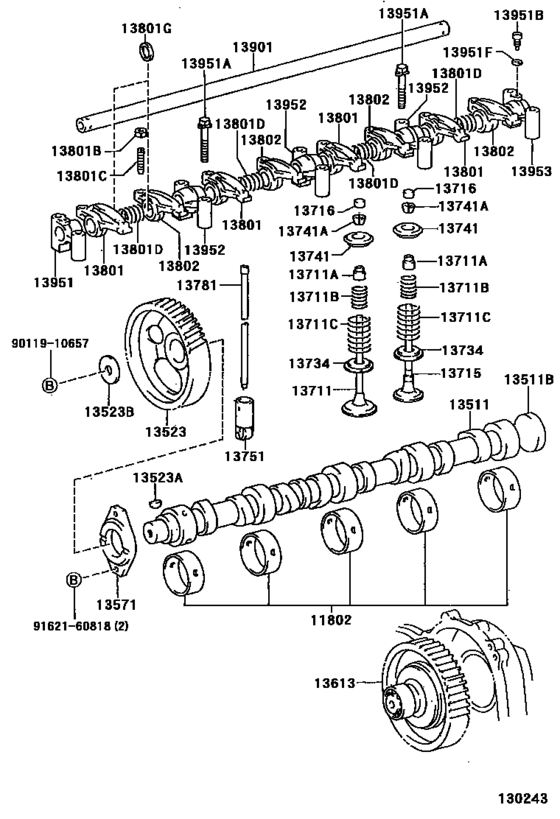

Camshaft & Valve ([05.1995 - ] (9505- )3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11802
|
11802
11802-56030 Bearing Set, Camshaft[05.1995 - 08.1999] 3B..BU68 ＳＴＤ |
11802-56030 |
US $91.73 |
||
|
13511
|
13511
13511-56060 Camshaft[05.1995 -] 3B..BU68 |
13511-56060 |
US $585.31 |
||
|
13511B
|
13511B
90331-58001 Plug, Expansion(For Camshaft)[05.1995 -] 3B..BU68 |
90331-58001 |
US $5.91 |
||
|
13523
|
13523
13523-58010 Gear Or Sprocket, Camshaft Timing[05.1995 -] 3B..BU68 |
13523-58010 |
US $160.74 |
||
|
13523A
|
13523A
95161-30519 Key(For Crankshaft Timing Gear)[05.1995 -] 3B..BU68 |
95161-30519 |
US $3.32 |
||
|
13523B
|
13523B
90201-10227 Washer, Plate(For Timing Gear)[05.1995 -] 3B..BU68 |
90201-10227 |
US $3.06 |
||
|
13571
|
13571
13571-56030 Plate, Camshaft Thrust[05.1995 -] 3B..BU68 |
13571-56030 |
US $34.25 |
||
|
13613
|
13613
22407-58010 Gear, Injection Pump Drive[05.1995 -] 3B..BU68 |
22407-58010 |
US $139.78 |
||
|
13711
|
13711
13711-58021 Valve, Intake[05.1995 -] 3B..BU68 |
13711-58021 |
from US $17.16 |
||
|
13711A
|
13711A
90913-02076 Seal Or Ring, O(For Valve Stem Oil)[05.1995 -] 3B..BU68 |
90913-02076 |
from US $4.54 |
||
|
13711B
|
13711B
90501-33012 Spring, Compression(For Inner)[05.1995 -] 3B..BU68 |
90501-33012 |
US $4.66 |
||
|
13711C
|
13711C
90501-45032 Spring, Compression(For Outer)[05.1995 -] 3B..BU68 |
90501-45032 |
US $7.71 |
||
|
13715
|
13715
13715-58051 Valve, Exhaust[05.1995 -] 3B..BU68 |
13715-58051 |
US $52.42 |
||
|
13716
|
13716
13716-56010 Cap, Valve Stem[05.1995 -] 3B..BU68 |
13716-56010 |
US $3.16 |
||
|
13734
|
13734
13734-56010 Seat, Valve Spring[05.1995 -] 3B..BU68 |
13734-56010 |
from US $3.59 |
||
|
13741
|
13741
13741-56040 Retainer, Valve Spring[05.1995 -] 3B..BU68 |
13741-56040 |
US $5.53 |
||
|
13741A
|
13741A
90913-03024 Lock, Valve Spring Retainer[05.1995 -] 3B..BU68 |
90913-03024 |
from US $1.46 |
||
|
13751
|
13751
13750-58010
Lifter, Valve
[05.1995 - 09.1997] 3B..BU68 |
13750-58010 |
— | ||
| replacement | |||||
|
13751
|
13751
13750-58011 Lifter, Valve[05.1995 - 09.1997] 3B..BU68 |
13750-58011 |
from US $19.65 |
||
|
13751
|
13751
13750-58011 Lifter, Valve[09.1997 -] 3B..BU68 |
13750-58011 |
from US $19.65 |
||
|
13781
|
13781
13781-56020 Rod, Valve Push[05.1995 -] 3B..BU68 |
13781-56020 |
from US $11.29 |
||
|
13801
|
13801
13811-58020 Arm Sub-Assy, Valve Rocker, No.1[05.1995 -] 3B..BU68 |
13811-58020 |
US $34.36 |
||
|
13801B
|
13801B
90179-08248 Nut, Hexagon(For Valve Adjusting)[05.1995 -] 3B..BU68 |
90179-08248 |
from US $0.89 |
||
|
13801C
|
13801C
90913-05025 Screw, Valve Adjusting[05.1995 -] 3B..BU68 |
90913-05025 |
US $6.81 |
||
|
13801D
|
13801D
90501-16114 Spring, Compression(For Rocker Arm)[05.1995 -] 3B..BU68 |
90501-16114 |
US $1.46 |
||
|
13801G
|
13801G
90201-19009 Washer, Plate(For Valve Rocker Arm)[05.1995 -] 3B..BU68 |
90201-19009 |
US $1.46 |
||
|
13802
|
13802
13812-58020 Arm Sub-Assy, Valve Rocker, No.2[05.1995 -] 3B..BU68 |
13812-58020 |
US $29.98 |
||
|
13901
|
13901
13901-56030 Shaft Sub-Assy, Valve Rocker, No.1[05.1995 -] 3B..BU68 |
13901-56030 |
from US $43.33 |
||
|
13951
|
13951
13951-56030 Support, Valve Rocker, No.1[05.1995 -] 3B..BU68 |
13951-56030 |
US $32.18 |
||
|
13951A
|
13951A
90105-08165 Bolt(For Rocker Support Set)[05.1995 -] 3B..BU68 ＊８−１．２５ＰＸ５３−３０ |
90105-08165 |
US $1.51 |
||
|
13951A
|
13951A
90105-08177 Bolt(For Rocker Support Set)[05.1995 -] 3B..BU68 ＊８−１．２５ＰＸ６３−３０ |
90105-08177 |
US $1.46 |
||
|
13951B
|
13951B
13958-56010 Screw Or Bolt(For Valve Rocker Shaft Lock)[05.1995 -] 3B..BU68 |
13958-56010 |
US $3.04 |
||
|
13951F
|
13951F
90201-06350 Washer, Seal(For Head Cover Set)[05.1995 -] 3B..BU68 |
90201-06350 |
US $0.87 |
||
|
13952
|
13952
13952-56030 Support, Valve Rocker, No.2[05.1995 -] 3B..BU68 |
13952-56030 |
US $34.51 |
||
|
13953
|
13953
13953-56030 Support, Valve Rocker, No.3[05.1995 -] 3B..BU68 |
13953-56030 |
US $32.18 |
||
|
9011910657
|
9011910657
90119-10657 Bolt(For Body Mount No.4 Cushion) |
90119-10657 |
US $3.94 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
