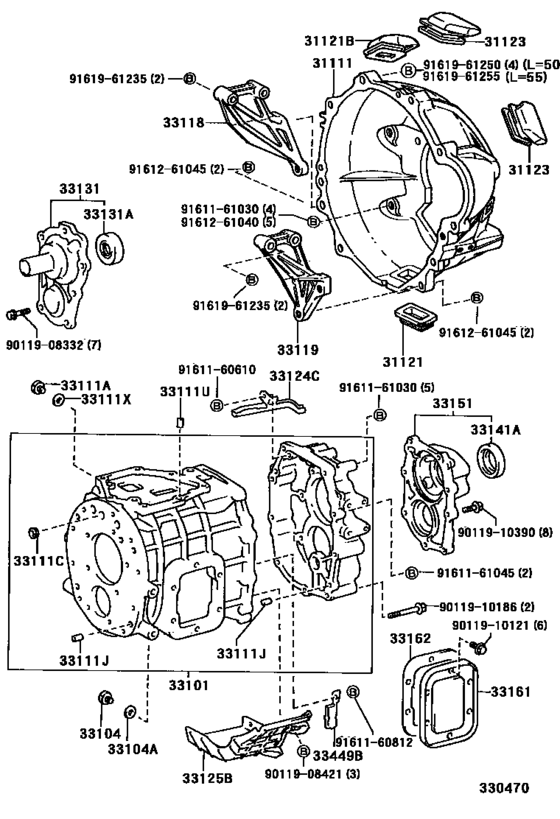

Clutch Housing & Transmission Case (Mtm) ([05.1995 - ] M153 (9505- )BU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-36310 Housing, Clutch[05.1995 - 08.1999] BU68 |
31111-36310 |
US $393.12 |
||
|
31121
|
31121
31121-36040
Cover, Clutch Housing, No.1
[05.1995 -] BU68,RZU68 |
31121-36040 |
— | ||
| replacement | |||||
|
31121
|
31121
31121-36110 Cover, Clutch Housing, No.1[05.1995 -] BU68,RZU68 |
31121-36110 |
from US $3.44 |
||
|
31121B
|
31121B
31121-28030 Cover, Clutch Housing, No.1[05.1995 -] BU68 |
31121-28030 |
US $7.34 |
||
|
31123
|
31123
31121-28041 Cover, Clutch Housing, No.1[05.1995 -] BU68,RZU68 |
31121-28041 |
from US $11.11 |
||
|
33101
|
33101
33101-36082 Case Sub-Assy, Manual Transmission[05.1995 - 08.1998] BU68,RZU68 |
33101-36082 |
US $997.36 |
||
|
33101
|
33101
33101-36083 Case Sub-Assy, Manual Transmission[08.1998 -] BU68,RZU68 |
33101-36083 |
US $997.36 |
||
| replacement | |||||
|
33101
|
33101
33101-36084 Case Sub-Assy, Manual Transmission[08.1998 -] BU68,RZU68 |
33101-36084 |
US $627.54 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[05.1995 - 06.1998] BU68,LH81,LY151,RZU68..MTM |
90341-18006 |
from US $3.23 |
||
|
33104A
|
33104A
90430-18008 Gasket[05.1995 - 08.2001] BU68,LH8#,LY15#,RZU68..MTM |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[05.1995 - 08.2001] BU68,LH8#,LY15#,RZU68..MTM |
90430-T0021 |
US $0.99 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[05.1995 - 08.2001] BU68,LH8#,LY15#,RZU68..MTM |
90341-18006 |
from US $3.23 |
||
|
33111C
|
33111C
96411-11600 Plug[05.1995 - 08.1999] BU68,RZU68 |
96411-11600 |
US $4.66 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[05.1995 - 08.2001] BU68,LH8#,RZU68..MTM 長さ＝１６，外径＝１２ |
90250-12002 |
from US $1.24 |
||
|
33111U
|
33111U
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[05.1995 - 08.1999] BU68,RZU68 長さ＝１１，外径＝１１ |
90253-11001 |
US $2.15 |
||
|
33111U
|
33111U
90253-13017 Pin, Ring W/head[05.1995 - 08.1999] BU68,RZU68 長さ＝１２，外径＝１３ |
90253-13017 |
from US $1.31 |
||
|
33111X
|
33111X
90430-18008 Gasket[05.1995 - 08.2001] BU68,LH8#,LY15#,RZU68..MTM |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
33111X
|
33111X
90430-T0021 Gasket(For Manual Transmission Filler Plug)[05.1995 - 08.2001] BU68,LH8#,LY15#,RZU68..MTM |
90430-T0021 |
US $0.99 |
||
|
33118
|
33118
33118-36021 Plate, Stiffener, Rh(Mtm)[05.1995 -] BU68 |
33118-36021 |
from US $27.26 |
||
|
33119
|
33119
33119-36042 Plate, Stiffener, Lh(Mtm)[05.1995 -] BU68 |
33119-36042 |
US $24.81 |
||
|
33124C
|
33124C
33124-36030 Pipe, Oil Receiver, No.1(Mtm)[05.1995 -] BU68,RZU68 |
33124-36030 |
US $4.37 |
||
|
33125B
|
33125B
33125-36020 Receiver, Manual Transmission Case[05.1995 -] BU68,RZU68 |
33125-36020 |
US $18.78 |
||
|
33131
|
33131
33018-36060 Retainer, Bearing, Front(Mtm)[05.1995 - 08.1999] BU68,RZU68 |
33018-36060 |
US $59.40 |
||
|
33131A
|
33131A
90311-32012 Seal, Oil(For Transmission Front Bearing Retainer)[05.1995 - 08.2001] BU68,LY15#,RZU68 |
90311-32012 |
from US $5.87 |
||
|
33141A
|
33141A
90311-48011 Seal, Oil(For Transmission Rear Bearing Retainer)[05.1995 -] BU68,RZU68 |
90311-48011 |
from US $8.42 |
||
|
33151
|
33151
33017-36031 Retainer, Output Shaft Rear Bearing(Mtm)[05.1995 - 08.1999] BU68,RZU68 |
33017-36031 |
US $111.82 |
||
|
33161
|
33161
33161-36010 Cover, Manual Transmission Power Take-Off[05.1995 -] BU68,RZU68 |
33161-36010 |
US $16.13 |
||
|
33162
|
33162
33162-36020 Gasket, Transmission Power Take-Off Cover(Mtm)[05.1995 -] BU68,RZU68 |
33162-36020 |
from US $6.14 |
||
|
33449B
|
33449B
33449-36010 Magnet, Transmission[05.1995 - 08.1999] BU68,RZU68 |
33449-36010 |
US $12.08 |
||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.20 |
||
|
9011908421
|
9011908421
90119-08421 New Genuine Part |
90119-08421 |
US $1.31 |
||
|
9011910121
|
9011910121
90119-10121 BOLT |
90119-10121 |
US $4.30 |
||
|
9011910186
|
9011910186
90119-10186 BOLT |
90119-10186 |
US $2.51 |
||
|
9011910390
|
9011910390
90119-10390 Bolt (For Transfer Extension Rear Housing) |
90119-10390 |
US $1.97 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.78 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.05 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
|
9161261040
|
9161261040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.15 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.90 |
||
|
9161961255
|
9161961255
91619-61255 Bolt(For Transaxle & Engine Setting) |
91619-61255 |
US $2.15 |
||
