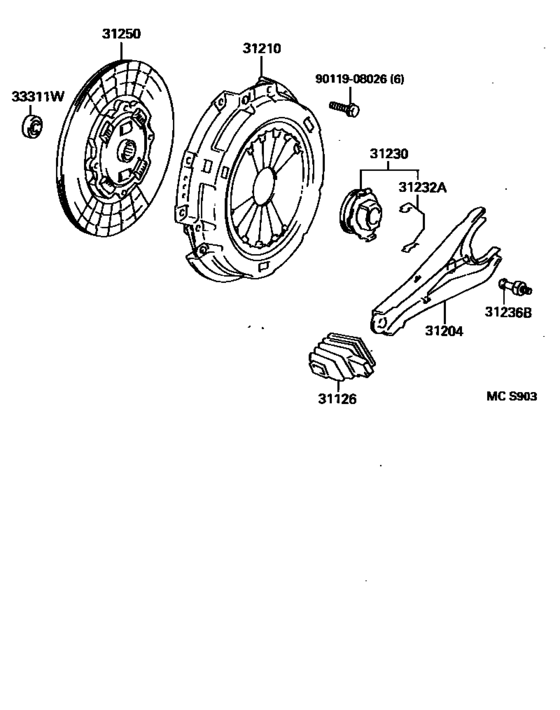

Clutch & Release Fork ([05.1995 - ] (9505- )BU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-36080 Boot, Clutch Release Fork[05.1995 - 08.1999] BU68,RZU68 |
31126-36080 |
from US $11.29 |
||
|
31204
|
31204
31204-35031 Fork Sub-Assy, Clutch Release[05.1995 - 08.1999] BU68,LY15# |
31204-35031 |
from US $24.19 |
||
|
31210
|
31210
31210-36160
Cover Assy, Clutch
[05.1995 - 08.1999] BU68 |
31210-36160 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-36330 Cover Assy, ClutchCLUTCH [05.1995 - 08.1999] BU68 |
31210-36330 |
from US $224.81 |
||
|
31230
|
31230
31230-36150
Bearing Assy, Clutch Release
[05.1995 - 08.1999] BU68 |
31230-36150 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-36151 Bearing Assy, Clutch ReleaseCLUTCH RELEASE [05.1995 - 08.1999] BU68 |
31230-36151 |
from US $63.92 |
||
|
31232A
|
31232A
31232-36010 Clip Or Spring, Release Bearing Hub[05.1995 - 08.1999] BU68 |
31232-36010 |
US $1.92 |
||
|
31236B
|
31236B
31236-35030 Ball, Release Fork[05.1995 - 08.1999] BU68,LY15# |
31236-35030 |
from US $5.91 |
||
|
31250
|
31250
31250-37050
Disc Assy, Clutch
[05.1995 - 11.1996] BU68 |
31250-37050 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-60431
Disc Assy, Clutch
[05.1995 - 11.1996] BU68 |
31250-60431 |
— | ||
|
31250
|
31250
31250-37070
Disc Assy, Clutch
[11.1996 - 08.1999] BU68 |
31250-37070 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-60431
Disc Assy, Clutch
[11.1996 - 08.1999] BU68 |
31250-60431 |
— | ||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[05.1995 - 04.1999] BU68,LH81,LY151,RZU68..MTM |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[05.1995 - 04.1999] BU68,LH81,LY151,RZU68..MTM |
90363-12024 |
from US $5.53 |
||
|
33311W
|
33311W
90363-12018 Bearing (For Input Shaft)[04.1999 -] BU68 |
90363-12018 |
from US $5.57 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.63 |
||
