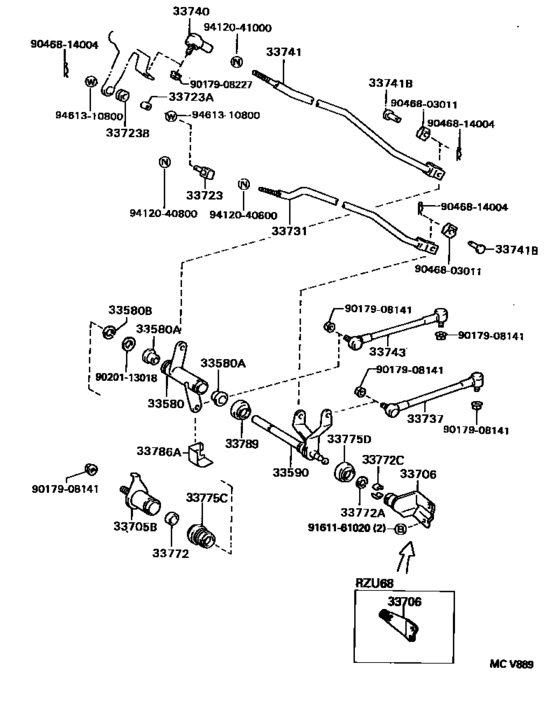

Control Shaft & Crossshaft ([05.1995 - ] (9505- )BU68,RZU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33580
|
33580
33580-36040 Bellcrank Assy, Shifting (For Column Shift)[05.1995 -] BU68,RZU68 |
33580-36040 |
US $54.89 |
||
|
33580A
|
33580A
90386-13007 Bush(For Clutch Pedal)[05.1995 -] BU68,RZU68 |
90386-13007 |
from US $2.45 |
||
|
33580B
|
33580B
90520-12256 Ring, Shaft Snap (For Shifting Bellcrank)[05.1995 -] BU68,RZU68 |
90520-12256 |
US $0.61 |
||
|
33590
|
33590
33590-36060 Crank Assy, Selecting Bell (For Column Shift)[05.1995 -] BU68,RZU68 |
33590-36060 |
US $54.89 |
||
|
33705B
|
33705B
33705-36280 Support Sub-Assy, Cross Shaft, No.1 (For Column Shift)[05.1995 -] BU68,RZU68 |
33705-36280 |
US $26.21 |
||
|
33706
|
33706
33706-36060 Support Sub-Assy, Cross Shaft, No.2 (For Column Shift)[05.1995 -] BU68 |
33706-36060 |
US $33.92 |
||
|
33723
|
33723
33723-10020 Swivel, Connecting Rod (For Column Shift)[05.1995 -] BU68,LH8#,LY15#,RZU68..MTM |
33723-10020 |
US $9.78 |
||
|
33723A
|
33723A
90389-08005 Bushing(For Gear Selecting Rod)[05.1995 -] BU68,LH8#,LY15#,RZU68 |
90389-08005 |
from US $1.73 |
||
|
33723B
|
33723B
90480-17177 Grommet (For Transmission Control Rod)[05.1995 -] BU68,LH8#,LY15#,RZU68 |
90480-17177 |
from US $2.03 |
||
|
33731
|
33731
33701-25220 Rod, Gear Selecting, No.1 (For Column Shift)[05.1995 -] BU68 |
33701-25220 |
US $49.94 |
||
|
33737
|
33737
33850-36180
Rod, Gear Selecting, No.3 (For Column Shift)
[05.1995 -] BU68,RZU68 |
33850-36180 |
— | ||
|
33740
|
33740
33740-36060 End Assy, Connecting Rod, No.1(For Column Shift)[05.1995 -] BU68,RZU68 |
33740-36060 |
US $12.08 |
||
|
33741
|
33741
33702-36262 Rod, Gear Shifting, No.1 (For Column Shift)[05.1995 -] BU68 |
33702-36262 |
US $38 |
||
|
33741B
|
33741B
90240-08028 Pin, W/hole (For Column Shift Gear Selecting Rod)[05.1995 -] BU68,RZU68 |
90240-08028 |
US $2.87 |
||
|
33743
|
33743
33840-36320
Rod, Gear Shifting, No.3 (For Column Shift)
[05.1995 -] BU68,RZU68 |
33840-36320 |
— | ||
|
33772
|
33772
33772-36010 Bush, No.1, Cross Shaft Support (For Column Shift)[05.1995 -] BU68,RZU68 |
33772-36010 |
US $5.53 |
||
|
33772A
|
33772A
96151-01600
Ring, Snap
[05.1995 -] BU68,RZU68 |
96151-01600 |
— | ||
|
33772C
|
33772C
33772-20010 Bush (For Control Rod Support)[05.1995 -] BU68,RZU68 |
33772-20010 |
from US $4.31 |
||
|
33775C
|
33775C
33775-36010 Cover, Cross Shaft Dust, No.1 (For Column Shift)[05.1995 -] BU68,RZU68 |
33775-36010 |
US $9.17 |
||
|
33775D
|
33775D
33775-34010 Cover, Cross Shaft Dust, No.2 (For Column Shift)[05.1995 -] BU68,RZU68 |
33775-34010 |
US $4.89 |
||
|
33786A
|
33786A
33786-36020 Insulator, Cross Shaft Lever Heat, No.2(For Column Shift)[05.1995 -] BU68,RZU68 |
33786-36020 |
US $9.17 |
||
|
33789
|
33789
33789-36020 Cover, Cross Shaft Dust(For Column Shift)[05.1995 -] BU68,RZU68 |
33789-36020 |
US $6.46 |
||
|
9017908141
|
9017908141
90179-08141
Nut (For Transmission Control Cable)
|
90179-08141 |
— | ||
| replacement | |||||
|
9017908141
|
9017908141
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9017908227
|
9017908227
90179-08227 New Genuine Part |
90179-08227 |
US $1.43 |
||
|
9020113018
|
9020113018
90201-13018 New Genuine Part |
90201-13018 |
US $0.69 |
||
|
9046803011
|
9046803011
90468-03011 CLIP |
90468-03011 |
US $1.22 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.65 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.68 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.74 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
