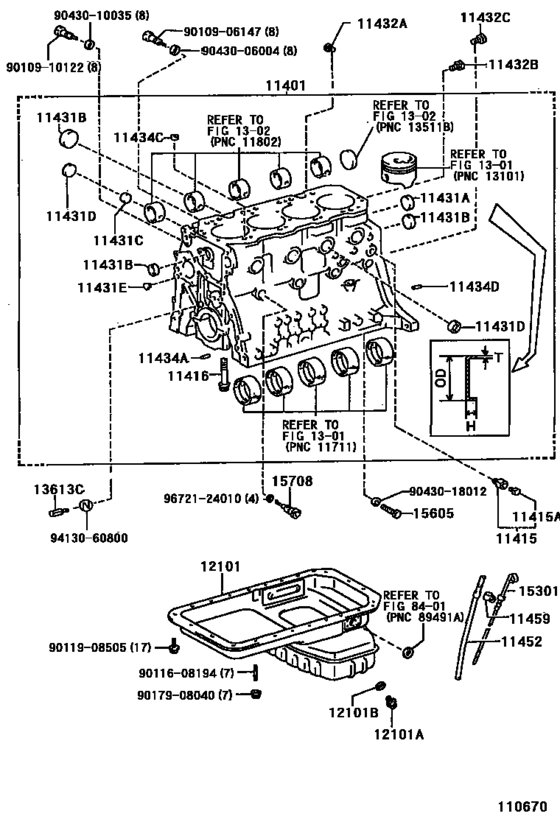

Cylinder Block ([05.1995 - ] (9505- )3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-59417 Block Sub-Assy, Cylinder[05.1995 -] 3B..BU68 |
11401-59417 |
from US $3,852.14 |
||
|
11415
|
11415
90910-09078 Cock Sub-Assy, Water Drain(For Cylinder Block)[05.1995 - 10.1996] 3B..BU68 ｶﾝﾚｲﾁ ｼﾖｳ |
90910-09078 |
US $16.31 |
||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[05.1995 - 10.1996] 3B..BU68 |
96431-53828 |
US $8.12 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[04.1999 -] 3B..BU68 |
90910-09087 |
from US $3 |
||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[05.1995 - 04.1999] 3B..BU68 |
96432-23814 |
— | ||
|
11416
|
11416
90910-02082 Bolt(For Crankshaft Bearing Cap Set)[05.1995 -] 3B..BU68 ＊１６−２．０ＰＸ９３．５−３２ |
90910-02082 |
US $4.95 |
||
|
11416
|
11416
90910-02083 Bolt(For Crankshaft Bearing Cap Set)[05.1995 -] 3B..BU68 ＊１６−２．０ＰＸ１２９．５−３２ |
90910-02083 |
US $5.82 |
||
|
11431A
|
11431A
96411-14500 Plug, Tight, No.1(For Cylinder Block)[05.1995 - 05.1999] 3B..BU68 |
96411-14500 |
US $4.22 |
||
|
11431A
|
11431A
96411-64500 Plug, Tight[05.1999 -] 3B..BU68 |
96411-64500 |
from US $4.02 |
||
|
11431B
|
11431B
90331-50003 Plug, Tight, No.2(For Cylinder Block)[05.1995 -] 3B..BU68 外径＝５０，厚さ＝１．２，高さ＝９ |
90331-50003 |
US $2.77 |
||
|
11431B
|
11431B
96411-45000 Plug, Tight, No.1(For Cam Housing)[05.1995 - 05.1999] 3B..BU68 外径＝５０，厚さ＝１．６，高さ＝１２ |
96411-45000 |
from US $4.22 |
||
|
11431B
|
11431B
96411-65000 Plug, Tight, No.2(For Cylinder Block)[05.1995 - 05.1999] 3B..BU68 外径＝５０，厚さ＝１．２，高さ＝１２ |
96411-65000 |
from US $3.14 |
||
|
11431C
|
11431C
96411-63000 Plug, Tight[05.1995 -] 3B..BU68 |
96411-63000 |
from US $3.76 |
||
|
11431D
|
11431D
96411-63500 Plug, Tight[05.1995 -] 3B..BU68 |
96411-63500 |
from US $3.58 |
||
|
11431E
|
11431E
90331-14006 Plug, Tight, No.1[05.1995 -] 3B..BU68 |
90331-14006 |
US $0.35 |
||
|
11432A
|
11432A
90345-51007 Plug, W/head Taper Screw, No.1[05.1995 -] 3B..BU68 |
90345-51007 |
US $0.70 |
||
|
11432B
|
11432B
90345-53004 Plug, W/head Taper Screw, No.2[05.1995 -] 3B..BU68 |
90345-53004 |
US $2.48 |
||
|
11432C
|
11432C
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[05.1995 -] 3B..BU68 |
90345-52001 |
from US $4.12 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[05.1995 -] 3B..BU68 長さ＝１８，外径＝８ |
90250-08120 |
from US $0.99 |
||
|
11434C
|
11434C
90253-15008 Pin, Straight (For Cylinder Head Set)[05.1995 -] 3B..BU68 長さ＝９．０，外径＝１４．５ |
90253-15008 |
US $0.79 |
||
|
11434D
|
11434D
90250-08120 Pin, Straight, No.1[05.1995 -] 3B..BU68 長さ＝１８，外径＝８ |
90250-08120 |
from US $0.99 |
||
|
11452
|
11452
11452-56050 Guide, Oil Level Gage[05.1995 -] 3B..BU68 |
11452-56050 |
US $25.68 |
||
|
11459
|
11459
11459-56040 Support, Oil Level Gage Guide[05.1995 -] 3B..BU68 |
11459-56040 |
US $11.71 |
||
|
12101
|
12101
12101-58102 Pan Sub-Assy, Oil[05.1995 - 01.1997] 3B..BU68 |
12101-58102 |
US $492.13 |
||
| replacement | |||||
|
12101
|
12101
12101-58170 Pan Sub-Assy, Oil[05.1995 - 01.1997] 3B..BU68 |
12101-58170 |
US $431.56 |
||
|
12101
|
12101
12101-58170 Pan Sub-Assy, Oil[01.1997 -] 3B..BU68 |
12101-58170 |
US $431.56 |
||
|
12101A
|
12101A
90341-12026
Plug, Drain
[05.1995 -] 3B..BU68 |
90341-12026 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[05.1995 -] 3B..BU68 |
90341-12012 |
from US $2.87 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
90430-12031 |
from US $0.82 |
||
|
13613C
|
13613C
90915-01015 Nozzle, Oil[05.1995 -] 3B..BU68 |
90915-01015 |
US $7.34 |
||
|
15301
|
15301
15301-58011 Gage Sub-Assy, Oil Level[05.1995 -] 3B..BU68 |
15301-58011 |
US $16.31 |
||
|
15605
|
15605
15605-56010 Valve Sub-Assy, Oil Check[05.1995 -] 3B..BU68 |
15605-56010 |
US $42.11 |
||
|
15708
|
15708
15708-56010 Nozzle Sub-Assy, Oil, No.1[05.1995 -] 3B..BU68 |
15708-56010 |
from US $14.97 |
||
|
9010906147
|
9010906147
90109-06147 New Genuine Part |
90109-06147 |
US $0.61 |
||
|
9010910122
|
9010910122
90109-10122 SPL BOLTCYL BLOCK |
90109-10122 |
US $2.62 |
||
|
9011608194
|
9011608194
90116-08194 Bolt |
90116-08194 |
US $1.97 |
||
|
9011908505
|
9011908505
90119-08505 Bolt, Washer |
90119-08505 |
US $1.79 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9043006004
|
9043006004
90430-06004 New Genuine Part |
90430-06004 |
US $1.25 |
||
|
9043010035
|
9043010035
90430-10035 Gasket(For Water Hole) |
90430-10035 |
from US $0.89 |
||
| replacement | |||||
|
9043010035
|
9043010035
9008943009
Gasket V P Oil Inlet
|
9008943009 |
— | ||
|
9043018012
|
9043018012
90430-18012 Gasket(For Oil Pump Outlet Pipe) |
90430-18012 |
US $3.05 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.67 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9672124010
|
9672124010
96721-24010 Ring, O(For Timing Gear Case, Lower) |
96721-24010 |
from US $0.84 |
||
