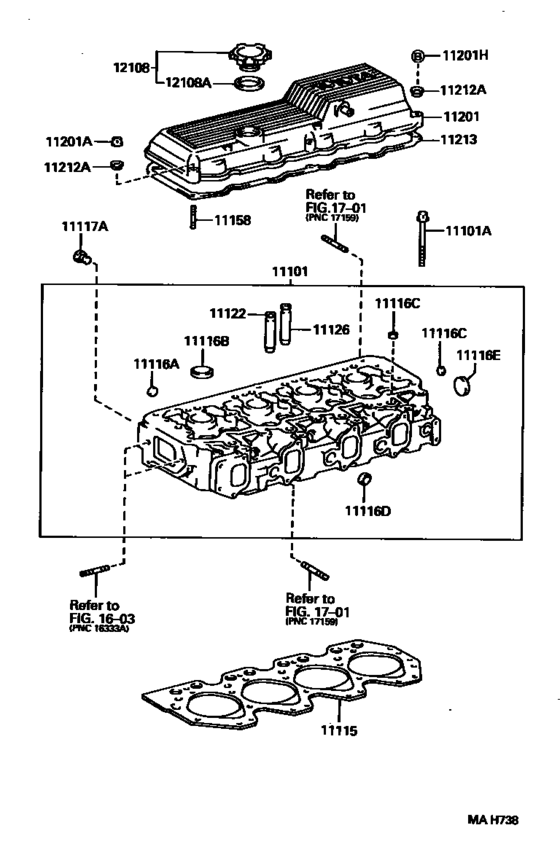

Cylinder Head ([05.1995 - ] (9505- )3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-58051
Head Sub-Assy, Cylinder
[05.1995 -] 3B..BU68 |
11101-58051 |
— | ||
|
11101A
|
11101A
90910-02084 Bolt(For Cylinder Head Set)[05.1995 -] 3B..BU68 |
90910-02084 |
US $9.50 |
||
|
11115
|
11115
11115-58080
Gasket, Cylinder Head
[05.1995 - 05.1999] 3B..BU68 厚さ＝１．５０ |
11115-58080 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-58081 Gasket, Cylinder Head[05.1995 - 05.1999] 3B..BU68 厚さ＝１．５０ |
11115-58081 |
from US $98.21 |
||
|
11115
|
11115
11115-58081 Gasket, Cylinder Head[05.1999 -] 3B..BU68 厚さ＝１．５０ |
11115-58081 |
from US $98.21 |
||
|
11116A
|
11116A
90331-12004 Plug, Tight, No.1[05.1995 -] 3B..BU68 |
90331-12004 |
US $1.02 |
||
|
11116B
|
11116B
96411-64000 Plug, Tight, No.2[05.1995 -] 3B..BU68 |
96411-64000 |
from US $4.12 |
||
|
11116C
|
11116C
96411-62000 Plug, Tight[05.1995 -] 3B..BU68 |
96411-62000 |
from US $2.97 |
||
|
11116D
|
11116D
96411-62800 Plug, Tight, No.1[05.1995 -] 3B..BU68 |
96411-62800 |
US $4.22 |
||
|
11116E
|
11116E
96411-64000 Plug, Tight, No.2[05.1995 -] 3B..BU68 |
96411-64000 |
from US $4.12 |
||
|
11117A
|
11117A
90345-54005 Plug, W/head Taper Screw, No.1[05.1995 -] 3B..BU68 |
90345-54005 |
from US $3.80 |
||
|
11122
|
11122
11122-56030 Bush, Intake Valve Guide[05.1995 -] 3B..BU68 ＳＴＤ |
11122-56030 |
from US $7.07 |
||
|
11126
|
11126
11122-56030 Bush, Intake Valve Guide[05.1995 -] 3B..BU68 ＳＴＤ |
11122-56030 |
from US $7.07 |
||
|
11158
|
11158
92112-60850 Bolt, Stud(For Head To Cylinder Head Cover)[05.1995 -] 3B..BU68 |
92112-60850 |
US $1 |
||
|
11201
|
11201
11201-58050 Cover Sub-Assy, Cylinder Head[05.1995 -] 3B..BU68 |
11201-58050 |
US $154.04 |
||
|
11201A
|
11201A
90179-08025 Nut, Cap(For Cylinder Head Cover)[05.1995 - 05.1999] 3B..BU68 |
90179-08025 |
from US $0.86 |
||
|
11201A
|
11201A
90179-08040 Nut, Cap(For Cylinder Head Cover)[05.1999 -] 3B..BU68 |
90179-08040 |
from US $1.01 |
||
|
11201H
|
11201H
91511-60850
Bolt
[05.1995 -] 3B..BU68 |
91511-60850 |
— | ||
| replacement | |||||
|
11201H
|
11201H
91511-B0850 Bolt[05.1995 -] 3B..BU68 |
91511-B0850 |
from US $1.41 |
||
|
11212A
|
11212A
11228-56010 Cushion, Cylinder Head Cover[05.1995 -] 3B..BU68 |
11228-56010 |
from US $1.46 |
||
|
11213
|
11213
11213-58030 Gasket, Cylinder Head Cover[05.1995 -] 3B..BU68 |
11213-58030 |
from US $11.71 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[05.1995 -] 3B..BU68 |
12180-55010 |
from US $11.29 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[05.1995 -] 3B..BU68 |
90430-37140 |
from US $1.14 |
||
