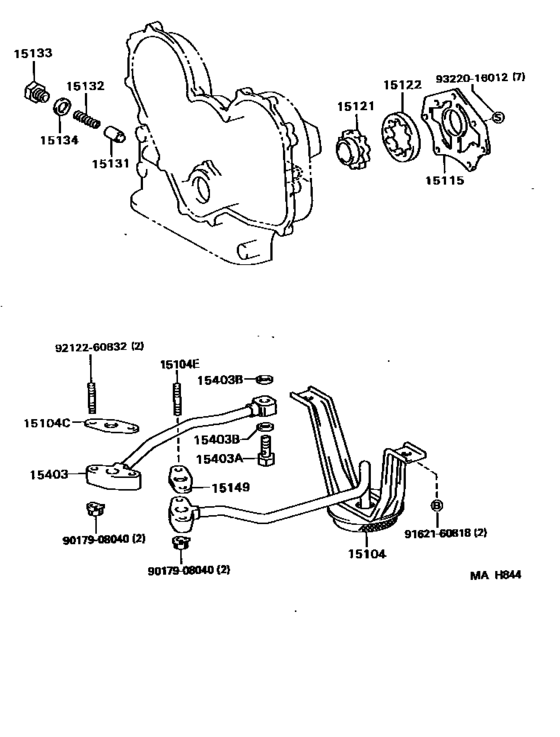

Engine Oil Pump ([05.1995 - 08.1999] (9505-9908)3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15104
|
15104
15104-56061
Strainer Sub-Assy, Oil
[05.1995 - 04.1999] 3B..BU68 |
15104-56061 |
— | ||
| replacement | |||||
|
15104
|
15104
15104-56062 Strainer Sub-Assy, Oil[05.1995 - 04.1999] 3B..BU68 |
15104-56062 |
US $124.05 |
||
|
15104
|
15104
15104-56062 Strainer Sub-Assy, Oil[04.1999 -] 3B..BU68 |
15104-56062 |
US $124.05 |
||
|
15104C
|
15104C
15149-56020
Gasket(For Oil Strainer)
[05.1995 - 08.1999] 3B..BU68 |
15149-56020 |
— | ||
| replacement | |||||
|
15104C
|
15104C
15149-58010 Gasket(For Oil Strainer)[05.1995 - 08.1999] 3B..BU68 |
15149-58010 |
US $3.03 |
||
|
15104E
|
15104E
92122-60832 Bolt, Stud(For Oil Strainer)[05.1995 -] 3B..BU68 |
92122-60832 |
from US $1.61 |
||
|
15115
|
15115
15115-56040 Cover, Oil Pump[05.1995 -] 3B..BU68 |
15115-56040 |
US $40.88 |
||
|
15121
|
15121
15121-56040 Gear, Oil Pump Drive[05.1995 -] 3B..BU68 |
15121-56040 |
from US $41.73 |
||
|
15122
|
15122
15122-56040 Gear, Oil Pump Driven[05.1995 -] 3B..BU68 |
15122-56040 |
from US $68.71 |
||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[05.1995 -] 3B..BU68 |
15131-24010 |
from US $3.90 |
||
|
15132
|
15132
15132-56080 Spring, Oil Pump Relief Valve[05.1995 -] 3B..BU68 |
15132-56080 |
US $2.80 |
||
|
15133
|
15133
15133-20010 Plug, Oil Pump Relief Valve[05.1995 -] 3B..BU68 |
15133-20010 |
from US $3.17 |
||
|
15134
|
15134
15134-20010 Gasket, Oil Pump Relief Valve[05.1995 -] 3B..BU68 |
15134-20010 |
from US $1.88 |
||
|
15149
|
15149
15149-56020
Gasket(For Oil Strainer)
[05.1995 - 08.1999] 3B..BU68 |
15149-56020 |
— | ||
| replacement | |||||
|
15149
|
15149
15149-58010 Gasket(For Oil Strainer)[05.1995 - 08.1999] 3B..BU68 |
15149-58010 |
US $3.03 |
||
|
15403
|
15403
15403-56050 Pipe Sub-Assy, Oil Pump Outlet[05.1995 -] 3B..BU68 |
15403-56050 |
US $54.16 |
||
|
15403A
|
15403A
90401-20009 Union(For Oil Pump Outlet Pipe)[05.1995 -] 3B..BU68 |
90401-20009 |
US $5.42 |
||
|
15403B
|
15403B
90430-20018 Gasket(For Oil Pump Outlet Pipe)[05.1995 -] 3B..BU68 |
90430-20018 |
from US $1.16 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9212260832
|
9212260832
92122-60832 Bolt, Stud(For Oil Strainer) |
92122-60832 |
from US $1.61 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
