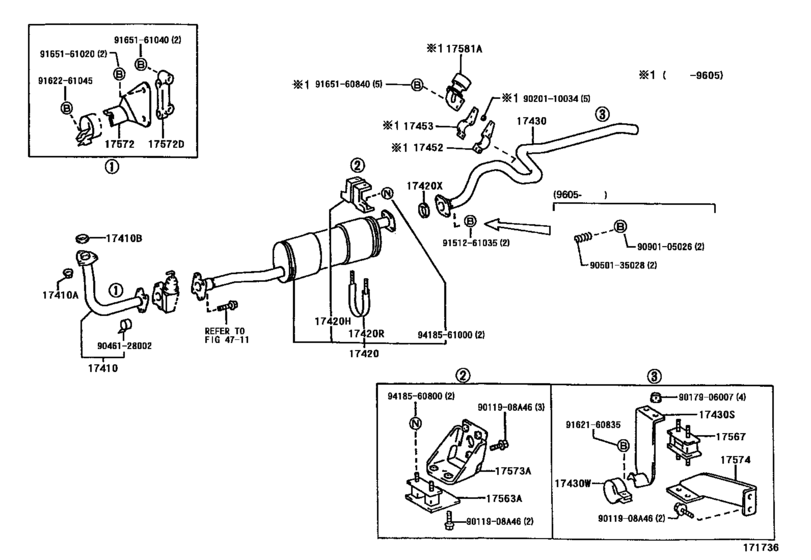

Exhaust Pipe ([05.1995 - ] (9505- )3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-58190 Pipe Assy, Exhaust, Front[05.1995 - 08.1996] 3B..BU68 |
17410-58190 |
US $228.59 |
||
| replacement | |||||
|
17410
|
17410
17410-58191 Pipe Assy, Exhaust, Front[05.1995 - 08.1996] 3B..BU68 |
17410-58191 |
US $213.52 |
||
|
17410
|
17410
17410-58191 Pipe Assy, Exhaust, Front[08.1996 -] 3B..BU68 |
17410-58191 |
US $213.52 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.1995 -] 3B,3L,5L,3RZFP..BU68,LH8#,LY15#,RZU68 |
90179-10070 |
from US $1.25 |
||
|
17410B
|
17410B
90917-06067 Gasket, Exhaust Pipe[05.1995 -] 3B..BU68 |
90917-06067 |
from US $5.09 |
||
|
17420
|
17420
17420-58580 Pipe Assy, Exhaust, Center[05.1995 - 05.1996] 3B..BU68 |
17420-58580 |
US $373.90 |
||
| replacement | |||||
|
17420
|
17420
17420-58581 Pipe Assy, Exhaust, Center[05.1995 - 05.1996] 3B..BU68 |
17420-58581 |
US $335.74 |
||
|
17420
|
17420
17420-58880 Pipe Assy, Exhaust, Center[05.1996 -] 3B..BU68 |
17420-58880 |
US $355.26 |
||
|
17420H
|
17420H
17576-58030 Clamp No.1, Exhaust Pipe Center, Center[05.1995 -] 3B,3RZFP..BU68,RZU68 |
17576-58030 |
US $26.64 |
||
|
17420R
|
17420R
17504-58020 Clamp No.2, Exhaust Pipe Center, Center[05.1995 -] 3B,3RZFP..BU68,RZU68 |
17504-58020 |
US $18.27 |
||
|
17420X
|
17420X
17451-67010 Gasket, Exhaust Pipe, Center[05.1996 -] 3B,3RZFP..BU68,RZU68 |
17451-67010 |
from US $19.81 |
||
|
17420X
|
17420X
90917-06042 Gasket, Exhaust Pipe[05.1995 - 05.1996] 3B..BU68 |
90917-06042 |
from US $4.39 |
||
|
17430
|
17430
17430-58570 Pipe Assy, Exhaust, Tail[05.1995 - 05.1996] 3B..BU68 |
17430-58570 |
US $189.28 |
||
|
17430
|
17430
17430-58660 Pipe Assy, Exhaust, Tail[05.1996 - 08.1999] 3B..BU68 |
17430-58660 |
US $168.90 |
||
|
17430S
|
17430S
17561-47010 Bracket, Exhaust Pipe Center, Front[05.1995 -] 3B,3RZFP..BU68,RZU68 |
17561-47010 |
US $8.53 |
||
|
17430W
|
17430W
90461-32007 Clamp No.1, Exhaust Tail Pipe (For Front)[05.1995 -] 3B,3RZFP..BU68,RZU68 |
90461-32007 |
US $13.21 |
||
|
17452
|
17452
17452-74110 Clamp, Exhaust Pipe[05.1995 - 05.1996] 3B..BU68 |
17452-74110 |
from US $8.06 |
||
|
17453
|
17453
17453-74080 Clamp, Exhaust Pipe, No.2[05.1995 - 05.1996] 3B..BU68 |
17453-74080 |
from US $8.06 |
||
|
17563A
|
17563A
17563-58010
Cushion, Exhaust Pipe Center, Center
[05.1995 -] 3B,3RZFP..BU68,RZU68 |
17563-58010 |
— | ||
| replacement | |||||
|
17563A
|
17563A
17563-58041 Cushion, Exhaust Pipe Center, CenterEXHAUST PIPE, NO.3 [05.1995 -] 3B,3RZFP..BU68,RZU68 |
17563-58041 |
US $37.97 |
||
|
17567
|
17567
17567-17010 Cushion, Exhaust Pipe Center, Rear[05.1995 -] 3B,3RZFP..BU68,RZU68 |
17567-17010 |
from US $11.74 |
||
|
17572
|
17572
17571-58270 Bracket, Exhaust Pipe No.1 Support[05.1995 -] 3B..BU68 |
17571-58270 |
US $27.08 |
||
|
17572D
|
17572D
17579-73010 Bracket, Exhaust Pipe Front (For Front)[05.1995 -] 3B..BU68 |
17579-73010 |
US $11.36 |
||
|
17573A
|
17573A
17573-58040 Bracket, Exhaust Pipe, Center[05.1995 -] 3B,3RZFP..BU68,RZU68 |
17573-58040 |
US $54.31 |
||
|
17574
|
17574
17574-58040 Bracket, Exhaust Tail Pipe (For Rear)[05.1995 -] 3B,3RZFP..BU68,RZU68 |
17574-58040 |
US $41.06 |
||
|
17581A
|
17581A
17581-58010 Damper, Exhaust Pipe[05.1995 - 05.1996] 3B..BU68 |
17581-58010 |
US $27.81 |
||
|
9011908A46
|
9011908A46
90119-08A46 BOLT WWASHER |
90119-08A46 |
US $0.96 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.80 |
||
|
9020110034
|
9020110034
90201-10034 Washer, No.2 (For Center Support Bearing) |
90201-10034 |
US $2.75 |
||
|
9046128002
|
9046128002
90461-28002 CLAMP |
90461-28002 |
US $7.98 |
||
|
9050135028
|
9050135028
90501-35028 Spring, Exhaust Pipe |
90501-35028 |
from US $3.04 |
||
|
9090105026
|
9090105026
90901-05026 Bolt, Exhaust Pipe Support |
90901-05026 |
from US $3.85 |
||
|
9151261035
|
9151261035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.93 |
||
|
9162160835
|
9162160835
91621-60835
New Genuine Part
|
91621-60835 |
— | ||
| replacement | |||||
|
9162160835
|
9162160835
91651-B0835 BOLT |
91651-B0835 |
US $1.24 |
||
|
9162261045
|
9162261045
91622-61045 New Genuine Part |
91622-61045 |
US $2.20 |
||
|
9165160840
|
9165160840
91651-60840 BOLT |
91651-60840 |
US $1.10 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $1.65 |
||
|
9165161040
|
9165161040
91651-61040 Bolt (For Transfer Case) |
91651-61040 |
from US $1.50 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $0.87 |
||
