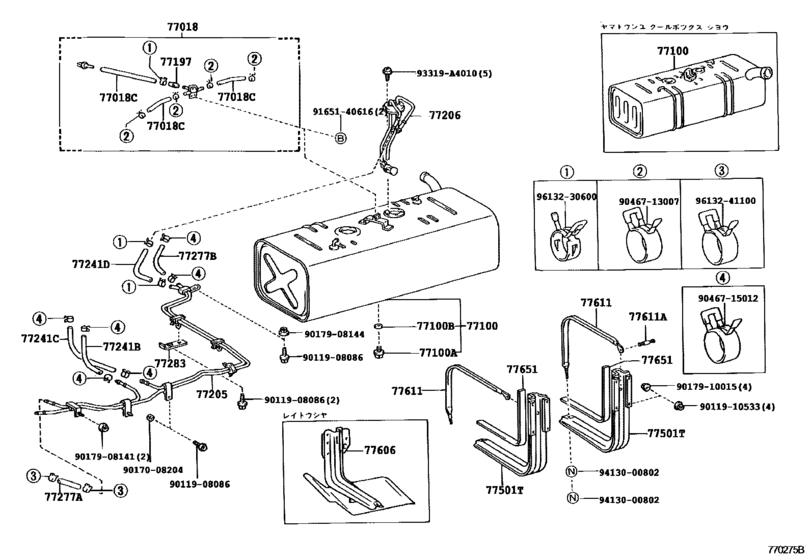

Fuel Tank & Tube ([05.1995 - ] (9505- )BU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77018
|
77018
77018-37040 Valve Sub-Assy, Fuel Vapour Separate[05.1995 -] BU68 |
77018-37040 |
US $52.42 |
||
|
77018C
|
77018C
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[05.1995 -] BU68 ＊Ｈ，Ｌ＝２８０，内径＝７．６ |
95333-08030 |
US $11.83 |
||
|
77100
|
77100
77001-36821 Tank Assy, Fuel[05.1995 - 08.1999] BU68 |
77001-36821 |
US $557.65 |
||
| replacement | |||||
|
77100
|
77100
77001-36822 Tank Assy, Fuel[05.1995 - 08.1999] BU68 |
77001-36822 |
US $623.17 |
||
|
77100
|
77100
77001-3B160 Tank Assy, Fuel[05.1995 - 08.1999] BU68..N ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
77001-3B160 |
US $596.96 |
||
|
77100A
|
77100A
90105-12116 Plug(For Fuel Tank)[05.1995 -] BU68,LH8#,LY15# |
90105-12116 |
from US $1.27 |
||
|
77100B
|
77100B
90430-12245 Gasket(For Fuel Tank)[05.1995 -] BU68,LH8#,LY15# |
90430-12245 |
from US $0.86 |
||
|
77197
|
77197
90977-02001 Orifice, Fuel Vapour[05.1995 -] BU68 |
90977-02001 |
US $3.93 |
||
|
77205
|
77205
77205-25110 Tube Sub-Assy, Fuel Main[05.1995 -] BU68 |
77205-25110 |
US $119.39 |
||
|
77205
|
77205
77205-25120 Tube Sub-Assy, Fuel Main[05.1995 -] BU68..N ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
77205-25120 |
US $94.64 |
||
|
77206
|
77206
77017-36340 Tube Sub-Assy, Fuel Tank Vent[05.1995 -] BU68 |
77017-36340 |
US $81.54 |
||
|
77241B
|
77241B
95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[05.1995 -] BU68 ＊Ｈ，Ｌ＝２８０ |
95332-10030 |
US $17.30 |
||
|
77241C
|
77241C
95332-10040 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[05.1995 -] BU68 ＊Ｈ，Ｌ＝４００ |
95332-10040 |
US $19.49 |
||
|
77241D
|
77241D
95333-06030
Hose, Fuel
[05.1995 -] BU68 ＊Ｈ，Ｌ＝２４０; BU68..N ＊Ｈ，Ｌ＝２２０,ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
95333-06030 |
— | ||
| replacement | |||||
|
77241D
|
77241D
95338-06030 HOSE, FUEL[05.1995 -] BU68 ＊Ｈ，Ｌ＝２４０; BU68..N ＊Ｈ，Ｌ＝２２０,ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
95338-06030 |
from US $10.39 |
||
|
77277A
|
77277A
23273-56010 Hose, Fuel, No.1(For Return Tube, No.1)[05.1995 -] BU68 長さ＝２２０ |
23273-56010 |
US $10.92 |
||
|
77277B
|
77277B
95332-10024 Hose, Fuel(For Fuel Evaporative Separator)[05.1995 -] BU68 ＊Ｈ，Ｌ＝２４０ |
95332-10024 |
US $9.32 |
||
| replacement | |||||
|
77277B
|
77277B
95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[05.1995 -] BU68 ＊Ｈ，Ｌ＝２４０ |
95332-10030 |
US $17.30 |
||
|
77277B
|
77277B
95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[05.1995 -] BU68..N ＊Ｈ，Ｌ＝２２０,ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
95332-10030 |
US $17.30 |
||
|
77283
|
77283
58266-36201 Bracket, Fuel Tube Clamp[05.1995 -] BU68 |
58266-36201 |
US $6.84 |
||
|
77501T
|
77501T
77501-25100 Bracket Sub-Assy, Fuel Tank[05.1995 -] BU68..N ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
77501-25100 |
US $193.65 |
||
|
77501T
|
77501T
77501-25110 Bracket Sub-Assy, Fuel Tank[05.1995 -] BU68..N ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,フロント |
77501-25110 |
US $214.03 |
||
|
77606
|
77606
77606-25010 Protector Sub-Assy, Fuel Tank, No.1[05.1995 -] BU68..N ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
77606-25010 |
US $189.28 |
||
|
77611
|
77611
77601-36090 Band Sub-Assy, Fuel Tank, No.1[05.1995 -] BU68 |
77601-36090 |
US $41.66 |
||
|
77611A
|
77611A
77629-36010 Pin (For Fuel Tank Band)[05.1995 -] BU68 |
77629-36010 |
US $2.51 |
||
|
77651
|
77651
77651-36110 Packing, Fuel Tank Bracket[05.1995 -] BU68 |
77651-36110 |
US $7.43 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.67 |
||
|
9011908086
|
9011908086
90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08086 |
US $6.81 |
||
|
9011910533
|
9011910533
90119-10533 New Genuine Part |
90119-10533 |
US $3.20 |
||
|
9017008204
|
9017008204
90170-08204 Nut (For Propeller Shaft) |
90170-08204 |
from US $0.72 |
||
|
9017908141
|
9017908141
90179-08141
Nut (For Transmission Control Cable)
|
90179-08141 |
— | ||
| replacement | |||||
|
9017908141
|
9017908141
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9017908144
|
9017908144
90179-08144 New Genuine Part |
90179-08144 |
US $1.89 |
||
| replacement | |||||
|
9017908144
|
9017908144
90179-08233 NUT |
90179-08233 |
from US $1.27 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.03 |
||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.46 |
||
|
9046715012
|
9046715012
90467-15012 Clip Or Clamp(For Ventilation Hose) |
90467-15012 |
US $3.58 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613241100
|
9613241100
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
|
96132-41100 |
— | ||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
