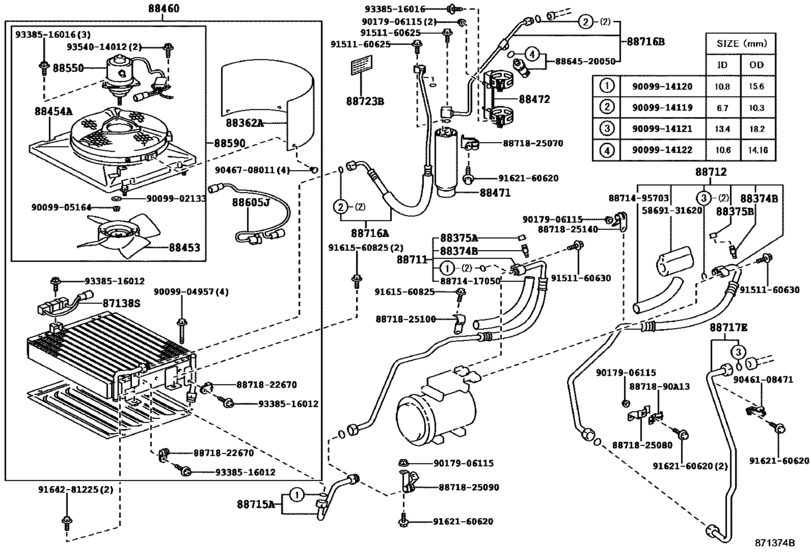

Heating & Air Conditioning - Cooler Piping ([05.1995 - ] (9505- )BU68..N) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87138S
|
87138S
87138-95411
Resistor, Blower
[05.1995 -] BU68,RZU68 |
87138-95411 |
— | ||
|
88362A
|
88362A
88362-25010
Plate,seal
[05.1995 -] BU68,RZU68 |
88362-25010 |
— | ||
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[05.1995 -] BU68,RZU68 |
88374-30010 |
from US $3.08 |
||
|
88375A
|
88375A
88375-30280 Cap, Service Valve (For Cooler Pipe)[05.1995 -] BU68,LY15#,RZU68 |
88375-30280 |
from US $0.98 |
||
|
88375B
|
88375B
88375-30290 Cap, Service Valve (For Cooler Pipe)[05.1995 -] BU68,LY15#,RZU68 |
88375-30290 |
from US $0.87 |
||
|
88453
|
88453
88453-95A01
Fan, Cooling (For Condenser)
[05.1995 -] BU68,LH8#,LY15#,RZU68 |
88453-95A01 |
— | ||
|
88454A
|
88454A
88454-25040
Shroud, Fan
[05.1995 -] BU68,RZU68 |
88454-25040 |
— | ||
|
88460
|
88460
88460-25130 Condenser Assy, Cooler[05.1995 - 12.1997] BU68..N |
88460-25130 |
US $883.79 |
||
| replacement | |||||
|
88460
|
88460
88460-25131 Condenser Assy, Cooler[05.1995 - 12.1997] BU68..N |
88460-25131 |
US $883.79 |
||
|
88460
|
88460
88460-25131 Condenser Assy, Cooler[12.1997 - 08.1999] BU68..N |
88460-25131 |
US $883.79 |
||
|
88471
|
88471
88471-20050
Receiver & Dryer Assy, Cooler
[05.1995 -] BU68,LH8#,LY15#,RZU68 |
88471-20050 |
— | ||
| replacement | |||||
|
88471
|
88471
88471-34010 Receiver & Dryer Assy, Cooler[05.1995 -] BU68,LH8#,LY15#,RZU68 |
88471-34010 |
from US $46.28 |
||
|
88472
|
88472
88473-25010
Bracket, Receiver Tank, No.1
[05.1995 -] BU68,RZU68 |
88473-25010 |
— | ||
|
88550
|
88550
87104-37030 Motor Assy, Blower (For Condenser)[05.1995 - 12.1997] BU68 |
87104-37030 |
US $294.11 |
||
| replacement | |||||
|
88550
|
88550
88550-25030 Motor Assy, Blower (For Condenser)[05.1995 - 12.1997] BU68 |
88550-25030 |
US $294.11 |
||
|
88550
|
88550
88550-25030 Motor Assy, Blower (For Condenser)[12.1997 -] BU68 |
88550-25030 |
US $294.11 |
||
|
88590
|
88590
88590-25030
Blower Assy, W/shroud
[05.1995 - 12.1997] BU68 |
88590-25030 |
— | ||
| replacement | |||||
|
88590
|
88590
88590-25031
Blower Assy, W/shroud
[05.1995 - 12.1997] BU68 |
88590-25031 |
— | ||
|
88590
|
88590
88590-25031
Blower Assy, W/shroud
[12.1997 -] BU68..N |
88590-25031 |
— | ||
|
88605J
|
88605J
88605-25110
Harness Sub-Assy, Air Conditioner Wiring
[05.1995 -] BU68,RZU68 |
88605-25110 |
— | ||
|
88711
|
88711
88711-25190 Hose, Cooler Refrigerant Discharge, No.1[05.1995 -] BU68 |
88711-25190 |
US $214.03 |
||
|
88712
|
88712
88712-25240 Hose, Cooler Refrigerant Suction, No.1[05.1995 -] BU68 |
88712-25240 |
US $227.14 |
||
|
88715A
|
88715A
88715-25130 Pipe, Cooler Refrigerant Discharge, A[05.1995 -] BU68 |
88715-25130 |
US $51.40 |
||
|
88716A
|
88716A
88721-25110 Pipe, Cooler Refrigerant Liquid, A[05.1995 -] BU68 |
88721-25110 |
US $174.72 |
||
|
88716B
|
88716B
88716-25170 Pipe, Cooler Refrigerant Liquid, B[05.1995 -] BU68,RZU68 |
88716-25170 |
US $237.33 |
||
|
88717E
|
88717E
88717-25180 Pipe, Cooler Refrigerant Suction, E[05.1995 -] BU68 |
88717-25180 |
US $138.32 |
||
|
88723B
|
88723B
88723-20030 Plate, Caution, No.1[05.1995 -] BU68,LH8#,LY15#,RZU68 |
88723-20030 |
US $4.19 |
||
| replacement | |||||
|
88723B
|
88723B
88733-30040
Label, Cooler Service Caution
[05.1995 -] BU68,LH8#,LY15#,RZU68 |
88733-30040 |
— | ||
|
8871890A13
|
8871890A13
88718-90A13
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A13 |
— | ||
|
5869131620
|
5869131620
58691-31620
Sheet, Silencer
|
58691-31620 |
— | ||
|
8864520050
|
8864520050
88645-20050
Switch, Pressure
|
88645-20050 |
— | ||
|
8871417050
|
8871417050
88714-17050
Hose, Cooler Refrigerant Liquid, No.1
|
88714-17050 |
— | ||
|
8871495703
|
8871495703
88714-95703
Insulator, Cooler Refrigerant Hose, No.1
|
88714-95703 |
— | ||
| replacement | |||||
|
8871495703
|
8871495703
88714-16040
Insulator, Cooler Refrigerant Pipe, No.1
|
88714-16040 |
— | ||
|
8871822670
|
8871822670
88718-22670
Clamp(For Cooler Refrigerant Hose), No.1
|
88718-22670 |
— | ||
|
8871825070
|
8871825070
88718-25070
Pipe, Cooler Refrigerant Suction, No.2
|
88718-25070 |
— | ||
|
8871825080
|
8871825080
88718-25080
Pipe, Cooler Refrigerant Suction, No.2
|
88718-25080 |
— | ||
|
8871825090
|
8871825090
88718-25090
Pipe, Cooler Refrigerant Suction, No.2
|
88718-25090 |
— | ||
|
8871825100
|
8871825100
88718-25100
Pipe, Cooler Refrigerant Suction, No.2
|
88718-25100 |
— | ||
|
8871825140
|
8871825140
88718-25140
Pipe, Cooler Refrigerant Suction, No.2
|
88718-25140 |
— | ||
|
9009902133
|
9009902133
90099-02133
New Genuine Part
|
90099-02133 |
— | ||
|
9009904957
|
9009904957
90099-04957
New Genuine Part
|
90099-04957 |
— | ||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.62 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.67 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.03 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.52 |
||
|
9009914122
|
9009914122
90099-14122 O-RING |
90099-14122 |
from US $1.18 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9046108471
|
9046108471
90461-08471
New Genuine Part
|
90461-08471 |
— | ||
|
9046708011
|
9046708011
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
9046708011
|
9046708011
90467-08011-TH CLIP |
90467-08011-TH |
US $0.30 |
||
|
9046708011
|
9046708011
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) |
90467-08011-83 |
US $0.51 |
||
|
9151160625
|
9151160625
91511-60625
Bolt(For Cylinder Head Cover)
|
91511-60625 |
— | ||
| replacement | |||||
|
9151160625
|
9151160625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.76 |
||
|
9151160630
|
9151160630
91511-60630 BOLT |
91511-60630 |
US $2.15 |
||
|
9161560825
|
9161560825
91615-60825
Bolt(For Intake Manifold To Exhaust Manifold)
|
91615-60825 |
— | ||
| replacement | |||||
|
9161560825
|
9161560825
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9162160620
|
9162160620
91621-60620 Bolt, W/washer(For Repair Actuator Set) |
91621-60620 |
US $0.69 |
||
|
9164281225
|
9164281225
91642-81225 New Genuine Part |
91642-81225 |
US $4.66 |
||
|
9338516012
|
9338516012
93385-16012 New Genuine Part |
93385-16012 |
US $0.96 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
|
9354014012
|
9354014012
93540-14012 New Genuine Part |
93540-14012 |
US $2.15 |
||
