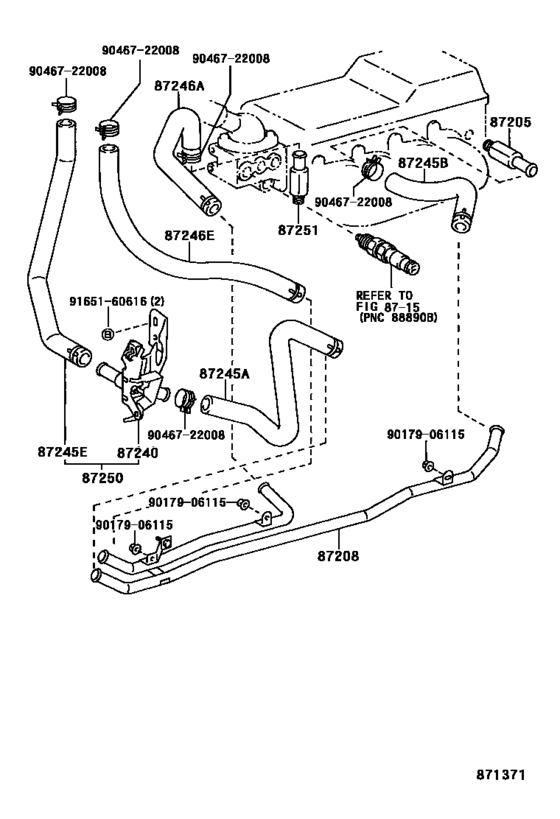

Heating & Air Conditioning - Water Piping ([05.1995 - ] (9505- )BU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87205
|
87205
87251-30200 Union(For Water By-Pass Hose)[05.1995 -] BU68 |
87251-30200 |
from US $5.24 |
||
|
87208
|
87208
87208-25120
Pipe Sub-Assy, Heater Water
[05.1995 -] BU68 |
87208-25120 |
— | ||
|
87240
|
87240
87240-95405
Valve Assy, Heater Water
[05.1995 -] BU68,LH8#,LY15# |
87240-95405 |
— | ||
| replacement | |||||
|
87240
|
87240
87240-95407
Valve Assy, Heater Water
[05.1995 -] BU68,LH8#,LY15# |
87240-95407 |
— | ||
|
87245A
|
87245A
87245-25290 Hose, Heater Water, Inlet A[05.1995 -] BU68 |
87245-25290 |
US $16.31 |
||
|
87245B
|
87245B
87245-25260 Hose, Heater Water, Inlet B[05.1995 -] BU68 |
87245-25260 |
US $14.41 |
||
|
87245E
|
87245E
87245-25300 Hose, Heater Water, Inlet E[05.1995 -] BU68,RZU68 |
87245-25300 |
US $21.69 |
||
|
87246A
|
87246A
87245-25270 Hose, Heater Water, Outlet A[05.1995 -] BU68 |
87245-25270 |
US $17.47 |
||
|
87246E
|
87246E
99556-30500 Hose, Heater Water, Inlet A[05.1995 -] BU68 ＊Ｈ，Ｌ＝３１０ |
99556-30500 |
from US $16.17 |
||
|
87250
|
87250
87250-25010 Hose And Valve Assy[05.1995 -] BU68,RZU68 |
87250-25010 |
US $62.32 |
||
|
87251
|
87251
87251-30200 Union(For Water By-Pass Hose)[05.1995 -] BU68,LH8#,LY15# |
87251-30200 |
from US $5.24 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9046722008
|
9046722008
90467-22008
Clip(For Water By-Pass Hose No.1)
|
90467-22008 |
— | ||
| replacement | |||||
|
9046722008
|
9046722008
90467-22011 Clip(For Water By-Pass Hose No.1) |
90467-22011 |
from US $3.25 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.91 |
||
