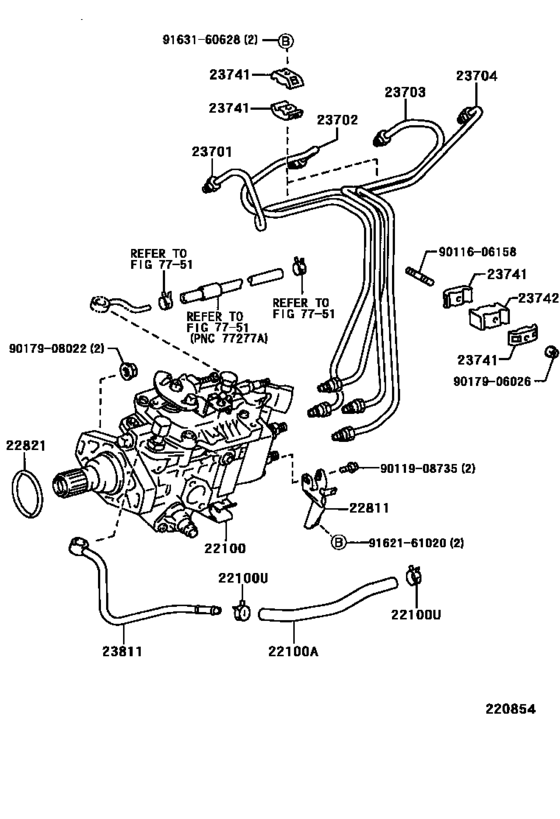

Injection Pump Assembly ([05.1995 - ] (9505- )3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-5C150 Pump Assy, Injection Or Supply[05.1995 - 10.1996] 3B..BU68 |
22100-5C150 |
US $3,683.68 |
||
|
22100
|
22100
22100-5C400 Pump Assy, Injection Or Supply[10.1996 -] 3B..BU68 |
22100-5C400 |
US $4,105.92 |
||
|
22100A
|
22100A
23271-58030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[05.1995 -] 3B..BU68 |
23271-58030 |
US $13.25 |
||
|
22100U
|
22100U
96132-41500 Clip(For Ventilation Tube)[05.1999 -] 3B..BU68 |
96132-41500 |
from US $1.44 |
||
|
22100U
|
22100U
96134-41500 Clip(For Ventilation Hose No.2)[05.1995 - 05.1999] 3B..BU68 |
96134-41500 |
US $1.89 |
||
| replacement | |||||
|
22100U
|
22100U
96133-41500 Clamp Or Clip(For Air Hose, No.5)[05.1995 - 05.1999] 3B..BU68 |
96133-41500 |
from US $2.30 |
||
|
22811
|
22811
22811-58030 Stay, Injection Pump, No.1[05.1995 -] 3B..BU68 |
22811-58030 |
US $14.41 |
||
| replacement | |||||
|
22811
|
22811
22811-58031 Stay, Injection Pump, No.1INJECTION PUMP, NO.1 [05.1995 -] 3B..BU68 |
22811-58031 |
US $8.88 |
||
|
22821
|
22821
90301-49003 Gasket, Injection Pump[05.1995 -] 3B..BU68 |
90301-49003 |
from US $2.15 |
||
|
23701
|
23701
23701-58011
Pipe Sub-Assy, Injection, No.1
[05.1995 -] 3B..BU68 |
23701-58011 |
— | ||
|
23702
|
23702
23702-58011
Pipe Sub-Assy, Injection, No.2
[05.1995 -] 3B..BU68 |
23702-58011 |
— | ||
|
23703
|
23703
23703-58011
Pipe Sub-Assy, Injection, No.3
[05.1995 -] 3B..BU68 |
23703-58011 |
— | ||
|
23704
|
23704
23704-58011
Pipe Sub-Assy, Injection, No.4
[05.1995 -] 3B..BU68 |
23704-58011 |
— | ||
|
23741
|
23741
23741-58010 Clamp, Injection Pipe, No.1[05.1995 -] 3B..BU68 |
23741-58010 |
from US $1.88 |
||
|
23742
|
23742
23741-56020
Clamp, Injection Pipe, No.2
[05.1995 - 05.1996] 3B..BU68 |
23741-56020 |
— | ||
| replacement | |||||
|
23742
|
23742
23741-56021 Clamp, Injection Pipe, No.2[05.1995 - 05.1996] 3B..BU68 |
23741-56021 |
US $4.89 |
||
|
23742
|
23742
23741-56021 Clamp, Injection Pipe, No.2[05.1996 -] 3B..BU68 |
23741-56021 |
US $4.89 |
||
|
23811
|
23811
23811-58010 Pipe, Fuel(For Fuel Filter To Injection Pump)[05.1995 -] 3B..BU68 |
23811-58010 |
US $58.82 |
||
|
9011606158
|
9011606158
90116-06158 New Genuine Part |
90116-06158 |
US $1.46 |
||
|
9011908735
|
9011908735
90119-08735 New Genuine Part |
90119-08735 |
US $1.75 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.48 |
||
|
9162161020
|
9162161020
91621-61020
Bolt(For Transaxle & Engine Setting)
|
91621-61020 |
— | ||
| replacement | |||||
|
9162161020
|
9162161020
91622-B1020 Bolt(For Transaxle & Engine Setting) |
91622-B1020 |
US $2.15 |
||
|
9163160628
|
9163160628
91631-60628 New Genuine Part |
91631-60628 |
US $1.46 |
||
| replacement | |||||
|
9163160628
|
9163160628
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.05 |
||
