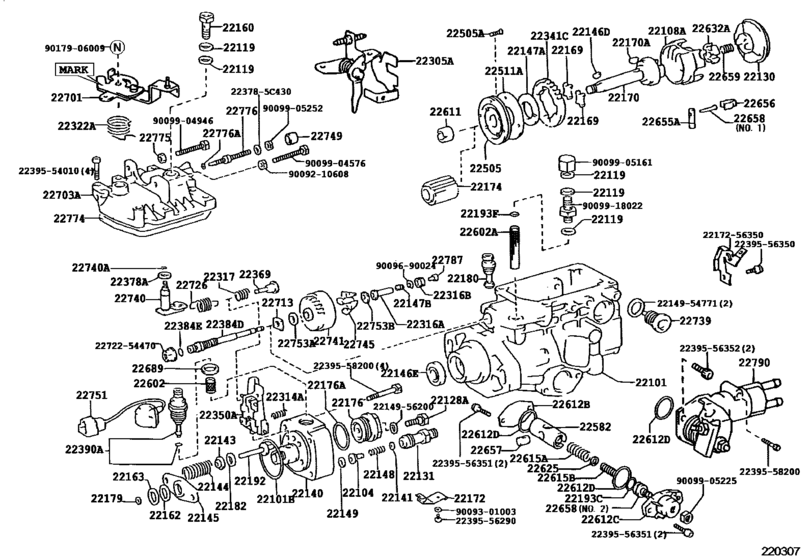

Injection Pump Body ([05.1995 - ] (9505- )3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22101-54770 Housing Sub-Assy, Injection Pump[05.1995 - 10.1996] 3B..BU68 |
22101-54770 |
US $170.39 |
||
|
22101
|
22101
22101-64270 Housing Sub-Assy, Injection Pump[10.1996 -] 3B..BU68 |
22101-64270 |
US $464.06 |
||
|
22101B
|
22101B
90099-14053 Ring, O(For Injection Pump Housing)[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
90099-14053 |
from US $3.84 |
||
|
22104
|
22104
22104-17010 Valve Sub-Assy, Injection Pump Delivery[05.1995 -] 3B..BU68 |
22104-17010 |
from US $44.38 |
||
|
22108A
|
22108A
22108-54010
Ring Sub-Assy, Roller
[05.1995 - 10.1996] 3B..BU68 |
22108-54010 |
— | ||
|
22108A
|
22108A
22108-54180
Ring Sub-Assy, Roller
[10.1996 -] 3B..BU68 |
22108-54180 |
— | ||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
90201-12109 |
from US $1.25 |
||
|
22128A
|
22128A
22128-54010
Bolt, Distributive Head
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22128-54010 |
— | ||
|
22130
|
22130
22130-5C150
Camplate Sub-Assy, Face
[05.1995 -] 3B..BU68 |
22130-5C150 |
— | ||
|
22131
|
22131
22131-54730
Holder, Delivery Valve
[05.1995 -] 3B..BU68 |
22131-54730 |
— | ||
|
22140
|
22140
22140-5C150
Head Sub-Assy, Distributive Pump
[05.1995 - 10.1996] 3B..BU68 |
22140-5C150 |
— | ||
|
22140
|
22140
22140-5C400 Head Sub-Assy, Distributive Pump[10.1996 -] 3B..BU68 |
22140-5C400 |
US $415.72 |
||
|
22141
|
22141
22141-54010
Seat, Delivery Valve Spring
[05.1995 -] 3B..BU68 |
22141-54010 |
— | ||
|
22143
|
22143
22143-54010
Seat, Spring Upper
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22143-54010 |
— | ||
|
22144
|
22144
22144-54190 Spring, Pump Plunger[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22144-54190 |
US $7.60 |
||
|
22145
|
22145
22145-54010
Seat, Spring, Lower
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22145-54010 |
— | ||
|
22146D
|
22146D
90099-13018 Key(For Drive Gear)[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
90099-13018 |
US $7.71 |
||
|
22146E
|
22146E
22544-64740 Seal, Oil, Injection Pump Camshaft[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22544-64740 |
from US $3.32 |
||
|
22147A
|
22147A
22161-54010 Washer, Drive Shaft[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22161-54010 |
US $6.99 |
||
|
22147B
|
22147B
22147-54290
Ring, Governor Sleeve
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22147-54290 |
— | ||
|
22148
|
22148
22148-54010 Spring, Delivery Valve[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22148-54010 |
from US $1.40 |
||
|
22149
|
22149
22149-56351 Gasket, Delivery Valve[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22149-56351 |
US $0.70 |
||
|
22160
|
22160
22160-64010 Screw Sub-Assy, Overflow[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22160-64010 |
US $25.90 |
||
|
22162
|
22162
22162-54010 Plate, Plunger Upper[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22162-54010 |
US $3.52 |
||
|
22163
|
22163
22163-54010 Plate, Plunger Lower[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22163-54010 |
from US $2.85 |
||
|
22169
|
22169
22169-54180
Joint, Rubber
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22169-54180 |
— | ||
|
22170
|
22170
22170-54180 Shaft Sub-Assy, Drive[05.1995 -] 3B..BU68 |
22170-54180 |
US $47.17 |
||
|
22170A
|
22170A
90099-13017 Key(For Drive Gear)[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
90099-13017 |
US $8.80 |
||
|
22172
|
22172
22172-56291
Clip, Connector Support, Solenoid
[05.1995 -] 3B..BU68 |
22172-56291 |
— | ||
|
22174
|
22174
22174-58201
Shaft, Spline
[05.1995 -] 3B..BU68 |
22174-58201 |
— | ||
|
22176
|
22176
22176-54020 Plug, Distributive Head[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22176-54020 |
from US $10.48 |
||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[10.1996 -] 3B..BU68 |
22193-54772 |
from US $2.62 |
||
|
22176A
|
22176A
90099-14052
Ring, O(For Distributive Head Plug)
[05.1995 - 10.1996] 3B..BU68 |
90099-14052 |
— | ||
| replacement | |||||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[05.1995 - 10.1996] 3B..BU68 |
22193-54772 |
from US $2.62 |
||
|
22179
|
22179
22179-54010
Shim, Plunger Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝１．９; 3B..BU68 厚さ＝１．９ |
22179-54010 |
— | ||
|
22179
|
22179
22179-54011
Shim, Plunger Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝２．０; 3B..BU68 厚さ＝２．０ |
22179-54011 |
— | ||
|
22179
|
22179
22179-54012
Shim, Plunger Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝２．１; 3B..BU68 厚さ＝２．１ |
22179-54012 |
— | ||
|
22179
|
22179
22179-54013
Shim, Plunger Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝２．２; 3B..BU68 厚さ＝２．２ |
22179-54013 |
— | ||
|
22179
|
22179
22179-54014
Shim, Plunger Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝２．３; 3B..BU68 厚さ＝２．３ |
22179-54014 |
— | ||
|
22179
|
22179
22179-54015
Shim, Plunger Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝２．４; 3B..BU68 厚さ＝２．４ |
22179-54015 |
— | ||
|
22179
|
22179
22179-54016
Shim, Plunger Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝２．５; 3B..BU68 厚さ＝２．５ |
22179-54016 |
— | ||
|
22179
|
22179
22179-54017
Shim, Plunger Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝２．６; 3B..BU68 厚さ＝２．６ |
22179-54017 |
— | ||
|
22179
|
22179
22179-54018
Shim, Plunger Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝２．７; 3B..BU68 厚さ＝２．７ |
22179-54018 |
— | ||
|
22179
|
22179
22179-54019
Shim, Plunger Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝２．８; 3B..BU68 厚さ＝２．８ |
22179-54019 |
— | ||
|
22179
|
22179
22179-54020
Shim, Plunger Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝２．９; 3B..BU68 厚さ＝２．９ |
22179-54020 |
— | ||
|
22180
|
22180
22180-58200 Valve Sub-Assy, Regulator[05.1995 -] 3B..BU68 |
22180-58200 |
US $90.90 |
||
|
22182
|
22182
22182-54010
Plate, Tappet Adjusting Shim
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝０．５; 3B..BU68 厚さ＝０．５ |
22182-54010 |
— | ||
|
22182
|
22182
22183-54010
Plate, Tappet Adjusting Shim
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝０．８; 3B..BU68 厚さ＝０．８ |
22183-54010 |
— | ||
|
22182
|
22182
22184-54010
Plate, Tappet Adjusting Shim
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝１．０; 3B..BU68 厚さ＝１．０ |
22184-54010 |
— | ||
|
22182
|
22182
22185-54010
Plate, Tappet Adjusting Shim
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝１．２; 3B..BU68 厚さ＝１．２ |
22185-54010 |
— | ||
|
22182
|
22182
22186-54010
Plate, Tappet Adjusting Shim
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝１．５; 3B..BU68 厚さ＝１．５ |
22186-54010 |
— | ||
|
22182
|
22182
22187-54010
Plate, Tappet Adjusting Shim
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝１．８; 3B..BU68 厚さ＝１．８ |
22187-54010 |
— | ||
|
22182
|
22182
22188-54010 Plate, Tappet Adjusting Shim[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝２．０; 3B..BU68 厚さ＝２．０ |
22188-54010 |
US $4.16 |
||
|
22192
|
22192
22192-54010 Plate, Tappet Adjusting Shim[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22192-54010 |
US $11.97 |
||
|
22193C
|
22193C
22193-17020 Ring, O(For Lever Connecting Pin)[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22193-17020 |
from US $1.41 |
||
|
22193F
|
22193F
22193-5B320 Ring, O(For Fuel Injection Pump Filter)[10.1996 -] 3B..BU68 |
22193-5B320 |
from US $1.41 |
||
|
22305A
|
22305A
22305-56350
Idle-Up Sub-Assy
[10.1996 -] 3B..BU68 |
22305-56350 |
— | ||
|
22314A
|
22314A
22314-54010
Spring, Lever Support
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22314-54010 |
— | ||
|
22316A
|
22316A
22316-54290
Sleeve, Governor
[10.1996 - 02.1997] 3B..BU68 内径＝０．８０ |
22316-54290 |
— | ||
|
22316A
|
22316A
22316-54360
Sleeve, Governor
[05.1995 - 10.1996] 3B..BU68 内径＝０．７５ |
22316-54360 |
— | ||
| replacement | |||||
|
22316A
|
22316A
22316-6D050
Sleeve, Governor
[05.1995 - 10.1996] 3B..BU68 内径＝０．７５ |
22316-6D050 |
— | ||
|
22316A
|
22316A
22316-54630
Sleeve, Governor
[10.1996 - 02.1997] 3B..BU68 内径＝０．７０ |
22316-54630 |
— | ||
|
22316A
|
22316A
22316-54750
Sleeve, Governor
[10.1996 - 02.1997] 3B..BU68 内径＝０．６０ |
22316-54750 |
— | ||
|
22316A
|
22316A
22316-5B060
Sleeve, Governor
[10.1996 - 02.1997] 3B..BU68 内径＝０．６５ |
22316-5B060 |
— | ||
|
22316A
|
22316A
22316-5C151
Sleeve, Governor
[05.1995 - 10.1996] 3B..BU68 内径＝０．６５ |
22316-5C151 |
— | ||
|
22316A
|
22316A
22316-5C152
Sleeve, Governor
[05.1995 - 10.1996] 3B..BU68 内径＝０．７０ |
22316-5C152 |
— | ||
| replacement | |||||
|
22316A
|
22316A
22316-5B070
Sleeve, Governor
[05.1995 - 10.1996] 3B..BU68 内径＝０．７０ |
22316-5B070 |
— | ||
|
22316A
|
22316A
22316-6A041
Sleeve, Governor
[02.1997 -] 3B..BU68 内径＝０．８ |
22316-6A041 |
— | ||
|
22316A
|
22316A
22316-6A680
Sleeve, Governor
[10.1996 - 02.1997] 3B..BU68 内径＝０．７５ |
22316-6A680 |
— | ||
|
22316A
|
22316A
22316-6D050
Sleeve, Governor
[05.1995 - 10.1996] 3B..BU68 内径＝０．６０ |
22316-6D050 |
— | ||
|
22316B
|
22316B
90099-10148
Bearing, Ball(For Governor Sleeve)
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
90099-10148 |
— | ||
|
22317
|
22317
22317-54010
Spring, Governor Domper
[05.1995 -] 3B..BU68 |
22317-54010 |
— | ||
|
22322A
|
22322A
22322-54450
Spring, Return
[05.1995 -] 3B..BU68 |
22322-54450 |
— | ||
|
22341C
|
22341C
22341-54010
Gear, Governor Drive
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22341-54010 |
— | ||
|
22350A
|
22350A
22350-58200
Governor Assy, Torque Control
[05.1995 -] 3B..BU68 |
22350-58200 |
— | ||
|
22369
|
22369
22369-54010
Seat, Governor Spring
[05.1995 -] 3B..BU68; 3L,5L..LH8#,LY15#..MTM |
22369-54010 |
— | ||
|
22378A
|
22378A
22378-64010 Washer, Governor Thrust[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22378-64010 |
from US $0.42 |
||
|
22384D
|
22384D
22380-54020 Shaft, Governor[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22380-54020 |
US $29.35 |
||
|
22384E
|
22384E
90099-14049 Ring, O(For Governor Main Shaft)[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
90099-14049 |
US $2.15 |
||
|
22390A
|
22390A
22390-56290
Solenoid Assy, Fuel Cut
[05.1995 - 03.1997] 3B..BU68 |
22390-56290 |
— | ||
| replacement | |||||
|
22390A
|
22390A
22390-56291 Solenoid Assy, Fuel Cut[05.1995 - 03.1997] 3B..BU68 |
22390-56291 |
from US $108.33 |
||
|
22390A
|
22390A
22390-56291 Solenoid Assy, Fuel Cut[03.1997 -] 3B..BU68 |
22390-56291 |
from US $108.33 |
||
|
22505
|
22505
22505-54010 Pump Sub-Assy, Fuel Feed[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22505-54010 |
from US $104.83 |
||
|
22505A
|
22505A
90099-00723
Screw(For Fuel Feed Pump)
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
90099-00723 |
— | ||
|
22511A
|
22511A
22511-54020
Cover, Feed Pump
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22511-54020 |
— | ||
|
22582
|
22582
22582-5C150
Piston Assy, Timer
[05.1995 - 10.1996] 3B..BU68 |
22582-5C150 |
— | ||
|
22582
|
22582
22582-5C400 Piston Assy, Timer[10.1996 -] 3B..BU68 |
22582-5C400 |
US $52.44 |
||
|
22602
|
22602
22602-56350 Filter Sub-Assy, Fuel Injection Pump[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22602-56350 |
from US $10.31 |
||
|
22602A
|
22602A
22602-5B320 Filter Sub-Assy, Fuel Injection Pump, No.2[10.1996 -] 3B..BU68 |
22602-5B320 |
from US $13.93 |
||
|
22611
|
22611
22611-58200
Nut, Timer Round
[05.1995 -] 3B..BU68 |
22611-58200 |
— | ||
|
22612B
|
22612B
22612-56350
Cover, Timer
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22612-56350 |
— | ||
|
22612C
|
22612C
22612-17020
Cover, Timer
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22612-17020 |
— | ||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[05.1995 -] 3B..BU68 |
22193-17840 |
from US $2.62 |
||
|
22615A
|
22615A
22615-17030
Spring, Timer Outer
[05.1995 -] 3B..BU68 バネ定数＝１．７０，長さ＝２７．９; 5L..LH82..MTM;3L,5L..LH81,LY15# バネ定数＝１．７０，長さ＝２７．９,ＮＯ．２ |
22615-17030 |
— | ||
|
22615B
|
22615B
22615-5C120
Spring, Timer Inner
[05.1995 -] 3B..BU68 バネ定数＝０．１３，長さ＝３５．１ |
22615-5C120 |
— | ||
|
22615B
|
22615B
22615-5C150
Spring, Timer Inner
[05.1995 -] 3B..BU68 バネ定数＝０．１０，長さ＝３８．４ |
22615-5C150 |
— | ||
|
22615B
|
22615B
22615-5C151
Spring, Timer Inner
[05.1995 -] 3B..BU68 バネ定数＝０．１１，長さ＝３７．６ |
22615-5C151 |
— | ||
|
22615B
|
22615B
22615-5C153
Spring, Timer Outer
[05.1995 -] 3B..BU68 バネ定数＝０．１２，長さ＝３５．９ |
22615-5C153 |
— | ||
|
22615B
|
22615B
22615-5C154
Spring, Timer Inner
[05.1995 - 10.1996] 3B..BU68 バネ定数＝０．１４，長さ＝３５．０ |
22615-5C154 |
— | ||
|
22615B
|
22615B
22615-5C400
Spring, Timer Inner
[10.1996 -] 3B..BU68 バネ定数＝０．０９，長さ＝３７．８ |
22615-5C400 |
— | ||
|
22625
|
22625
22625-17020
Washer, Timer Adjusting
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22625-17020 |
— | ||
|
22632A
|
22632A
22632-54010 Coupling, Injection Pump[05.1995 -] 3B..BU68 |
22632-54010 |
from US $49.10 |
||
|
22655A
|
22655A
22655-54010
Pin, Timer Slide
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22655-54010 |
— | ||
|
22656
|
22656
22656-17840
Clip, Timer
[05.1995 -] 3B..BU68 |
22656-17840 |
— | ||
|
22657
|
22657
22657-54010
Clip, Timer
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22657-54010 |
— | ||
|
22658
|
22658
22658-17020
Stopper, Timer
[05.1995 -] 3L,5L..LH8#,LY15# ＮＯ．２; 3B..BU68 ＮＯ．２ |
22658-17020 |
— | ||
|
22658
|
22658
22658-17840
Stopper, Timer
[05.1995 -] 3B..BU68 ＮＯ．１ |
22658-17840 |
— | ||
|
22659
|
22659
22659-64150
Spring, Coupling
[05.1995 -] 3B..BU68 |
22659-64150 |
— | ||
|
22689
|
22689
22689-56350 Washer(For Swivel Nipple)[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22689-56350 |
from US $0.70 |
||
|
22701
|
22701
22701-58202
Lever Sub-Assy, Adjusting
[05.1995 -] 3B..BU68 MARK 386:ｲﾗｽﾄｻﾝｼﾖｳ,TYPE A=ANGLE OF 22 |
22701-58202 |
— | ||
|
22701
|
22701
22701-58203
Lever Sub-Assy, Adjusting
[05.1995 -] 3B..BU68 MARK 387:ｲﾗｽﾄｻﾝｼﾖｳ,TYPE B=ANGLE OF 29.5 |
22701-58203 |
— | ||
|
22701
|
22701
22701-5C150
Lever Sub-Assy, Adjusting
[05.1995 -] 3B..BU68 |
22701-5C150 |
— | ||
|
22703A
|
22703A
22703-54132
Cover Sub-Assy, Governor
[05.1995 -] 3B..BU68 |
22703-54132 |
— | ||
|
22713
|
22713
22713-54010
Washer, Governor Gear Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝１．０５; 3B..BU68 厚さ＝１．０５ |
22713-54010 |
— | ||
|
22713
|
22713
22714-54010
Washer, Governor Gear Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝１．２５; 3B..BU68 厚さ＝１．２５ |
22714-54010 |
— | ||
|
22713
|
22713
22715-54010
Washer, Governor Gear Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝１．４５; 3B..BU68 厚さ＝１．４５ |
22715-54010 |
— | ||
|
22713
|
22713
22716-54010
Washer, Governor Gear Adjusting
[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝１．６５; 3B..BU68 厚さ＝１．６５ |
22716-54010 |
— | ||
|
22713
|
22713
22717-54010 Washer, Governor Gear Adjusting[05.1995 -] 3L,5L..LH8#,LY15# 厚さ＝１．８５; 3B..BU68 厚さ＝１．８５ |
22717-54010 |
US $6.86 |
||
|
22726
|
22726
22726-58200
Spring, Speed Control
[05.1995 -] 3B..BU68 |
22726-58200 |
— | ||
|
22739
|
22739
22739-54020
Bolt, Governor Link Support
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22739-54020 |
— | ||
|
22740
|
22740
22740-58210
Shaft Sub-Assy, Governor Adjusting
[05.1995 -] 3B..BU68 SHAFT TO PIN 20.0 |
22740-58210 |
— | ||
|
22740
|
22740
22740-5C150
Shaft Sub-Assy, Governor Adjusting
[05.1995 -] 3B..BU68 SHAFT TO PIN 17.5 |
22740-5C150 |
— | ||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22193-54770 |
from US $1.98 |
||
|
22741
|
22741
22741-54020
Holder Sub-Assy, Flyweight
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22741-54020 |
— | ||
|
22745
|
22745
22745-54010 Flyweight, Distributive Pump[05.1995 - 04.1998] 3B..BU68 |
22745-54010 |
US $36.33 |
||
|
22745
|
22745
22745-5B640
Flyweight, Distributive Pump
[04.1998 -] 3B..BU68 |
22745-5B640 |
— | ||
|
22749
|
22749
22749-56350
Collar, Smoke Set Adjusting
[05.1995 -] 3B..BU68 |
22749-56350 |
— | ||
|
22751
|
22751
22751-5C020
Wire Sub-Assy, Fuel Cut Solenoid
[05.1995 -] 3B..BU68 |
22751-5C020 |
— | ||
|
22753A
|
22753A
22753-54010
Washer, Flyweight, No.1
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22753-54010 |
— | ||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22753-54020 |
US $1.54 |
||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22774-54270 |
from US $3.14 |
||
|
22775
|
22775
22775-77121
Nut, Rock
[05.1995 -] 3B..BU68 |
22775-77121 |
— | ||
|
22776
|
22776
22776-54110 Screw, Smoke Set Adjusting[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
22776-54110 |
US $4.72 |
||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[10.1996 -] 3B..BU68 |
22193-54771 |
US $1.27 |
||
|
22776A
|
22776A
90099-14047
Ring, O(For Smoke Set Screw)
[05.1995 - 10.1996] 3B..BU68 |
90099-14047 |
— | ||
| replacement | |||||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[05.1995 - 10.1996] 3B..BU68 |
22193-54771 |
US $1.27 |
||
|
22787
|
22787
22787-54026
Plug, Governor Sleeve
[05.1995 -] 3B..BU68 長さ＝３．３ |
22787-54026 |
— | ||
|
22787
|
22787
22787-54027
Plug, Governor Sleeve
[05.1995 -] 3L,5L..LH8#,LY15# 長さ＝３．４; 3B..BU68 長さ＝３．４ |
22787-54027 |
— | ||
|
22787
|
22787
22787-64641
Plug, Governor Sleeve
[10.1996 -] 3B..BU68 長さ＝３．０ |
22787-64641 |
— | ||
|
22787
|
22787
22787-64642
Plug, Governor Sleeve
[10.1996 -] 3B..BU68 長さ＝３．１ |
22787-64642 |
— | ||
|
22787
|
22787
22787-64643
Plug, Governor Sleeve
[10.1996 -] 3B..BU68 長さ＝３．２ |
22787-64643 |
— | ||
|
22787
|
22787
22787-64660
Plug, Governor Sleeve
[05.1995 -] 3B..BU68 長さ＝２．２ |
22787-64660 |
— | ||
|
22787
|
22787
22787-64661
Plug, Governor Sleeve
[05.1995 -] 3B..BU68 長さ＝２．３ |
22787-64661 |
— | ||
|
22787
|
22787
22787-64662
Plug, Governor Sleeve
[05.1995 -] 3B..BU68 長さ＝２．４ |
22787-64662 |
— | ||
|
22787
|
22787
22787-64663
Plug, Governor Sleeve
[05.1995 -] 3B..BU68 長さ＝２．５ |
22787-64663 |
— | ||
|
22787
|
22787
22787-64664
Plug, Governor Sleeve
[05.1995 -] 3B..BU68 長さ＝２．６ |
22787-64664 |
— | ||
|
22787
|
22787
22787-64665
Plug, Governor Sleeve
[05.1995 -] 3B..BU68 長さ＝２．７ |
22787-64665 |
— | ||
|
22790
|
22790
22790-5C400
Cover Sub-Assy, Timer
[10.1996 -] 3B..BU68 |
22790-5C400 |
— | ||
|
223785C430
|
223785C430
22378-5C430
Washer, Governor Thrust
|
22378-5C430 |
— | ||
|
2214954771
|
2214954771
22149-54771
Gasket, Delivery Valve
|
22149-54771 |
— | ||
|
2214956200
|
2214956200
22149-56200 Gasket, Delivery Valve |
22149-56200 |
US $1.40 |
||
|
2217256350
|
2217256350
22172-56350
Clip, Connector Support, Solenoid
|
22172-56350 |
— | ||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2239556290
|
2239556290
22395-56290
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56290 |
— | ||
|
2239556350
|
2239556350
22395-56350
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56350 |
— | ||
|
2239556351
|
2239556351
22395-56351
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56351 |
— | ||
|
2239556352
|
2239556352
22395-56352
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56352 |
— | ||
|
2239558200
|
2239558200
22395-58200
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-58200 |
— | ||
|
2272254470
|
2272254470
22722-54470
Nut, Governor Shaft Rock
|
22722-54470 |
— | ||
|
9009210608
|
9009210608
90092-10608
New Genuine Part
|
90092-10608 |
— | ||
|
9009301003
|
9009301003
90093-01003
New Genuine Part
|
90093-01003 |
— | ||
|
9009690024
|
9009690024
90096-90024
Ring, O(For Stopper Lever)
|
90096-90024 |
— | ||
|
9009904576
|
9009904576
90099-04576
BOLT
|
90099-04576 |
— | ||
|
9009904946
|
9009904946
90099-04946
Ring, O(For Bellows Cover)
|
90099-04946 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009905225
|
9009905225
90099-05225
New Genuine Part
|
90099-05225 |
— | ||
|
9009905252
|
9009905252
90099-05252
New Genuine Part
|
90099-05252 |
— | ||
|
9009918022
|
9009918022
90099-18022
SCREW
|
90099-18022 |
— | ||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.63 |
||
