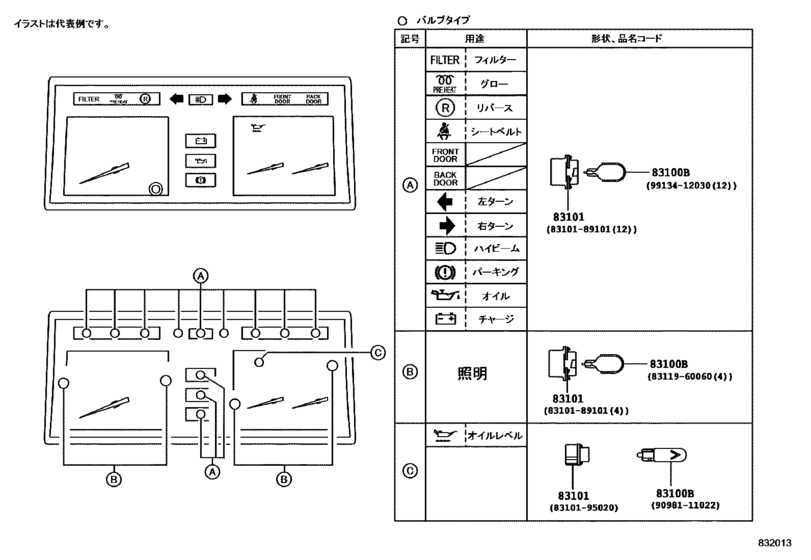

Meter ([05.1995 - ] ﾊﾞﾙﾌﾞ & ｿｹｯﾄ (9505- )BU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83119-60060 Bulb, Combination Meter, No.1[05.1995 -] BU68 ２４Ｖ ３．０Ｗ，グリーン キャップ |
83119-60060 |
US $3.06 |
||
|
83100B
|
83100B
90981-11022 Bulb, Ash Receptacle Lamp[05.1995 -] BU68 ２４Ｖ １．４Ｗ |
90981-11022 |
US $3.05 |
||
|
83100B
|
83100B
99134-12030 Bulb, Position Indicator Lamp[05.1995 -] BU68 ２４Ｖ ３Ｗ |
99134-12030 |
from US $2.15 |
||
|
83101
|
83101
83101-89101 Socket Sub-Assy, Combination Meter Bulb[05.1995 -] BU68 |
83101-89101 |
US $9.32 |
||
|
83101
|
83101
83101-95020 Socket Sub-Assy, Combination Meter Bulb[05.1995 -] BU68 |
83101-95020 |
US $5.73 |
