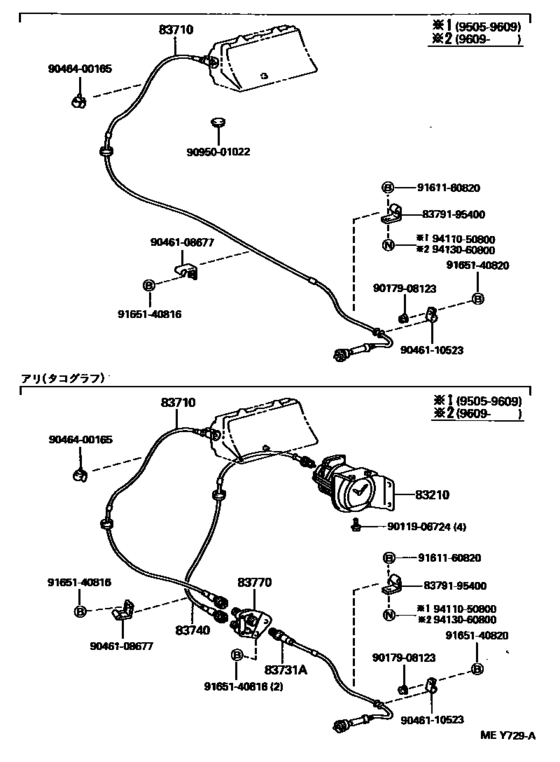

Meter ([05.1995 - ] ﾒ-ﾀｹ-ﾌﾞﾙ,ｱﾀﾞﾌﾟﾀ & ﾀｺｸﾞﾗﾌ (9505- )BU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83210
|
83210
83210-25010 Tachograph Assy[05.1995 -] BU68 |
83210-25010 |
US $1,514.24 |
||
|
83710
|
83710
83710-25250 Cable Assy, Speedometer Drive, No.1[05.1995 -] BU68,RZU68..N; BU68..D ｱﾘ(ﾀｺｸﾞﾗﾌ) |
83710-25250 |
US $33.49 |
||
|
83731A
|
83731A
83731-25010 Cable, Speed Control[05.1995 -] BU68,RZU68 |
83731-25010 |
US $39.89 |
||
|
83740
|
83740
83740-25010 Cable Assy, Tachograph Drive[05.1995 -] BU68,RZU68 |
83740-25010 |
US $43.83 |
||
|
83770
|
83770
83770-25010 Adapter Assy, Speedometer Cable[05.1995 -] BU68,RZU68 |
83770-25010 |
US $282.46 |
||
|
8379195400
|
8379195400
83791-95400 New Genuine Part |
83791-95400 |
US $12.38 |
||
|
9011906724
|
9011906724
90119-06724 BOLT WWASHER |
90119-06724 |
US $1.25 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.78 |
||
|
9046108677
|
9046108677
90461-08677 New Genuine Part |
90461-08677 |
US $3.64 |
||
|
9046110523
|
9046110523
90461-10523 New Genuine Part |
90461-10523 |
US $3.93 |
||
|
9046400165
|
9046400165
90464-00165 Clamp, No.2(For Luggage Door Lock Control Cable) |
90464-00165 |
US $1.40 |
||
|
9095001022
|
9095001022
90950-01022
Plug, Hole, No.1(For Dash Panel)
|
90950-01022 |
— | ||
| replacement | |||||
|
9095001022
|
9095001022
90950-01882 Cover, Hole |
90950-01882 |
from US $1.96 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.16 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.67 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
