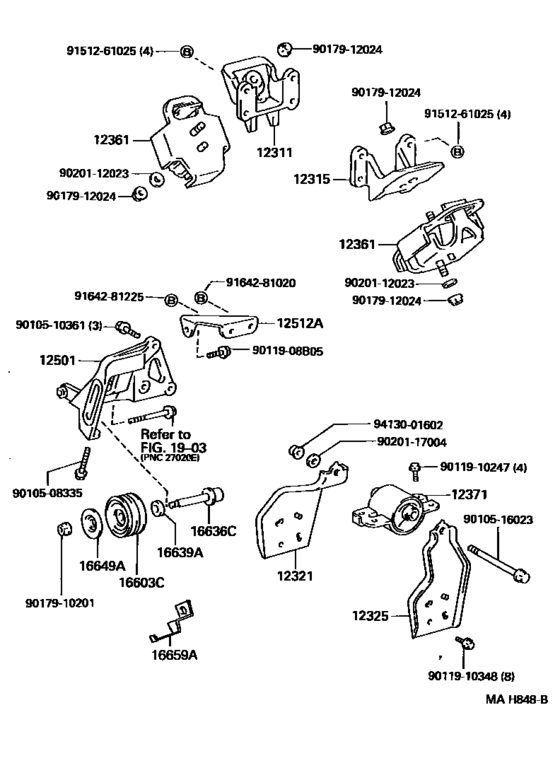

Mounting ([05.1995 - ] (9505- )3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-56040 Bracket, Engine Mounting, Front No.1 Rh[05.1995 -] 3B..BU68 |
12311-56040 |
US $19.92 |
||
|
12315
|
12315
12311-56040 Bracket, Engine Mounting, Front No.1 Rh[05.1995 -] 3B..BU68 |
12311-56040 |
US $19.92 |
||
|
12321
|
12321
12321-56080 Bracket, Engine Mounting, Rear, No.1[05.1995 -] 3B..BU68 |
12321-56080 |
US $44.84 |
||
|
12325
|
12325
12325-56070 Bracket, Engine Mounting, No.3[05.1995 -] 3B..BU68 |
12325-56070 |
US $44.84 |
||
|
12361
|
12361
12361-56071 Insulator, Engine Mounting, Front[05.1995 -] 3B..BU68 右側 |
12361-56071 |
from US $110.18 |
||
|
12361
|
12361
12362-56011 Insulator, Engine Mounting, Front[05.1995 -] 3B..BU68 左側 |
12362-56011 |
from US $102.52 |
||
|
12371
|
12371
12371-56041 Insulator, Engine Mounting, Rear No.1[05.1995 -] 3B..BU68 |
12371-56041 |
US $139.78 |
||
|
12501
|
12501
12501-58030 Bracket Sub-Assy, Alternator[05.1995 -] 3B..BU68 |
12501-58030 |
US $71.78 |
||
|
12512A
|
12512A
12512-58020 Bracket, Alternator, No.2[05.1995 -] 3B..BU68..N; 3B..BU68..D ｶﾝﾚｲﾁ ｼﾖｳ |
12512-58020 |
US $23.59 |
||
|
16603C
|
16603C
16603-58010 Pulley Sub-Assy, Idler[05.1995 -] 3B..BU68 |
16603-58010 |
US $142.68 |
||
|
16636C
|
16636C
16636-58010 Shaft, Idler Pulley, No.1[05.1995 - 05.1999] 3B..BU68 |
16636-58010 |
US $14.41 |
||
| replacement | |||||
|
16636C
|
16636C
16636-58011
Shaft, Idler Pulley, No.1
[05.1995 - 05.1999] 3B..BU68 |
16636-58011 |
— | ||
|
16636C
|
16636C
16636-58020 Shaft, Idler Pulley, No.1[05.1999 -] 3B..BU68 |
16636-58020 |
US $11.94 |
||
| replacement | |||||
|
16636C
|
16636C
16636-58021 Shaft, Idler Pulley, No.1[05.1999 -] 3B..BU68 |
16636-58021 |
US $8.88 |
||
|
16639A
|
16639A
16639-58010 Spacer, Idler Pulley[05.1995 -] 3B..BU68 |
16639-58010 |
US $7.88 |
||
|
16649A
|
16649A
16649-58010 Plate, Idler Pulley Cover[05.1995 -] 3B..BU68 |
16649-58010 |
US $6.09 |
||
|
16659A
|
16659A
16659-58010 Plate, Idler Pulley Cover, No.2[05.1995 - 07.1996] 3B..BU68 |
16659-58010 |
US $5.82 |
||
| replacement | |||||
|
16659A
|
16659A
90201-12074 Plate, Idler Pulley Cover, No.2[05.1995 - 07.1996] 3B..BU68 |
90201-12074 |
US $4.89 |
||
|
16659A
|
16659A
90201-12074 Plate, Idler Pulley Cover, No.2[07.1996 - 05.1999] 3B..BU68 |
90201-12074 |
US $4.89 |
||
|
9011908B05
|
9011908B05
90119-08B05 New Genuine Part |
90119-08B05 |
US $2.51 |
||
|
9010508335
|
9010508335
90105-08335 New Genuine Part |
90105-08335 |
US $2.04 |
||
|
9010510361
|
9010510361
90105-10361 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10361 |
from US $0.93 |
||
|
9010516023
|
9010516023
90105-16023 New Genuine Part |
90105-16023 |
US $10.31 |
||
|
9011910247
|
9011910247
90119-10247 BOLT |
90119-10247 |
US $3.58 |
||
|
9011910348
|
9011910348
90119-10348 New Genuine Part |
90119-10348 |
US $2.62 |
||
|
9017910201
|
9017910201
90179-10201 NUT |
90179-10201 |
from US $1.48 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.06 |
||
|
9020112023
|
9020112023
90201-12023 New Genuine Part |
90201-12023 |
US $4.95 |
||
|
9020117004
|
9020117004
90201-17004 New Genuine Part |
90201-17004 |
US $1.31 |
||
|
9151261025
|
9151261025
91512-61025
BOLT WASHER BASED H
|
91512-61025 |
— | ||
| replacement | |||||
|
9151261025
|
9151261025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.93 |
||
|
9164281020
|
9164281020
91642-81020
New Genuine Part
|
91642-81020 |
— | ||
| replacement | |||||
|
9164281020
|
9164281020
91642-K1020 BOLT WWASHER |
91642-K1020 |
US $3.05 |
||
|
9164281225
|
9164281225
91642-81225 New Genuine Part |
91642-81225 |
US $4.66 |
||
|
9413001602
|
9413001602
94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting) |
94130-01602 |
from US $0.97 |
||
