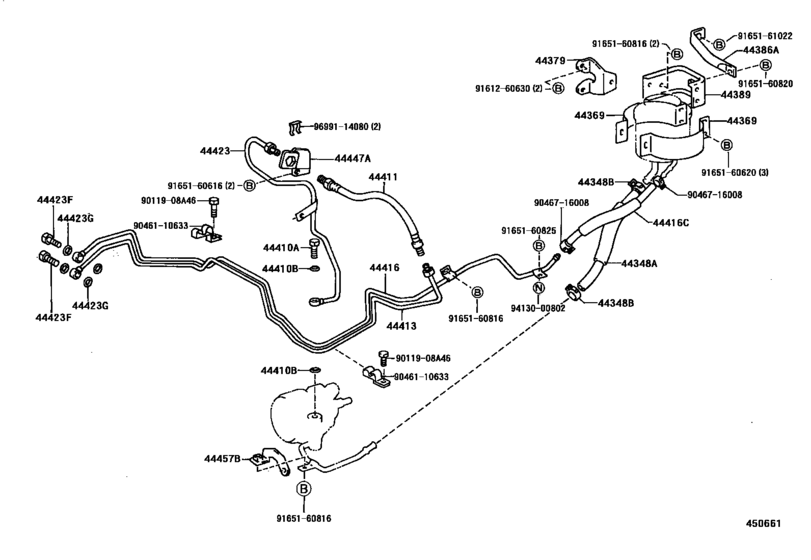

Power Steering Tube ([05.1995 - ] (9505- )BU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44348A
|
44348A
44348-36210 Hose, Oil Reservoir To Pump, No.1[05.1995 -] BU68 |
44348-36210 |
US $33.49 |
||
|
44348B
|
44348B
90467-21005
Clip(For Suction Hose No.1)
[05.1995 -] BU68 |
90467-21005 |
— | ||
| replacement | |||||
|
44348B
|
44348B
90467-21010 Clip(For Ventilation Hose No.2)[05.1995 -] BU68 |
90467-21010 |
from US $2.43 |
||
|
44369
|
44369
44369-36020 Bracket, Oil Reservoir, No.1[05.1995 -] BU68 |
44369-36020 |
US $21.11 |
||
|
44379
|
44379
44379-37020 Bracket, Oil Reservoir, No.2[05.1995 -] BU68 |
44379-37020 |
US $27.37 |
||
|
44386A
|
44386A
44386-36100 Support, Oil Reservoir[05.1995 -] BU68 |
44386-36100 |
US $17.76 |
||
|
44389
|
44389
44389-36060 Bracket, Oil Reservoir, No.3[05.1995 -] BU68 |
44389-36060 |
US $14.41 |
||
|
44410A
|
44410A
90401-16027 Bolt, Union(For Pressure Feed Tube)[05.1995 -] BU68 |
90401-16027 |
from US $8.42 |
||
|
44410B
|
44410B
90430-16168 Gasket(For Pressure Feed Tube)[05.1995 -] BU68 |
90430-16168 |
from US $1.10 |
||
|
44411
|
44411
44411-37030 Hose, Pressure Feed[05.1995 -] BU68 |
44411-37030 |
US $126.67 |
||
| replacement | |||||
|
44411
|
44411
44411-37032 Hose, Pressure Feed[05.1995 -] BU68 |
44411-37032 |
US $126.67 |
||
|
44413
|
44413
44413-25070 Tube, Pressure Feed, No.1[05.1995 -] BU68,RZU68 |
44413-25070 |
US $67.56 |
||
|
44416
|
44416
44416-25070 Tube, Return(For Steering Gear Outlet)[05.1995 -] BU68 |
44416-25070 |
US $131.04 |
||
|
44416C
|
44416C
90445-18144 Hose(For Return Tube To Reservior)[05.1995 -] BU68 |
90445-18144 |
US $11.50 |
||
|
44423
|
44423
44423-37040 Tube, Oil Pump To Gear Box[05.1995 - 01.1996] BU68 |
44423-37040 |
US $43.83 |
||
| replacement | |||||
|
44423
|
44423
44423-37041 Tube, Oil Pump To Gear Box[05.1995 - 01.1996] BU68 |
44423-37041 |
US $43.83 |
||
|
44423
|
44423
44423-37041 Tube, Oil Pump To Gear Box[01.1996 -] BU68 |
44423-37041 |
US $43.83 |
||
|
44423F
|
44423F
90401-14003 Bolt, Union(For Oil Cooler)[05.1995 -] BU68,RZU68 |
90401-14003 |
US $6.63 |
||
|
44423G
|
44423G
90430-14235 Gasket, W/head Taper Screw Plug[05.1995 -] BU68,RZU68 |
90430-14235 |
US $4.12 |
||
|
44447A
|
44447A
44447-37030 Bracket, Hose Support, No.1[05.1995 -] BU68 |
44447-37030 |
US $11.36 |
||
|
44457B
|
44457B
44457-36040 Bracket, Tube Support, Vane Pump[05.1995 -] BU68 |
44457-36040 |
US $9.32 |
||
|
9011908A46
|
9011908A46
90119-08A46 BOLT WWASHER |
90119-08A46 |
US $1.43 |
||
|
9046110633
|
9046110633
90461-10633 CLAMP |
90461-10633 |
US $7.72 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.36 |
||
|
9161260630
|
9161260630
91612-60630 New Genuine Part |
91612-60630 |
US $1.16 |
||
| replacement | |||||
|
9161260630
|
9161260630
91611-60630 BOLT |
91611-60630 |
US $1.31 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.91 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
US $1.43 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9165161022
|
9165161022
91651-61022 Bolt(For Transaxle & Engine Setting) |
91651-61022 |
US $1.10 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
|
9699114080
|
9699114080
96991-14080 CLIP |
96991-14080 |
US $0.87 |
||
