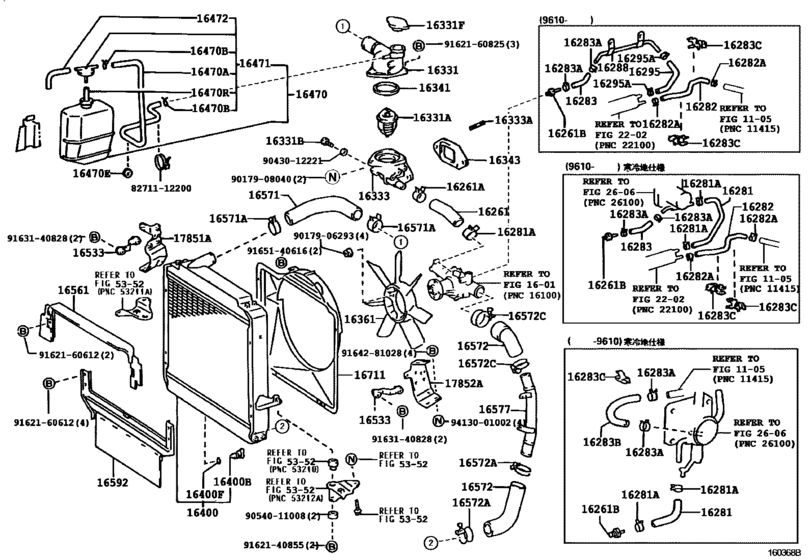

Radiator & Water Outlet ([05.1995 - ] (9505- )3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-56012 Hose, Water By-Pass[05.1995 -] 3B..BU68 |
16261-56012 |
from US $9.90 |
||
|
16261A
|
16261A
90467-28004
Clamp Or Clip, Hose(For Water By-Pass Hose)
[05.1995 -] 3B..BU68 |
90467-28004 |
— | ||
| replacement | |||||
|
16261A
|
16261A
90467-28007 Clip Or Clamp(For Ventilation Hose)[05.1995 -] 3B..BU68 |
90467-28007 |
from US $2.98 |
||
|
16261B
|
16261B
90404-52028 Union(For Water By-Pass Hose)[05.1995 - 10.1996] 3B..BU68 ｶﾝﾚｲﾁ ｼﾖｳ |
90404-52028 |
US $5.77 |
||
|
16281
|
16281
16281-58060 Hose, Water By-Pass, No.4[10.1996 -] 3B..BU68 ｶﾝﾚｲﾁ ｼﾖｳ,INJECTION PUMP SIDE |
16281-58060 |
US $13.40 |
||
|
16281
|
16281
90445-16052 Hose, Water By-Pass, No.4[05.1995 - 10.1996] 3B..BU68 ｶﾝﾚｲﾁ ｼﾖｳ |
90445-16052 |
US $10.05 |
||
| replacement | |||||
|
16281
|
16281
90445-16051 Hose, Water By-Pass[05.1995 - 10.1996] 3B..BU68 ｶﾝﾚｲﾁ ｼﾖｳ |
90445-16051 |
US $14.71 |
||
|
16281A
|
16281A
90467-15022 Clip Or Clamp(For Ventilation Hose)[05.1995 -] 3B..BU68 ｶﾝﾚｲﾁ ｼﾖｳ |
90467-15022 |
from US $1.05 |
||
|
16282
|
16282
16282-58010 Hose, Water By-Pass, No.5[10.1996 -] 3B..BU68 |
16282-58010 |
US $12.06 |
||
|
16282A
|
16282A
90467-15022 Clip Or Clamp(For Ventilation Hose)[10.1996 -] 3B..BU68 |
90467-15022 |
from US $1.05 |
||
|
16283
|
16283
16283-56010 Hose, Water By-Pass, No.6[10.1996 -] 3B..BU68 |
16283-56010 |
US $8.06 |
||
|
16283
|
16283
90445-16052 Hose, Water By-Pass, No.4[10.1996 -] 3B..BU68 長さ＝２１０,ｶﾝﾚｲﾁ ｼﾖｳ |
90445-16052 |
US $10.05 |
||
| replacement | |||||
|
16283
|
16283
90445-16051 Hose, Water By-Pass[10.1996 -] 3B..BU68 長さ＝２１０,ｶﾝﾚｲﾁ ｼﾖｳ |
90445-16051 |
US $14.71 |
||
|
16283A
|
16283A
90467-15022 Clip Or Clamp(For Ventilation Hose)[05.1995 - 10.1996] 3B..BU68 ｶﾝﾚｲﾁ ｼﾖｳ |
90467-15022 |
from US $1.05 |
||
|
16283B
|
16283B
90445-16051 Hose, Water By-Pass[05.1995 - 10.1996] 3B..BU68 ｶﾝﾚｲﾁ ｼﾖｳ |
90445-16051 |
US $14.71 |
||
|
16283C
|
16283C
90464-00518 Clamp Or Clip(For Water By-Pass Hose)[05.1995 - 10.1996] 3B..BU68 ｶﾝﾚｲﾁ ｼﾖｳ |
90464-00518 |
US $1.60 |
||
|
16283C
|
16283C
90464-00769 Clamp Or Clip(For Water By-Pass Hose)[10.1996 -] 3B..BU68 INJECTION PIPE SIDE |
90464-00769 |
US $2.62 |
||
|
16288
|
16288
16288-58030 Pipe, Water By-Pass, No.4[10.1996 -] 3B..BU68 |
16288-58030 |
US $34.07 |
||
|
16295
|
16295
16295-58010 Hose, Water By-Pass, No.7[10.1996 -] 3B..BU68 |
16295-58010 |
US $8.59 |
||
|
16295A
|
16295A
90467-15022 Clip Or Clamp(For Ventilation Hose)[10.1996 -] 3B..BU68 |
90467-15022 |
from US $1.05 |
||
|
16331
|
16331
16331-58090 Outlet, Water[05.1995 -] 3B..BU68 |
16331-58090 |
from US $28.04 |
||
|
16331A
|
16331A
90916-03102 Thermostat[05.1995 -] 3B..BU68 |
90916-03102 |
from US $19.82 |
||
|
16331B
|
16331B
90341-12006 Plug(For Water Outlet)[03.1997 -] 3B..BU68 |
90341-12006 |
US $4.54 |
||
|
16331F
|
16331F
16401-54750 Radiator Cap[09.1996 -] 3B..BU68 |
16401-54750 |
from US $16.13 |
||
|
16331F
|
16331F
16401-71010
Cap Sub-Assy(For Water Outlet)
[05.1995 - 09.1996] 3B..BU68 |
16401-71010 |
— | ||
| replacement | |||||
|
16331F
|
16331F
16401-54750 Radiator Cap[05.1995 - 09.1996] 3B..BU68 |
16401-54750 |
from US $16.13 |
||
|
16333
|
16333
16333-58050 Housing, Water Outlet[05.1995 - 03.1997] 3B..BU68 |
16333-58050 |
US $135.41 |
||
| replacements | |||||
|
16333
|
16333
16333-58080 Housing, Water Outlet[05.1995 - 03.1997] 3B..BU68 |
16333-58080 |
from US $59.89 |
||
|
16333
|
16333
90341-12006 Plug(For Water Outlet)[05.1995 - 03.1997] 3B..BU68 |
90341-12006 |
US $4.54 |
||
|
16333
|
16333
90430-12221 Gasket[05.1995 - 03.1997] 3B..BU68 |
90430-12221 |
from US $1.05 |
||
|
16333
|
16333
16333-58080 Housing, Water Outlet[03.1997 -] 3B..BU68 |
16333-58080 |
from US $59.89 |
||
|
16333A
|
16333A
92112-60832 Bolt, Stud(For Water Outlet Housing)[05.1995 -] 3B..BU68 |
92112-60832 |
US $3.76 |
||
|
16341
|
16341
16341-56030 Gasket, Water Outlet[05.1995 -] 3B..BU68 |
16341-56030 |
from US $2.51 |
||
|
16343
|
16343
16343-56023 Gasket, Water Outlet Housing[05.1995 -] 3B..BU68 |
16343-56023 |
from US $3.29 |
||
|
16361
|
16361
16361-56070 Fan[05.1995 -] 3B..BU68 |
16361-56070 |
US $100.51 |
||
|
16400
|
16400
16400-58400 Radiator Assy[05.1995 -] 3B..BU68 |
16400-58400 |
US $621.71 |
||
| replacement | |||||
|
16400
|
16400
16400-58411 Radiator Assy[05.1995 -] 3B..BU68 |
16400-58411 |
US $595.50 |
||
|
16400B
|
16400B
16417-15210 Plug, Radiator Drain Cock[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
16417-15210 |
from US $3.63 |
||
|
16400F
|
16400F
16418-15520 Packing(For Radiator Drain Cock)[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
16418-15520 |
from US $1.52 |
||
|
16470
|
16470
16470-56141 Tank Assy, Radiator Reserve[05.1995 -] 3B..BU68 |
16470-56141 |
US $59.40 |
||
|
16470A
|
16470A
90099-33534 Hose Or Pipe(For Radiator Reserve Tank)[05.1995 -] 3B..BU68 長さ＝１０００ |
90099-33534 |
US $5.42 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
90467-11085 |
from US $0.70 |
||
|
16470E
|
16470E
90480-18011 Grommet, Radiator Reserve Tank Hose[05.1995 -] 3B..BU68 |
90480-18011 |
US $1.05 |
||
|
16470R
|
16470R
90445-12078 Hose(For Radiator Breather)[05.1995 -] 3L,5L..LH8#,LY15# ＊Ｈ，Ｌ＝１８５; 3B..BU68 ＊Ｈ，Ｌ＝２００ |
90445-12078 |
from US $6.61 |
||
|
16471
|
16471
16405-56081
Cap Sub-Assy, Reserve Tank
[05.1995 -] 3B..BU68 |
16405-56081 |
— | ||
| replacement | |||||
|
16471
|
16471
16405-56080
Cap Sub-Assy, Reserve Tank
[05.1995 -] 3B..BU68 |
16405-56080 |
— | ||
|
16472
|
16472
85338-22030
Hose, Breather
[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
85338-22030 |
— | ||
|
16533
|
16533
16505-58010 Support, Radiator, Upper[05.1995 -] 3B..BU68 |
16505-58010 |
US $14.71 |
||
|
16561
|
16561
16561-58010 Seal, Radiator To Support, No.1[05.1995 -] 3B..BU68 |
16561-58010 |
US $38.58 |
||
|
16571
|
16571
16571-58080 Hose, Radiator, Inlet[05.1995 -] 3B..BU68 |
16571-58080 |
US $27.22 |
||
|
16571A
|
16571A
90467-42001
Clamp Or Clip, Hose(For Radiator Inlet)
[05.1995 -] 3B..BU68 |
90467-42001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90466-41008 Clamp, Hose(For Radiator Hose)[05.1995 -] 3B..BU68 |
90466-41008 |
from US $4.09 |
||
|
16572
|
16572
16572-56091 Hose, Radiator, Outlet[05.1995 -] 3B..BU68 WATER PUMP SIDE |
16572-56091 |
from US $10.30 |
||
|
16572
|
16572
16573-58040 Hose, Radiator, Outlet[05.1995 -] 3B..BU68 RADIATOR SIDE |
16573-58040 |
US $27.22 |
||
|
16572A
|
16572A
90467-41005 Clamp Or Clip, Sub Radiator Hose[08.1997 -] 3B..BU68 |
90467-41005 |
US $12.54 |
||
|
16572A
|
16572A
96111-10510 Clamp Or Clip, Sub Radiator Hose[05.1995 - 08.1997] 3B..BU68 |
96111-10510 |
US $4.66 |
||
|
16572C
|
16572C
90467-41004
Clamp Or Clip, Hose(For Radiator Outlet No.1)
[12.1997 -] 3B..BU68 RADIATOR PIPE SIDE |
90467-41004 |
— | ||
| replacement | |||||
|
16572C
|
16572C
90466-41003 Clip, Radiator Hose, No.1[12.1997 -] 3B..BU68 RADIATOR PIPE SIDE |
90466-41003 |
from US $8.30 |
||
|
16572C
|
16572C
90467-41007
Clamp Or Clip, Hose(For Radiator Inlet)
[08.1997 - 12.1997] 3B..BU68 RADIATOR PIPE SIDE |
90467-41007 |
— | ||
| replacement | |||||
|
16572C
|
16572C
90466-41008 Clamp, Hose(For Radiator Hose)[08.1997 - 12.1997] 3B..BU68 RADIATOR PIPE SIDE |
90466-41008 |
from US $4.09 |
||
|
16572C
|
16572C
90467-48003 Clamp Or Clip, Hose(For Radiator Outlet No.1)[08.1997 -] 3B..BU68 WATER PUMP SIDE |
90467-48003 |
from US $5.11 |
||
|
16572C
|
16572C
96111-10490 Clamp Or Clip, Sub Radiator Hose[05.1995 - 08.1997] 3B..BU68 RADIATOR PIPE SIDE |
96111-10490 |
from US $1.97 |
||
|
16572C
|
16572C
96111-10570 Clamp Or Clip, Hose(For Radiator Outlet No.1)[05.1995 - 08.1997] 3B..BU68 WATER PUMP SIDE |
96111-10570 |
US $2.87 |
||
|
16577
|
16577
16577-58040 Pipe, Radiator, No.7[05.1995 -] 3B..BU68 |
16577-58040 |
US $72.16 |
||
|
16592
|
16592
16592-58030 Guide, Radiator Air, No.3[05.1995 -] 3B..BU68 |
16592-58030 |
US $88.82 |
||
|
16711
|
16711
16711-58120
Shroud, Fan
[05.1995 -] 3B..BU68 |
16711-58120 |
— | ||
|
17851A
|
17851A
17851-58011 Bracket, Radiator Support, No.1[05.1995 -] 3B..BU68 |
17851-58011 |
US $32.18 |
||
|
17852A
|
17852A
17852-58011 Bracket, Radiator Support, No.2[05.1995 -] 3B..BU68 |
17852-58011 |
US $47.17 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.82 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.05 |
||
|
9054011008
|
9054011008
90540-11008 Insulator, Radiator Mounting |
90540-11008 |
from US $5.91 |
||
|
9162140855
|
9162140855
91621-40855
New Genuine Part
|
91621-40855 |
— | ||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9162160825
|
9162160825
91621-60825
BOLT
|
91621-60825 |
— | ||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9163140828
|
9163140828
91631-40828 New Genuine Part |
91631-40828 |
US $1.02 |
||
|
9164281028
|
9164281028
91642-81028 New Genuine Part |
91642-81028 |
US $2.51 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9413001002
|
9413001002
94130-01002 Nut, Booster Sleeve Cylinder |
94130-01002 |
from US $0.91 |
||
