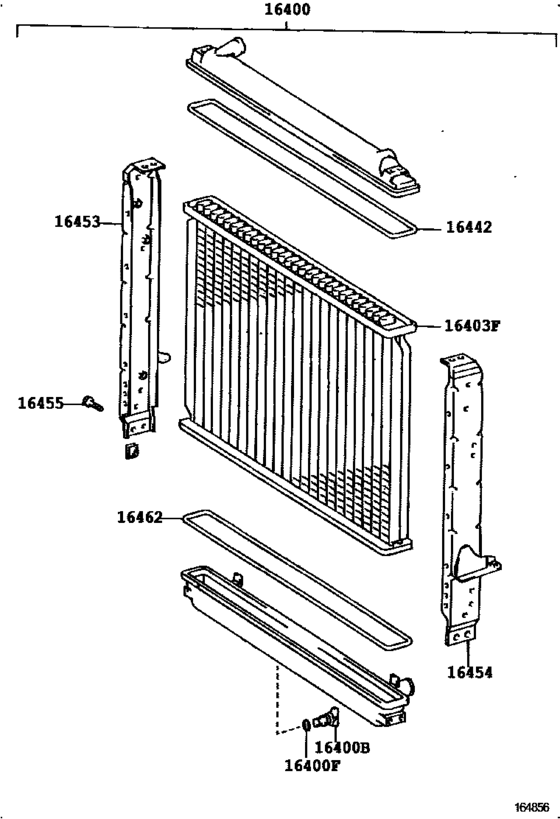

Radiator & Water Outlet ([05.1995 - ] (9505- )3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16400
|
16400
16400-58400 Radiator Assy[05.1995 -] 3B..BU68 |
16400-58400 |
US $621.71 |
||
| replacement | |||||
|
16400
|
16400
16400-58411 Radiator Assy[05.1995 -] 3B..BU68 |
16400-58411 |
US $595.50 |
||
|
16400B
|
16400B
16417-15210 Plug, Radiator Drain Cock[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
16417-15210 |
from US $3.63 |
||
|
16400F
|
16400F
16418-15520 Packing(For Radiator Drain Cock)[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
16418-15520 |
from US $1.52 |
||
|
16403F
|
16403F
16403-58400 Core Sub-Assy, Radiator[05.1995 - 08.1997] 3B..BU68 |
16403-58400 |
US $433.89 |
||
| replacement | |||||
|
16403F
|
16403F
16403-58471 Core Sub-Assy, Radiator[05.1995 - 08.1997] 3B..BU68 |
16403-58471 |
US $377.10 |
||
|
16403F
|
16403F
16403-58471 Core Sub-Assy, Radiator[08.1997 -] 3B..BU68 |
16403-58471 |
US $377.10 |
||
|
16442
|
16442
16442-58420 Ring, O(For Radiator Upper Tank)[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
16442-58420 |
US $10.63 |
||
|
16453
|
16453
16453-58420 Plate, Radiator Side[05.1995 -] 3B..BU68 |
16453-58420 |
US $54.16 |
||
|
16454
|
16454
16454-58420 Plate, Radiator Side[05.1995 -] 3B..BU68 |
16454-58420 |
US $54.16 |
||
|
16455
|
16455
16455-67020 Bolt, Radiator Side Support Plate[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
16455-67020 |
US $3.40 |
||
|
16462
|
16462
16442-58420 Ring, O(For Radiator Upper Tank)[05.1995 -] 3L,5L..LH8#,LY15#; 3B..BU68 |
16442-58420 |
US $10.63 |
||
