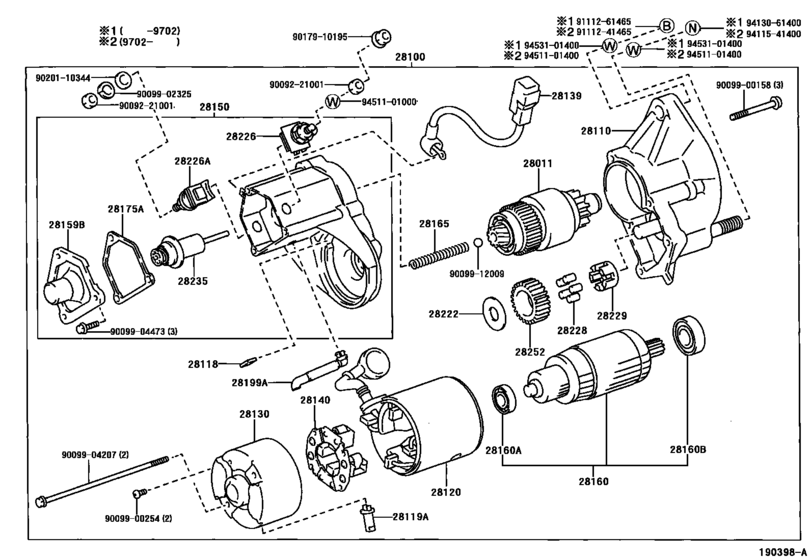

Starter ([05.1995 - ] 24V 4.5KW (9505- )3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[05.1995 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28011-54010 |
from US $185.90 |
||
|
28100
|
28100
28100-56330 Starter Assy[05.1995 - 05.1996] 3B..BU68 ２４Ｖ ４．５ＫＷ |
28100-56330 |
US $2,213.12 |
||
| replacement | |||||
|
28100
|
28100
28100-56332
Starter Assy
[05.1995 - 05.1996] 3B..BU68 ２４Ｖ ４．５ＫＷ |
28100-56332 |
— | ||
|
28100
|
28100
28100-56331 Starter Assy[05.1996 - 08.1998] 3B..BU68 ２４Ｖ ４．５ＫＷ |
28100-56331 |
US $2,213.12 |
||
| replacement | |||||
|
28100
|
28100
28100-56332
Starter Assy
[05.1996 - 08.1998] 3B..BU68 ２４Ｖ ４．５ＫＷ |
28100-56332 |
— | ||
|
28100
|
28100
28100-56332
Starter Assy
[08.1998 -] 3B..BU68 ２４Ｖ ４．５ＫＷ |
28100-56332 |
— | ||
|
28110
|
28110
28110-56150 Housing Assy, Starter Drive[05.1995 - 05.1996] 3B..BU68 |
28110-56150 |
US $155.79 |
||
| replacement | |||||
|
28110
|
28110
28110-56151 Housing Assy, Starter Drive[05.1995 - 05.1996] 3B..BU68 |
28110-56151 |
from US $113.30 |
||
|
28110
|
28110
28110-56330 Housing Assy, Starter Drive[05.1996 - 08.1998] 3B..BU68 |
28110-56330 |
US $155.79 |
||
| replacement | |||||
|
28110
|
28110
28110-56331 Housing Assy, Starter Drive[05.1996 - 08.1998] 3B..BU68 |
28110-56331 |
US $128.13 |
||
|
28110
|
28110
28110-56331 Housing Assy, Starter Drive[08.1998 -] 3B..BU68 |
28110-56331 |
US $128.13 |
||
|
28118
|
28118
28118-77090
Plate(For Starter Yoke)
[05.1995 -] 3L..LH81..ATM;3B,5L..BU68,LH82,LY152 |
28118-77090 |
— | ||
|
28119A
|
28119A
28199-46080 Cover, Starter End Frame[05.1995 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28199-46080 |
from US $2.97 |
||
|
28120
|
28120
28120-56221
Yoke Assy, Starter
[05.1995 - 05.1996] 3B..BU68 |
28120-56221 |
— | ||
|
28120
|
28120
28120-56330
Yoke Assy, Starter
[05.1996 -] 3B..BU68 |
28120-56330 |
— | ||
|
28130
|
28130
28130-56260
Frame Assy, Starter Commutator End
[05.1995 -] 3B..BU68 |
28130-56260 |
— | ||
|
28139
|
28139
28139-56250
Wire, Lead, No.1(For Starter)
[05.1995 - 11.1996] 3B..BU68 |
28139-56250 |
— | ||
| replacement | |||||
|
28139
|
28139
28139-56310
Wire, Lead, No.1(For Starter)
[05.1995 - 11.1996] 3B..BU68 |
28139-56310 |
— | ||
|
28139
|
28139
28139-56251
Wire, Lead, No.1(For Starter)
[11.1996 - 11.1997] 3B..BU68 |
28139-56251 |
— | ||
| replacement | |||||
|
28139
|
28139
28139-56310
Wire, Lead, No.1(For Starter)
[11.1996 - 11.1997] 3B..BU68 |
28139-56310 |
— | ||
|
28139
|
28139
28139-56310
Wire, Lead, No.1(For Starter)
[11.1997 -] 3B..BU68 |
28139-56310 |
— | ||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[05.1995 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28140-77090 |
from US $55.39 |
||
|
28150
|
28150
28150-56330 Switch Assy, Magnet Starter[05.1995 - 05.1996] 3B..BU68 |
28150-56330 |
US $436.80 |
||
| replacement | |||||
|
28150
|
28150
28150-58010 Switch Assy, Magnet Starter[05.1995 - 05.1996] 3B..BU68 |
28150-58010 |
US $275.18 |
||
|
28150
|
28150
28150-56331 Switch Assy, Magnet Starter[05.1996 - 08.1999] 3B..BU68 |
28150-56331 |
US $432.43 |
||
|
28159B
|
28159B
28159-56310
Cover, Magnet Switch
[05.1995 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28159-56310 |
— | ||
|
28160
|
28160
28160-56140 Armature Assy, Starter[05.1995 -] 3B..BU68 |
28160-56140 |
US $426.61 |
||
|
28160A
|
28160A
90099-10131 Bearing, Starter Armature[05.1995 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
90099-10131 |
US $7.43 |
||
|
28160B
|
28160B
90099-54120 Bearing, Starter Armature[05.1995 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
90099-54120 |
US $16.02 |
||
|
28165
|
28165
28165-77090
Spring, Starter Magnet Switch Return
[05.1995 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28165-77090 |
— | ||
|
28175A
|
28175A
28175-56310 Gasket, Magnet Switch Cover[05.1995 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28175-56310 |
from US $1.67 |
||
|
28199A
|
28199A
28199-58020
Protector, Dust Starter
[04.1999 -] 3B..BU68 |
28199-58020 |
— | ||
|
28222
|
28222
28222-77090
Washer, Starter Idle Gear Clutch
[05.1995 -] 3L..LH81..ATM;3B,5L..BU68,LH82,LY152 |
28222-77090 |
— | ||
|
28226
|
28226
28226-17030
Starter Kit, Battery Terminal
[06.1998 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28226-17030 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-54320 Starter Kit, Battery Terminal[06.1998 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28226-54320 |
from US $10.01 |
||
|
28226
|
28226
28226-56330
Starter Kit, Battery Terminal
[05.1995 - 06.1998] 3B..BU68;3L..LH81..ATM; 3L..LH81,LY151..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28226-56330 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-54320 Starter Kit, Battery Terminal[05.1995 - 06.1998] 3B..BU68;3L..LH81..ATM; 3L..LH81,LY151..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28226-54320 |
from US $10.01 |
||
|
28226A
|
28226A
28226-54220 Starter Kit, Motor Terminal[05.1995 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28226-54220 |
from US $11.21 |
||
|
28228
|
28228
28228-56080
Roller, Starter Idle Gear Clutch
[05.1995 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28228-56080 |
— | ||
|
28229
|
28229
28229-56080
Retainer, Starter Idle Gear
[05.1995 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28229-56080 |
— | ||
|
28235
|
28235
28235-17030 Plunger, Magnet Switch[05.1995 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28235-17030 |
from US $25.56 |
||
|
28252
|
28252
28254-77090
Pinion, Starter Drive
[05.1995 -] 3B..BU68;3L,5L..LH8#..ATM; 3L,5L..LH8#,LY15#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28254-77090 |
— | ||
|
9009221001
|
9009221001
90092-21001 NUT |
90092-21001 |
US $0.42 |
||
|
9009900158
|
9009900158
90099-00158
SCREW
|
90099-00158 |
— | ||
|
9009900254
|
9009900254
90099-00254
New Genuine Part
|
90099-00254 |
— | ||
|
9009902325
|
9009902325
90099-02325 WASHER |
90099-02325 |
from US $0.28 |
||
|
9009904207
|
9009904207
90099-04207
New Genuine Part
|
90099-04207 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017910195
|
9017910195
90179-10195 NUT WWASHER |
90179-10195 |
US $1.97 |
||
|
9020110344
|
9020110344
90201-10344 Washer, Plate(For Cylinder Head Set) |
90201-10344 |
from US $0.97 |
||
|
9111241465
|
9111241465
91112-41465 BOLT |
91112-41465 |
US $4.22 |
||
|
9111261465
|
9111261465
91112-61465 Bolt |
91112-61465 |
US $4.80 |
||
|
9411541400
|
9411541400
94115-41400 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-41400 |
US $1.22 |
||
|
9413061400
|
9413061400
94130-61400 Nut, Lock |
94130-61400 |
US $1.79 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
|
9453101400
|
9453101400
94531-01400 New Genuine Part |
94531-01400 |
US $0.87 |
||
