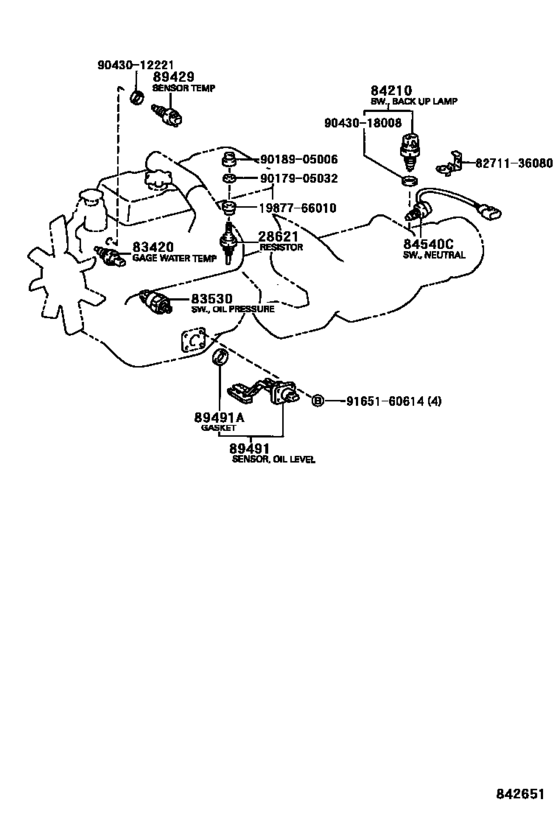

Switch & Relay & Computer ([05.1995 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9505- )BU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28621
|
28621
28621-57011
Resistor, Glow Plug
[05.1995 -] 3B..BU68 |
28621-57011 |
— | ||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[05.1995 -] BU68,LH8#,LY15# |
83420-16040 |
from US $27.76 |
||
|
83530
|
83530
83530-14070
Switch Assy, Oil Pressure (For Engine)
[05.1995 - 03.1998] BU68 ＤＥＮＳＯ |
83530-14070 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[05.1995 - 03.1998] BU68 ＤＥＮＳＯ |
83530-28010 |
from US $25.68 |
||
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[03.1998 -] BU68 ＤＥＮＳＯ |
83530-28010 |
from US $25.68 |
||
|
83530
|
83530
83530-30100
Switch Assy, Oil Pressure (For Engine)
[05.1995 - 03.1998] BU68 ＹＡＺＡＫＩ |
83530-30100 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[05.1995 - 03.1998] BU68 ＹＡＺＡＫＩ |
83530-60010 |
from US $23.45 |
||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[03.1998 -] BU68 ＹＡＺＡＫＩ |
83530-60010 |
from US $23.45 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[05.1995 -] BU68,LH8#,LY15#,RZU68..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[05.1995 -] BU68,LH8#,LY15#,RZU68..MTM |
84210-52050 |
from US $22.85 |
||
|
84540C
|
84540C
84540-36090 Switch Assy, Neutral (For Exhaust Brake)[05.1995 -] BU68 |
84540-36090 |
from US $108.33 |
||
|
89429
|
89429
89422-20010 Sensor, Water Temperature (For E.f.i.)[05.1995 -] BU68,LH8#,LY15# |
89422-20010 |
from US $40.66 |
||
|
89491
|
89491
89491-37020 Sensor, Engine Oil Level[05.1995 -] BU68 |
89491-37020 |
US $185.20 |
||
|
89491A
|
89491A
90430-27001 Gasket, Engine Oil Level Sensor[05.1995 - 05.1997] BU68,LH81,LY151,RZU68 |
90430-27001 |
from US $1.03 |
||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
8271136080
|
8271136080
82711-36080
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-36080 |
— | ||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.76 |
||
|
9018905006
|
9018905006
90189-05006 GROMMET |
90189-05006 |
US $6.99 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.05 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
