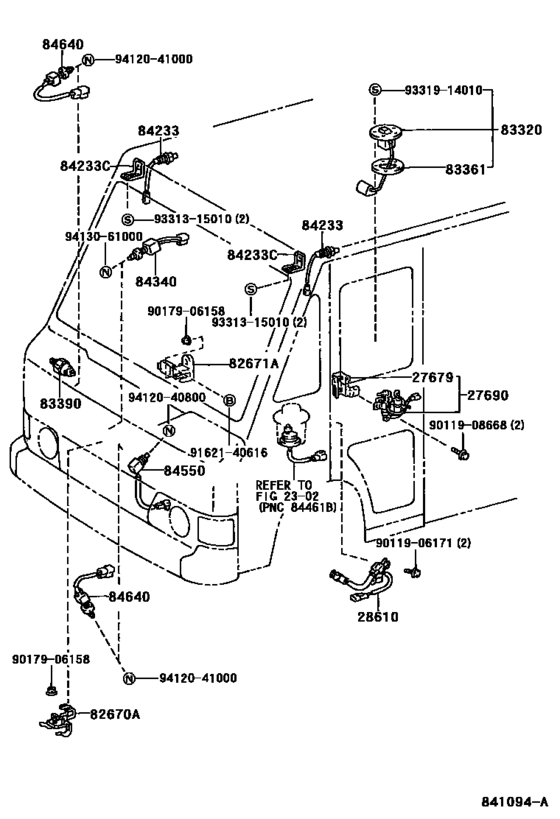

Switch & Relay & Computer ([05.1995 - ] ﾙ-ﾌ,ｴﾝｼﾞﾝﾙ-ﾑ & ﾌﾛｱ (9505- )BU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27679
|
27679
27679-56010 Bracket, Exhaust Brake(For Solenoid)[05.1995 -] 3B..BU68 |
27679-56010 |
US $12.52 |
||
|
27690
|
27690
27690-56062 Solenoid Assy, W/bracket(For Exhaust Brake)[05.1995 -] 3B..BU68 |
27690-56062 |
US $304.30 |
||
|
28610
|
28610
28610-58070
Relay Assy, Glow Plug
[05.1995 -] 3B..BU68 |
28610-58070 |
— | ||
|
82670A
|
82670A
82670-90K00
Block Assy, Junction, No.1
[05.1995 -] BU68 |
82670-90K00 |
— | ||
|
82671A
|
82671A
82671-28010 Block, Junction[05.1995 -] BU68 |
82671-28010 |
US $12.01 |
||
|
83320
|
83320
83320-39565 Gage Assy, Fuel Sender[05.1995 -] BU68,LH8#,LY15# |
83320-39565 |
US $51.84 |
||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[05.1995 -] BU68,LH8#,LY15# |
83361-20030 |
from US $2.24 |
||
|
83390
|
83390
83390-36020 Switch Assy, Vacuum Warning[05.1995 -] BU68 |
83390-36020 |
from US $32.27 |
||
|
84233
|
84233
84230-12120
Switch Assy, Courtesy Lamp (For Front Door)
[05.1995 -] BU68,LH8#,LY15#,RZU68 |
84230-12120 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-22060 Switch Assy, Courtesy Lamp (For Front Door)[05.1995 -] BU68,LH8#,LY15#,RZU68 |
84231-22060 |
from US $13.26 |
||
|
84233C
|
84233C
84233-90D01 Bracket, Courtesy Switch (For Front Door)[05.1995 -] BU68,LH8#,LY15#,RZU68 |
84233-90D01 |
US $12.67 |
||
|
84340
|
84340
84340-22072 Switch Assy, Stop Lamp[05.1995 -] BU68,LH8#,LY15#,RZU68 |
84340-22072 |
from US $25.44 |
||
|
84550
|
84550
84550-37010 Switch Assy, Parking Brake[05.1995 -] BU68,RZU68 |
84550-37010 |
US $34.10 |
||
|
84640
|
84640
84640-36060 Switch Assy, Exhaust Brake[05.1995 -] BU68 |
84640-36060 |
from US $27.19 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.33 |
||
|
9011908668
|
9011908668
90119-08668 New Genuine Part |
90119-08668 |
US $1.79 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9162140616
|
9162140616
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.43 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.74 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
