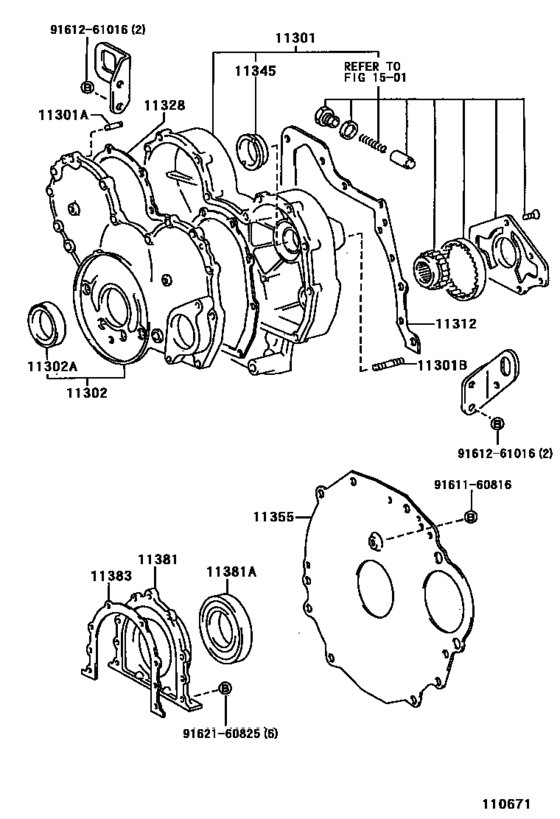

Timing Gear Cover & Rear End Plate ([05.1995 - ] (9505- )3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301
|
11301
11301-58020 Case Sub-Assy, Timing Gear[05.1995 - 05.1999] 3B..BU68 |
11301-58020 |
US $716.35 |
||
| replacement | |||||
|
11301
|
11301
11301-58021 Case Sub-Assy, Timing Gear[05.1995 - 05.1999] 3B..BU68 |
11301-58021 |
from US $316.24 |
||
|
11301
|
11301
11301-58021 Case Sub-Assy, Timing Gear[05.1999 -] 3B..BU68 |
11301-58021 |
from US $316.24 |
||
|
11301A
|
11301A
90250-08120 Pin, Straight, No.1[05.1995 -] 3B..BU68 長さ＝１８，外径＝８ |
90250-08120 |
from US $0.99 |
||
|
11301B
|
11301B
90116-08169 Bolt,stud(For Timing Gear Case)[05.1995 -] 3B..BU68 |
90116-08169 |
US $4.12 |
||
|
11302
|
11302
11302-58010 Cover Sub-Assy, Timing Chain Or Belt[05.1995 - 04.1999] 3B..BU68 |
11302-58010 |
US $241.70 |
||
| replacement | |||||
|
11302
|
11302
11302-58011 Cover Sub-Assy, Timing Chain Or Belt[05.1995 - 04.1999] 3B..BU68 |
11302-58011 |
US $160.74 |
||
|
11302
|
11302
11302-58011 Cover Sub-Assy, Timing Chain Or Belt[04.1999 -] 3B..BU68 |
11302-58011 |
US $160.74 |
||
|
11302A
|
11302A
90311-50013 Seal, Oil(For Timing Chain Or Belt Cover)[05.1995 -] 3B..BU68 |
90311-50013 |
from US $10.91 |
||
|
11312
|
11312
11312-56040 Gasket, Front End Plate[05.1995 -] 3B..BU68 |
11312-56040 |
US $9.32 |
||
|
11328
|
11328
11328-56050 Gasket, Timing Gear Or Chain Cover[05.1995 - 05.1999] 3B..BU68 |
11328-56050 |
US $8.04 |
||
|
11328
|
11328
11328-58010 Gasket, Timing Gear Or Chain Cover[05.1999 -] 3B..BU68 |
11328-58010 |
US $15.41 |
||
|
11345
|
11345
11345-48010 Bearing, Injection Pump Gear Thrust[05.1995 -] 3B..BU68 |
11345-48010 |
US $15.38 |
||
|
11355
|
11355
11355-56061 Plate, Rear End[05.1995 -] 3B..BU68 |
11355-56061 |
US $85.90 |
||
|
11381
|
11381
11381-58010 Retainer, Engine Rear Oil Seal[05.1995 - 05.1999] 3B..BU68 |
11381-58010 |
US $94.64 |
||
| replacement | |||||
|
11381
|
11381
11381-58011 Retainer, Engine Rear Oil Seal[05.1995 - 05.1999] 3B..BU68 |
11381-58011 |
US $62.90 |
||
|
11381
|
11381
11381-58011 Retainer, Engine Rear Oil Seal[05.1999 -] 3B..BU68 |
11381-58011 |
US $62.90 |
||
|
11381A
|
11381A
90311-95011 Seal, Engine Rear Oil[05.1995 -] 3B..BU68 |
90311-95011 |
from US $27.72 |
||
|
11383
|
11383
11383-56040 Gasket, Engine Rear Oil Seal Retainer[05.1995 -] 3B..BU68 |
11383-56040 |
from US $4.07 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161261016
|
9161261016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.51 |
||
|
9162160825
|
9162160825
91621-60825
BOLT
|
91621-60825 |
— | ||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
