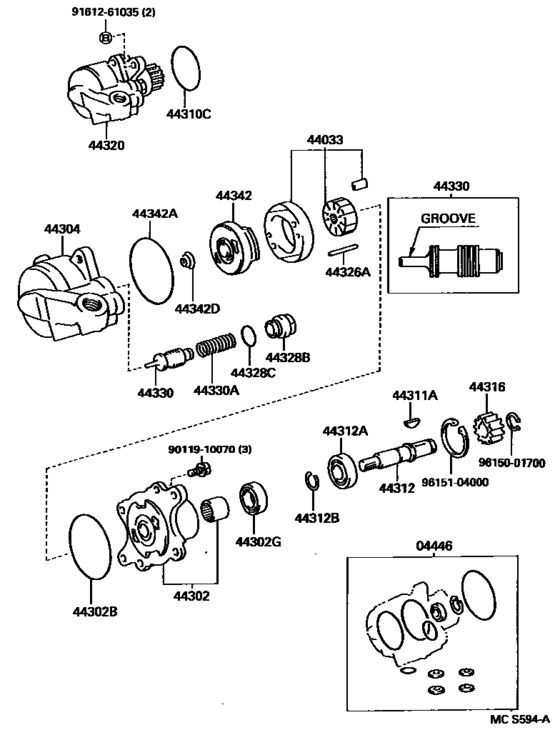

Vane Pump & Reservoir (Power Steering) ([05.1995 - ] (9505- )BU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-36081 Gasket Kit, Power Steering Pump[05.1995 - 08.1999] BU68 |
04446-36081 |
US $31.92 |
||
|
44033
|
44033
44033-36060 Rotor Sub-Assy, W/cam & Vane[05.1995 -] BU68,RZU68 |
44033-36060 |
US $142.68 |
||
|
44302
|
44302
44302-36230 Housing Sub-Assy, Vane Pump, Front[05.1995 - 08.1999] BU68 |
44302-36230 |
US $167.44 |
||
|
44302B
|
44302B
90029-20003 Ring, O, No.1(For Vane Pump Housing)[05.1995 - 08.1999] BU68,RZU68 |
90029-20003 |
from US $2.53 |
||
|
44302G
|
44302G
90029-21018 Seal, Oil, No.2(For Vane Pump Housing)[05.1995 - 08.1999] BU68,RZU68 |
90029-21018 |
from US $2.60 |
||
|
44304
|
44304
44304-36230 Housing Sub-Assy, Vane Pump, Rear[05.1995 - 08.1999] BU68 |
44304-36230 |
US $310.13 |
||
|
44310C
|
44310C
90301-60002 Ring, O(For Vane Pump)[05.1995 -] BU68 |
90301-60002 |
from US $6.69 |
||
|
44311A
|
44311A
90029-18001 Key, Woodruff(For Hydraulic Motor Vane Pump Drive Shaft)[05.1995 -] BU68,RZU68 |
90029-18001 |
from US $1.92 |
||
|
44312
|
44312
44312-36110 Shaft, Vane Pump[05.1995 - 08.1999] BU68 |
44312-36110 |
US $26.64 |
||
|
44312A
|
44312A
90029-36003 Bearing(For Vane Pump Shaft)[05.1995 - 08.1999] BU68 |
90029-36003 |
from US $25.03 |
||
|
44312B
|
44312B
90029-52402 Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)[05.1995 - 08.1999] BU68,RZU68 |
90029-52402 |
US $3.40 |
||
|
44316
|
44316
44316-36020 Gear, Vane Pump[05.1995 -] BU68 |
44316-36020 |
US $63.04 |
||
|
44320
|
44320
44310-37080 Pump Assy, Vane[05.1995 - 08.1999] BU68 |
44310-37080 |
US $1,099.28 |
||
|
44326A
|
44326A
44347-89101 Pin, Straight(For Vane Pump Cam Ring)[05.1995 - 08.1999] BU68,RZU68 長さ＝２９．１ |
44347-89101 |
US $7.13 |
||
|
44328B
|
44328B
44328-89101 End, Vane Pump Housing[05.1995 -] BU68,RZU68 |
44328-89101 |
US $18.35 |
||
| replacement | |||||
|
44328B
|
44328B
S4432-61180 End, Vane Pump Housing[05.1995 -] BU68,RZU68 |
S4432-61180 |
US $15.72 |
||
|
44328C
|
44328C
96711-19020 Ring, O(For Power Steering Actuator)[05.1995 -] BU68,RZU68 |
96711-19020 |
US $5.38 |
||
|
44330
|
44330
44330-36050 Valve Assy, Flow Control[05.1995 - 08.1999] BU68,RZU68 二本溝 |
44330-36050 |
US $93.18 |
||
|
44330
|
44330
44330-36060 Valve Assy, Flow Control[05.1995 - 08.1999] BU68,RZU68 一本溝 |
44330-36060 |
US $93.18 |
||
|
44330
|
44330
44330-36070 Valve Assy, Flow Control[05.1995 - 08.1999] BU68,RZU68 溝無し |
44330-36070 |
US $93.18 |
||
|
44330A
|
44330A
90029-60002 Spring, Compression(For Flow Control Valve)[05.1995 - 08.1999] BU68,RZU68 |
90029-60002 |
US $4.89 |
||
|
44342
|
44342
44342-36060
Plate, Vane Pump Side, Rear
[05.1995 - 08.1999] BU68,RZU68 |
44342-36060 |
— | ||
|
44342A
|
44342A
96711-24060 Ring, O(For Power Steering Control Valve)[05.1995 - 08.1999] BU68,RZU68 |
96711-24060 |
from US $2.66 |
||
|
44342D
|
44342D
90029-60003 Spring, Compression(For Vane Pump Side Plate Rear)[05.1995 -] BU68,RZU68 |
90029-60003 |
US $4.69 |
||
|
9011910070
|
9011910070
90119-10070 New Genuine Part |
90119-10070 |
US $1.61 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9615001700
|
9615001700
96150-01700 Ring |
96150-01700 |
US $1.79 |
||
|
9615104000
|
9615104000
96151-04000 Ring, Snap(For Hydraulic Motor Vane Pump Drive Shaft) |
96151-04000 |
US $2.33 |
||
