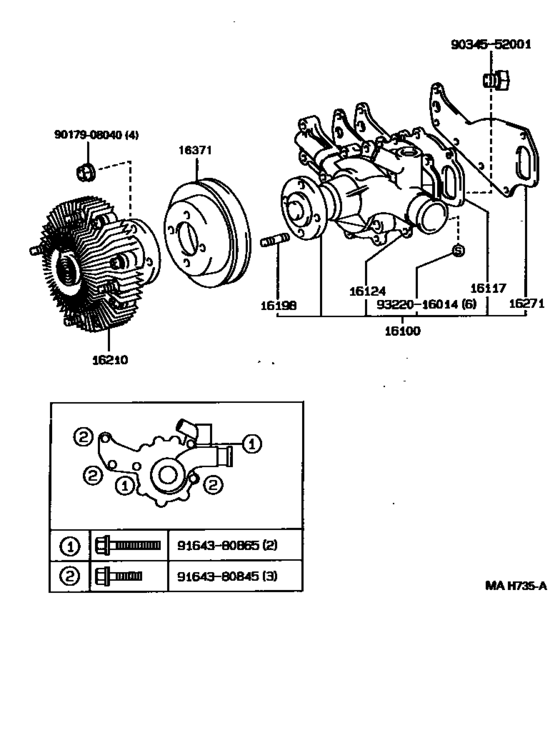

Water Pump ([05.1995 - ] (9505- )3B) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-59166 Pump Assy, Engine Water[05.1995 -] 3B..BU68 |
16100-59166 |
US $157.25 |
||
|
16117
|
16117
16117-58010
Plate, Water Pump
[05.1995 -] 3B..BU68 |
16117-58010 |
— | ||
|
16124
|
16124
16124-58010 Gasket, Water Pump Cover[05.1995 -] 3B..BU68 |
16124-58010 |
US $8.56 |
||
|
16198
|
16198
16198-41170 Bolt, Stud(For Water Pump Pulley Seat)[05.1995 -] 3B..BU68 |
16198-41170 |
US $3.32 |
||
|
16210
|
16210
16210-58030 Coupling Assy, Fluid[05.1995 -] 3B..BU68 |
16210-58030 |
US $260.33 |
||
|
16271
|
16271
16271-56031 Gasket, Water Pump[05.1995 - 05.1999] 3B..BU68 |
16271-56031 |
US $12.52 |
||
| replacement | |||||
|
16271
|
16271
16271-58010 Gasket, Water Pump[05.1995 - 05.1999] 3B..BU68 |
16271-58010 |
from US $11.19 |
||
|
16271
|
16271
16271-58010 Gasket, Water Pump[05.1999 -] 3B..BU68 |
16271-58010 |
from US $11.19 |
||
|
16371
|
16371
16371-58070 Pulley, Fan[05.1995 -] 3B..BU68 |
16371-58070 |
US $50.32 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9034552001
|
9034552001
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block) |
90345-52001 |
from US $4.12 |
||
|
9164380845
|
9164380845
91643-80845 New Genuine Part |
91643-80845 |
US $2.51 |
||
|
9164380865
|
9164380865
91643-80865 New Genuine Part |
91643-80865 |
US $2.51 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
from US $0.65 |
||
