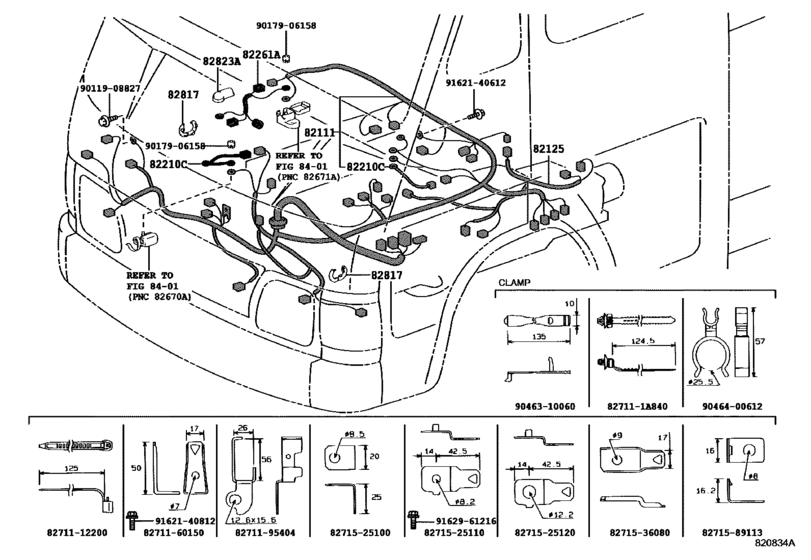

Wiring & Clamp ([05.1995 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9505- )BU68) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- BU68
- grade
- N
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1995
- To
- 08.1999
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-25020 Wire, Engine Room Main[05.1995 - 10.1996] BU68..N ﾚｲﾄｳｼﾔ |
82111-25020 |
US $454.27 |
||
|
82111
|
82111
82111-25021 Wire, Engine Room Main[10.1996 - 08.1997] BU68..N ﾚｲﾄｳｼﾔ |
82111-25021 |
US $1,137.14 |
||
|
82111
|
82111
82111-25022 Wire, Engine Room Main[08.1997 - 08.1999] BU68..N ﾚｲﾄｳｼﾔ |
82111-25022 |
US $1,292.93 |
||
|
82111
|
82111
82111-25030 Wire, Engine Room Main[05.1995 - 08.1997] BU68..N |
82111-25030 |
US $564.93 |
||
|
82111
|
82111
82111-25031 Wire, Engine Room Main[08.1997 - 08.1999] BU68..N |
82111-25031 |
US $564.93 |
||
|
82125
|
82125
82125-25010 Wire, Transmission[05.1995 -] BU68 |
82125-25010 |
US $42.81 |
||
|
82210C
|
82210C
90982-08206
Fusible Link
[05.1995 -] BU68 ＧＬＯＷ ＲＥＳＩＳＴＥＲ |
90982-08206 |
— | ||
|
82210C
|
82210C
90982-08232
Fusible Link
[05.1995 -] BU68 バッテリ |
90982-08232 |
— | ||
|
82261A
|
82261A
82261-25050 Wire, Alternator[05.1995 -] BU68 |
82261-25050 |
US $42.81 |
||
|
82261A
|
82261A
82261-25060 Wire, Alternator[05.1995 - 10.1996] BU68..N ﾚｲﾄｳｼﾔ |
82261-25060 |
US $42.66 |
||
|
82261A
|
82261A
82261-25061 Wire, Alternator[10.1996 -] BU68..N ﾚｲﾄｳｼﾔ |
82261-25061 |
US $47.76 |
||
|
82817
|
82817
82817-24110 Protector, Wiring Harness, No.1[05.1995 - 08.1999] BU68,RZU68 |
82817-24110 |
US $5.42 |
||
|
82823A
|
82823A
82823-22050 Cap, Terminal, No.1[05.1995 -] BU68,LH8#,LY15# |
82823-22050 |
from US $3.57 |
||
|
827111A840
|
827111A840
82711-1A840 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A840 |
US $2.33 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8271160150
|
8271160150
82711-60150 Wire, Fuse To Fuse(for Combustion Heater) |
82711-60150 |
US $4.66 |
||
|
8271195404
|
8271195404
82711-95404 Wire, Fuse To Fuse(for Combustion Heater) |
82711-95404 |
US $5.24 |
||
|
8271525100
|
8271525100
82715-25100 Bracket,wiring Harness Clamp |
82715-25100 |
US $4.66 |
||
|
8271525110
|
8271525110
82715-25110 Bracket,wiring Harness Clamp |
82715-25110 |
US $4.95 |
||
|
8271525120
|
8271525120
82715-25120 Bracket,wiring Harness Clamp |
82715-25120 |
US $4.80 |
||
|
8271536080
|
8271536080
82715-36080
Bracket,wiring Harness Clamp
|
82715-36080 |
— | ||
|
8271589113
|
8271589113
82715-89113 Bracket,wiring Harness Clamp |
82715-89113 |
US $2.48 |
||
|
9011908827
|
9011908827
90119-08827 New Genuine Part |
90119-08827 |
US $1.61 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9046310060
|
9046310060
90463-10060 New Genuine Part |
90463-10060 |
US $2.33 |
||
|
9046400612
|
9046400612
90464-00612 New Genuine Part |
90464-00612 |
US $3.49 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.74 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9162961216
|
9162961216
91629-61216 New Genuine Part |
91629-61216 |
US $1.05 |
