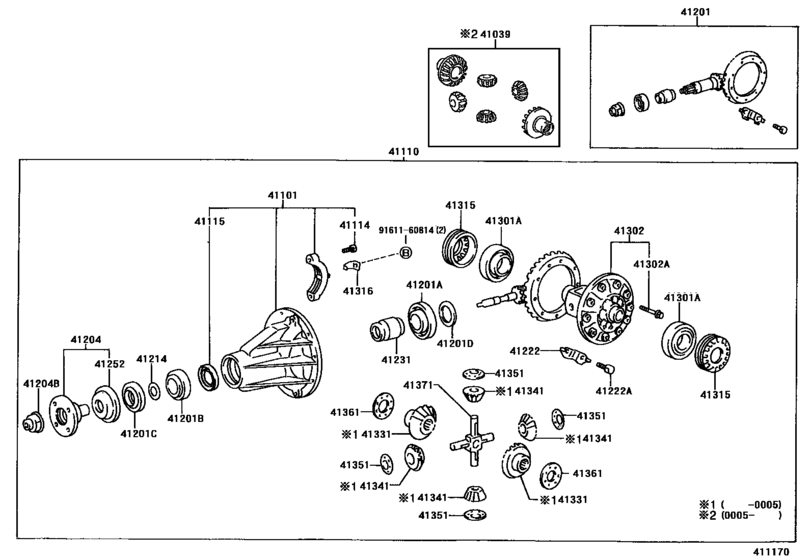

Rear Axle Housing & Differential ([05.1995 - ] (9505- )LY15#) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- LY152
- grade
- D
- ENGINE
- 5L
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1999
- To
- 08.2001
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41039
|
41039
41039-34080 Gear Kit, Differential, Rear[05.2000 -] LY152 |
41039-34080 |
US $234.12 |
||
|
41101
|
41101
41101-35170
Carrier Sub-Assy, Differential, Rear
[11.1995 -] LY15# |
41101-35170 |
— | ||
| replacements | |||||
|
41101
|
41101
41101-35172 Carrier Sub-Assy, Differential, Rear[11.1995 -] LY15# |
41101-35172 |
US $414.09 |
||
|
41101
|
41101
41115-35010 Ring, Differential Oil Storage[11.1995 -] LY15# |
41115-35010 |
from US $3.20 |
||
|
41110
|
41110
41110-35890 Carrier Assy, Differential, Rear[11.1995 -] LY15# ＊ＦＧＲ＝４１：１０＝４．１００ |
41110-35890 |
US $1,732.64 |
||
| replacement | |||||
|
41110
|
41110
41110-35891 Carrier Assy, Differential, Rear[11.1995 -] LY15# ＊ＦＧＲ＝４１：１０＝４．１００ |
41110-35891 |
US $1,563.83 |
||
|
41114
|
41114
90105-12053 Bolt (For Rear Differential Carrier)[05.1995 -] LH8#,LY15# |
90105-12053 |
from US $1.54 |
||
|
41115
|
41115
41115-35010 Ring, Differential Oil Storage[11.1995 -] LY15# |
41115-35010 |
from US $3.20 |
||
|
41201
|
41201
41201-80068
Final Gear Kit, Differential, Rear
[05.1995 -] LY15# ＊ＦＧＲ＝４１：１０＝４．１００ |
41201-80068 |
— | ||
| replacements | |||||
|
41201
|
41201
41201-80724 Final Gear Kit, Differential, Rear[05.1995 -] LY15# ＊ＦＧＲ＝４１：１０＝４．１００ |
41201-80724 |
US $751.30 |
||
|
41201
|
41201
41204-35082 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[05.1995 -] LY15# ＊ＦＧＲ＝４１：１０＝４．１００ |
41204-35082 |
from US $80.15 |
||
|
41201
|
41201
41214-26011 Slinger, Rear Differential Drive Pinion Oil[05.1995 -] LY15# ＊ＦＧＲ＝４１：１０＝４．１００ |
41214-26011 |
from US $4.48 |
||
|
41201A
|
41201A
90366-35087 Bearing , Tapered Roller (for front drive pinion)[11.1995 -] LY15# |
90366-35087 |
from US $53.20 |
||
|
41201B
|
41201B
90366-30067 Bearing (For Rear Drive Pinion Front)[11.1995 -] LY15# |
90366-30067 |
from US $45.14 |
||
|
41201C
|
41201C
90311-38047 Seal, Oil (For Differential Carrier)[01.1996 -] LH8#,LY15# |
90311-38047 |
from US $6.44 |
||
|
41201D
|
41201D
90201-35497 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝１．７０ |
90201-35497 |
from US $2.88 |
||
|
41201D
|
41201D
90201-35498 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝１．７３ |
90201-35498 |
US $2.88 |
||
|
41201D
|
41201D
90201-35499 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝１．７６ |
90201-35499 |
US $2.88 |
||
|
41201D
|
41201D
90201-35500 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝１．７９ |
90201-35500 |
from US $2.88 |
||
|
41201D
|
41201D
90201-35501 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝１．８２ |
90201-35501 |
US $2.88 |
||
|
41201D
|
41201D
90201-35502 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝１．８５ |
90201-35502 |
from US $2.88 |
||
|
41201D
|
41201D
90201-35503 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝１．８８ |
90201-35503 |
from US $2.88 |
||
|
41201D
|
41201D
90201-35504 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝１．９１ |
90201-35504 |
US $2.88 |
||
|
41201D
|
41201D
90201-35505 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝１．９４ |
90201-35505 |
US $2.88 |
||
|
41201D
|
41201D
90201-35506 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝１．９７ |
90201-35506 |
US $2.88 |
||
|
41201D
|
41201D
90201-35507 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝２．００ |
90201-35507 |
from US $2.88 |
||
|
41201D
|
41201D
90201-35508 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝２．０３ |
90201-35508 |
from US $2.88 |
||
|
41201D
|
41201D
90201-35509 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝２．０６ |
90201-35509 |
from US $2.88 |
||
|
41201D
|
41201D
90201-35510 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝２．０９ |
90201-35510 |
US $2.88 |
||
|
41201D
|
41201D
90201-35511 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝２．１２ |
90201-35511 |
from US $2.88 |
||
|
41201D
|
41201D
90201-35512 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝２．１５ |
90201-35512 |
from US $2.88 |
||
|
41201D
|
41201D
90201-35513 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝２．１８ |
90201-35513 |
from US $2.88 |
||
|
41201D
|
41201D
90201-35514 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝２．２１ |
90201-35514 |
US $2.88 |
||
|
41201D
|
41201D
90201-35515 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝２．２４，マーク ０１ |
90201-35515 |
US $1.92 |
||
|
41201D
|
41201D
90201-35516 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝２．２７，マーク ０２ |
90201-35516 |
from US $1.92 |
||
|
41201D
|
41201D
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝２．３０，マーク ０３ |
90201-35517 |
from US $1.92 |
||
|
41201D
|
41201D
90201-35518 Washer, Plate (For Rear Differential Drive Pinion)[05.1995 -] LH8#,LY15# 厚さ＝２．３３，マーク ０４ |
90201-35518 |
from US $1.92 |
||
|
41204
|
41204
41204-35080 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[11.1995 - 08.2001] LY15# |
41204-35080 |
from US $87.32 |
||
|
41204B
|
41204B
90179-20018 Nut (For Rear Drive Pinion)[05.1995 -] LH8#,LY15# |
90179-20018 |
from US $2.50 |
||
|
41214
|
41214
41214-26010 Slinger, Rear Differential Drive Pinion Oil[05.1995 -] LH8#,LY15# |
41214-26010 |
from US $7.36 |
||
|
41222
|
41222
41222-35020 Plate, Rear Differential Ring Gear Set Bolt Lock[05.1995 -] LH8#,LY15# |
41222-35020 |
US $3.20 |
||
|
41222A
|
41222A
90101-11353 Bolt (For Rear Differential Ring Gear Set)[05.1995 -] LH8#,LY15# |
90101-11353 |
from US $0.90 |
||
|
41231
|
41231
41231-24010 Spacer, Rear Differential Drive Pinion Bearing[05.1995 -] LY15# |
41231-24010 |
from US $10.24 |
||
|
41252
|
41252
41252-35040 Deflector, Dust (For Rear Differential)[11.1995 - 08.2001] LY15# |
41252-35040 |
from US $9.71 |
||
|
41301A
|
41301A
90366-50007 Bearing(For Rear Differential Case)[05.1995 -] LY15# |
90366-50007 |
from US $40.89 |
||
|
41302
|
41302
41302-35020
Case Sub-Assy, Rear Differential
[05.1995 -] LY15# |
41302-35020 |
— | ||
|
41302A
|
41302A
90105-10084
Bolt(For Rear Differential Case)
[05.1995 -] LY15# |
90105-10084 |
— | ||
| replacement | |||||
|
41302A
|
41302A
90105-10570 Bolt(For Rear Differential Case)[05.1995 -] LY15# |
90105-10570 |
US $1.49 |
||
|
41315
|
41315
41315-35020 Nut, Rear Differential Bearing Adjusting[05.1995 -] LY15# |
41315-35020 |
from US $5.92 |
||
|
41316
|
41316
41316-35010 Lock, Rear Differential Bearing Adjusting Nut[05.1995 -] LH8#,LY15# |
41316-35010 |
US $1.44 |
||
|
41331
|
41331
41331-35040
Gear, Rear Differential Side
[05.1995 - 05.2000] LY15# |
41331-35040 |
— | ||
| replacements | |||||
|
41331
|
41331
41039-34060 Gear Kit, Differential, Rear[05.1995 - 05.2000] LY15# |
41039-34060 |
from US $359.03 |
||
|
41331
|
41331
41039-34080 Gear Kit, Differential, Rear[05.1995 - 05.2000] LY15# |
41039-34080 |
US $234.12 |
||
|
41341
|
41341
41341-30020
Pinion, Rear Differential
[05.1995 - 05.2000] LY15# |
41341-30020 |
— | ||
| replacement | |||||
|
41341
|
41341
41341-30050 Pinion, Rear Differential[05.1995 - 05.2000] LY15# |
41341-30050 |
US $43.02 |
||
|
41351
|
41351
41351-30060 Washer, Rear Differential Pinion Thrust[05.1995 -] LY15# |
41351-30060 |
from US $2.16 |
||
|
41361
|
41361
41361-35310 Washer, Rear Differential Side Gear Thrust, No.1[09.1995 -] LY15# 厚さ＝０．９ |
41361-35310 |
US $3.32 |
||
|
41361
|
41361
41361-35320 Washer, Rear Differential Side Gear Thrust, No.1[09.1995 -] LY15# 厚さ＝１．０ |
41361-35320 |
US $3.32 |
||
|
41361
|
41361
41361-35330 Washer, Rear Differential Side Gear Thrust, No.1[09.1995 -] LY15# 厚さ＝１．１ |
41361-35330 |
US $3.49 |
||
|
41361
|
41361
41361-35340 Washer, Rear Differential Side Gear Thrust, No.1[09.1995 -] LY15# 厚さ＝１．２ |
41361-35340 |
US $4.02 |
||
|
41361
|
41361
41361-35350 Washer, Rear Differential Side Gear Thrust, No.1[09.1995 -] LY15# 厚さ＝１．３ |
41361-35350 |
US $4.72 |
||
|
41371
|
41371
41371-35020 Spider, Rear Differential[05.1995 -] LY15# |
41371-35020 |
from US $51.38 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
