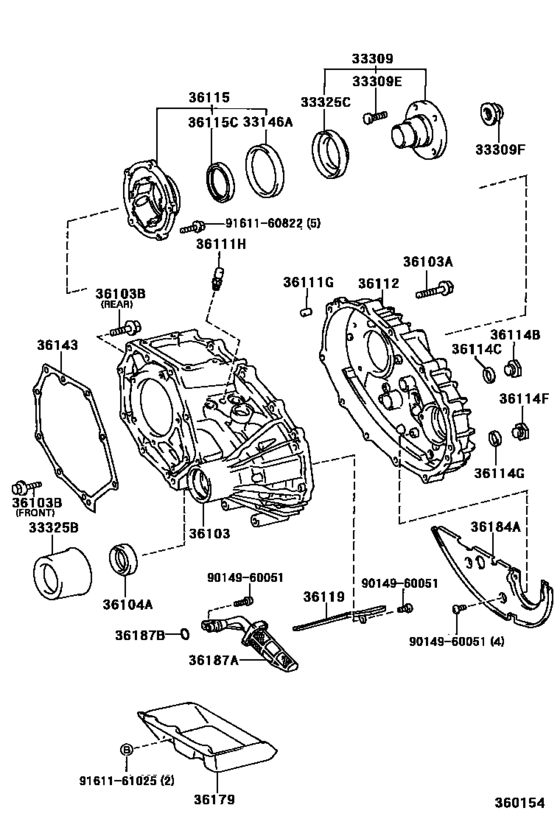

Transfer Case & Extension Housing ([05.1995 - ] (9505- )LY15#) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- LY152
- grade
- D
- ENGINE
- 5L
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1999
- To
- 08.2001
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33146A
|
33146A
33146-28020 Deflector, Transfer Extension Housing Dust[05.1995 -] LY15# |
33146-28020 |
US $5.82 |
||
|
33309
|
33309
33309-28030 Flange Sub-Assy, Transfer Output Shaft Companion[09.1996 -] LY15# |
33309-28030 |
US $215.49 |
||
|
33309E
|
33309E
90114-10017 Bolt (For Transfer Output Shaft Companion Flange)[05.1995 -] LY15# |
90114-10017 |
US $2.56 |
||
|
33309F
|
33309F
90179-20010 Nut (For Transfer Output Shaft Companion Flange)[05.1995 -] LY15# |
90179-20010 |
US $3.52 |
||
|
33325B
|
33325B
33325-28020 Deflector, Dust (For Transfer Extension Front Housing)[05.1995 -] LY15# |
33325-28020 |
US $10.08 |
||
|
33325C
|
33325C
33325-28050 Deflector, Dust (For Transfer Extension Rear Housing)[09.1996 -] LY15# |
33325-28050 |
US $18.64 |
||
|
36103
|
36103
36103-26020
Case Sub-Assy, Transfer
[05.1995 -] LY15# |
36103-26020 |
— | ||
|
36103A
|
36103A
91612-61050 Bolt(For Transaxle & Engine Setting)[05.1995 -] LY15# ＊１０−１．２５ＰＸ５０−３０ |
91612-61050 |
from US $1.33 |
||
|
36103B
|
36103B
90119-10615 Bolt (For Transfer Case & Adapter Setting)[05.1999 -] LY152 ＊１０−１．２５ＰＸ４７−３０,フロント |
90119-10615 |
US $2.08 |
||
|
36104A
|
36104A
90311-37003 Seal, Type T, Oil (For Transfer Output Shaft)[05.1997 -] LY15# |
90311-37003 |
from US $4.64 |
||
|
36111G
|
36111G
90250-10214 Pin, Straight(For End Plate)[05.1995 -] LY15# 長さ＝１４，外径＝１０ |
90250-10214 |
from US $1.46 |
||
|
36111H
|
36111H
90930-03085 Plug, Breather[05.1995 -] LY15# |
90930-03085 |
US $7.16 |
||
|
36112
|
36112
36104-28010 Case, Transfer, Rear[05.1995 -] LY15# |
36104-28010 |
US $471.74 |
||
|
36114B
|
36114B
90341-18006 Plug (No magnet)[05.1995 -] LY15# |
90341-18006 |
US $2.88 |
||
|
36114C
|
36114C
90430-18008 Gasket[05.1995 -] LY15# |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
36114C
|
36114C
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[05.1995 -] LY15# |
90430-T0021 |
— | ||
|
36114F
|
36114F
90341-18057 Drain Plug (with Magnet)[05.1995 -] LY15# |
90341-18057 |
US $5.60 |
||
|
36114G
|
36114G
90430-18008 Gasket[05.1995 -] LY15# |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
36114G
|
36114G
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[05.1995 -] LY15# |
90430-T0021 |
— | ||
|
36115
|
36115
36105-28020 Housing, Transfer Extension[05.1995 -] LY15# |
36105-28020 |
US $68.58 |
||
|
36115C
|
36115C
90311-52021 Seal, Type T Oil (For Transfer Extension Housing)[05.1997 -] LY15# |
90311-52021 |
from US $6.72 |
||
|
36119
|
36119
36119-25010 Receiver, Transfer Oil, No.1[05.1995 -] LY15# |
36119-25010 |
US $5.82 |
||
|
36143
|
36143
36143-28020 Gasket, Transfer Case, Front[05.1995 -] LY15# |
36143-28020 |
US $5.28 |
||
|
36179
|
36179
36179-28030 Protector, Transfer Case Lower[05.1995 -] LY15# |
36179-28030 |
US $51.98 |
||
|
36184A
|
36184A
36184-25010 Separator, Transfer Oil[05.1995 -] LY15# |
36184-25010 |
US $23.44 |
||
|
36187A
|
36187A
36187-25010 Strainr, Transfer Oil, No.1[05.1995 -] LY15# |
36187-25010 |
US $31.74 |
||
|
36187B
|
36187B
96721-24017 Ring, O (For Transfer Oil Strainer)[05.1995 -] LY15# |
96721-24017 |
US $1.75 |
||
|
9014960051
|
9014960051
90149-60051 New Genuine Part |
90149-60051 |
US $0.87 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
