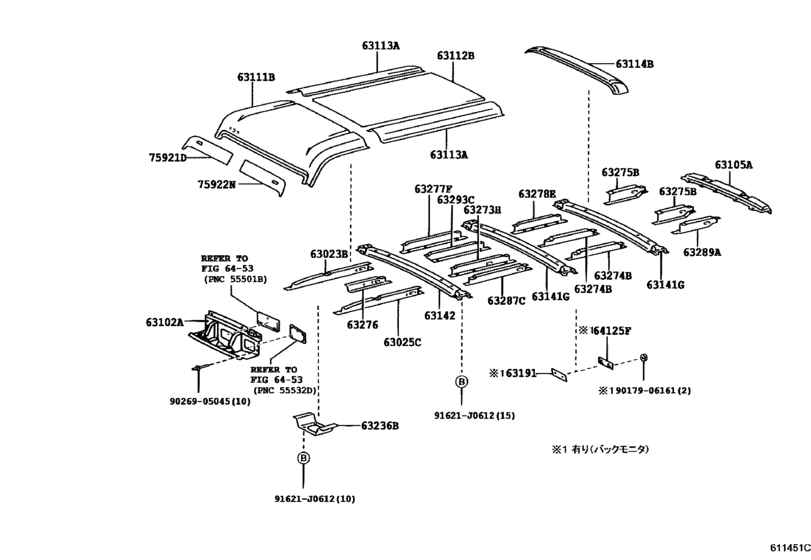

Roof Panel & Back Panel ([08.2001 - 07.2004] (0108-0407)LY228,270) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- LY228
- grade
- D
- ENGINE
- 5L
- TRANSMISSION
- MTM
- Model
- URBAN SUPPORTER
- From
- 08.2001
- To
- 07.2004
- Vehicle Model
- URBAN SUPPORTER
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63023B
|
63023B
63023-37010 Strength Sub-Assy, Roof Panel, Center No.2[08.1999 - 07.2004] LY228,270 |
63023-37010 |
US $24.46 |
||
|
63025C
|
63025C
63025-37010 Strength Sub-Assy, Roof Panel, Center No.6[08.1999 - 07.2004] LY228,270 |
63025-37010 |
US $25.04 |
||
|
63102A
|
63102A
63102-37060 Panel Sub-Assy, Windshield Header[08.1999 - 07.2004] LY228,270 ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞ ｺﾝｿ-ﾙ) |
63102-37060 |
US $179.09 |
||
|
63102A
|
63102A
63102-37070 Panel Sub-Assy, Windshield Header[08.1999 - 07.2004] LY228,270 |
63102-37070 |
US $196.56 |
||
| replacement | |||||
|
63102A
|
63102A
63102-37060 Panel Sub-Assy, Windshield Header[08.1999 - 07.2004] LY228,270 |
63102-37060 |
US $179.09 |
||
|
63105A
|
63105A
63105-37011 Frame Sub-Assy, Back Door Opening[08.1999 - 07.2004] LY228,270 |
63105-37011 |
US $209.66 |
||
|
63111B
|
63111B
63014-37010 Panel, Roof, No.1[06.2003 - 07.2004] LY228,270 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
63014-37010 |
US $330.51 |
||
|
63111B
|
63111B
63014-37020 Panel, Roof, No.1[06.2003 - 07.2004] LY228,270 |
63014-37020 |
US $329.06 |
||
|
63111B
|
63111B
63111-37210 Panel, Roof, No.1[08.2001 - 06.2003] LY228,270 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
63111-37210 |
US $327.60 |
||
| replacement | |||||
|
63111B
|
63111B
63014-37010 Panel, Roof, No.1[08.2001 - 06.2003] LY228,270 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
63014-37010 |
US $330.51 |
||
|
63111B
|
63111B
63111-37220 Panel, Roof, No.1[08.1999 - 06.2003] BU280,LY228,270..D..DSL |
63111-37220 |
US $327.60 |
||
| replacement | |||||
|
63111B
|
63111B
63014-37020 Panel, Roof, No.1[08.1999 - 06.2003] BU280,LY228,270..D..DSL |
63014-37020 |
US $329.06 |
||
|
63112B
|
63112B
63112-37080 Panel, Roof, Rear[08.2001 - 07.2004] LY228,270 |
63112-37080 |
US $1,820 |
||
|
63113A
|
63113A
63113-37060 Panel, Roof, No.3[08.2001 - 07.2004] LY228,270 |
63113-37060 |
US $199.47 |
||
|
63114B
|
63114B
63115-37010 Panel, Roof, No.4[08.1999 - 07.2004] LY228,270 |
63115-37010 |
US $104.83 |
||
|
63114B
|
63114B
63115-37040 Panel, Roof, No.4[08.1999 - 07.2004] LY228,270 ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
63115-37040 |
US $104.83 |
||
|
63141G
|
63141G
63103-37060 Reinforcement, Roof Panel, No.1[08.1999 - 07.2004] LY228,270 |
63103-37060 |
US $90.27 |
||
|
63142
|
63142
63104-37020 Reinforcement, Roof Panel, No.2[08.1999 - 07.2004] LY228,270 ｱﾘ(ﾙ-ﾑ ｾﾊﾟﾚ-ﾀ = ｽﾗｲﾄﾞ ﾀｲﾌﾟ) |
63104-37020 |
US $91.73 |
||
|
63142
|
63142
63104-37030 Reinforcement, Roof Panel, No.2[08.1999 - 07.2004] LY228,270 |
63104-37030 |
US $110.66 |
||
|
63191
|
63191
63191-37020 Retainer, Roof Panel[08.1999 - 07.2004] LY228,270 |
63191-37020 |
US $8.15 |
||
|
63236B
|
63236B
63236-37010 Bracket, Room Speaker[08.1999 - 07.2004] LY228,270 |
63236-37010 |
US $22.71 |
||
|
63273H
|
63273H
63273-37010 Strength, Roof Panel, No.3[08.1999 - 07.2004] LY228,270 |
63273-37010 |
US $43.53 |
||
|
63274B
|
63274B
63274-37010 Strength, Roof Panel, No.4 Rh[08.1999 - 07.2004] LY228,270 |
63274-37010 |
US $39.89 |
||
|
63275B
|
63275B
63275-37030 Strength, Roof Panel, No.5[08.2001 - 07.2004] LY228,270 |
63275-37030 |
US $22.28 |
||
|
63276
|
63276
63276-37010 Holder, Removable Roof Hinge, Lh[08.1999 - 07.2004] LY228,270 |
63276-37010 |
US $25.33 |
||
|
63277F
|
63277F
63277-37010 Strength, Roof Panel, No.7 Rh[08.1999 - 07.2004] LY228,270 |
63277-37010 |
US $43.97 |
||
|
63278E
|
63278E
63278-37010 Strength, Roof Panel, No.8 Rh[08.1999 - 07.2004] LY228,270 |
63278-37010 |
US $47.90 |
||
|
63287C
|
63287C
63287-37010 Strength, Roof Panel, No.7 Lh[08.1999 - 07.2004] LY228,270 |
63287-37010 |
US $43.53 |
||
|
63289A
|
63289A
63289-37020 Strength, Roof Panel, No.9 Lh[08.2001 - 07.2004] LY228,270 |
63289-37020 |
US $22.28 |
||
|
63293C
|
63293C
63293-37010 Strength, Roof Panel, No.11 Rh[08.2001 - 07.2004] LY228,270 |
63293-37010 |
US $52.27 |
||
|
64125F
|
64125F
64125-37020 Bracket, Upper Back Panel[08.1999 - 07.2004] LY228,270 |
64125-37020 |
US $14.56 |
||
|
75921D
|
75921D
75921-37010 Tape, Black Out, No.1 Rh[08.2001 - 07.2004] LY228,270 |
75921-37010 |
US $117.94 |
||
|
75922N
|
75922N
75922-37010 Tape, Black Out, No.1 Lh[08.2001 - 07.2004] LY228,270 |
75922-37010 |
US $117.94 |
||
|
75922N
|
75922N
75922-37020 Tape, Black Out, No.1 Lh[08.2001 - 07.2004] LY228,270 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
75922-37020 |
US $117.94 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.84 |
||
|
9026905045
|
9026905045
90269-05045 New Genuine Part |
90269-05045 |
US $2.48 |
||
