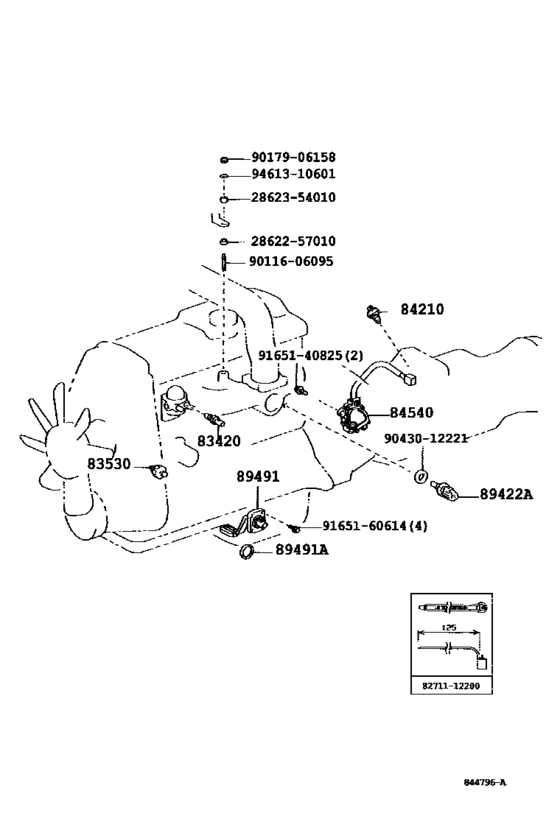

Switch & Relay & Computer ([08.2001 - 07.2004] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (0108-0407)LY228,270) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- LY228
- grade
- D
- ENGINE
- 5L
- TRANSMISSION
- MTM
- Model
- URBAN SUPPORTER
- From
- 08.2001
- To
- 07.2004
- Vehicle Model
- URBAN SUPPORTER
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.1999 - 07.2004] LY228,270 |
83420-16040 |
from US $32.68 |
||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[08.2001 - 07.2004] LY228,270 |
83530-60030 |
from US $25.68 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[08.1999 - 10.2006] BU28#,LY228,270,RZU280,XZU28#..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[08.1999 - 10.2006] BU28#,LY228,270,RZU280,XZU28#..MTM |
84210-52050 |
from US $20.67 |
||
|
89422A
|
89422A
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.2001 - 07.2004] LY228,270 |
89422-20010 |
from US $36.78 |
||
|
89491
|
89491
89491-26160 Sensor, Engine Oil Level[08.2001 - 07.2004] LY228,270 |
89491-26160 |
US $204.48 |
||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[08.2001 - 07.2004] LY228,270 |
89493-60010 |
from US $2.24 |
||
|
2862257010
|
2862257010
28622-57010 Insulator, Glow Plug Resistor, No.1 |
28622-57010 |
from US $1.40 |
||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
9011606095
|
9011606095
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.44 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
US $3.20 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
