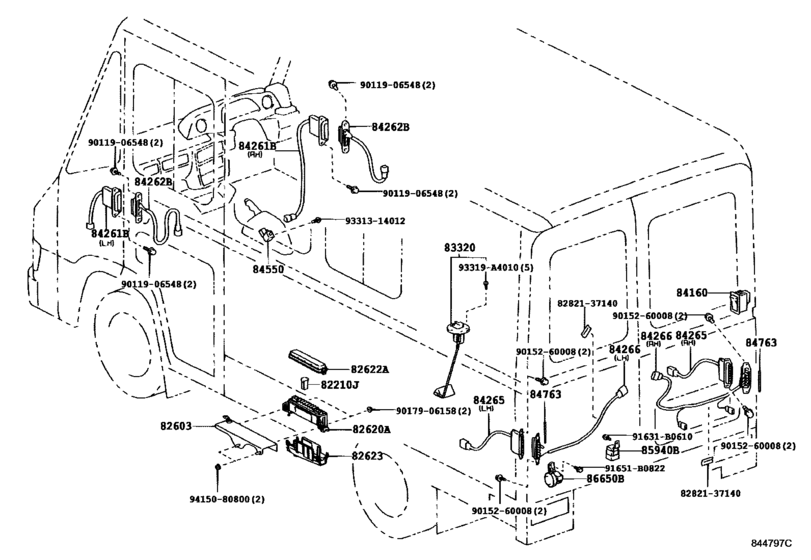

Switch & Relay & Computer ([08.2001 - 07.2004] ﾄﾞｱ,ﾙｰﾌ & ﾌﾛｱ (0108-0407)LY228,270) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- LY228
- grade
- D
- ENGINE
- 5L
- TRANSMISSION
- MTM
- Model
- URBAN SUPPORTER
- From
- 08.2001
- To
- 07.2004
- Vehicle Model
- URBAN SUPPORTER
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08202 Fusible Link[08.2001 - 07.2004] LY228,270 ６０Ａ，オス端子 |
90982-08202 |
US $11.20 |
||
|
82210J
|
82210J
90982-08203 Fusible Link[08.2001 - 10.2006] LY228,270,RZU280,XZU281..DSL,LPG ８０Ａ，オス端子 |
90982-08203 |
from US $7.36 |
||
|
82210J
|
82210J
90982-08228 Fusible Link[08.2001 - 06.2004] LY228,270 ５０Ａ，オス端子 |
90982-08228 |
from US $9.28 |
||
|
82210J
|
82210J
90982-08246 Fusible Link[08.2001 - 10.2006] LY228,270,RZU280,XZU281..DSL,LPG １００Ａ，オス端子 |
90982-08246 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08274 Fusible Link[08.2001 - 10.2006] LY228,270,RZU280,XZU281..DSL,LPG １２０Ａ，オス端子 |
90982-08274 |
from US $7.68 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[08.2001 - 07.2004] LY228,270 ３０Ａ，メス端子 |
90982-08280 |
from US $4.52 |
||
|
82210J
|
82210J
90982-08281 Fusible Link[08.2001 - 06.2004] LY228,270 ４０Ａ，メス端子 |
90982-08281 |
from US $9.44 |
||
|
82210J
|
82210J
90982-08282 Fusible Link[08.2001 - 06.2004] LY228,270 ５０Ａ，メス端子 |
90982-08282 |
from US $7.04 |
||
|
82603
|
82603
82603-37020 Bracket Sub-Assy, Fusible Link Block[08.2001 - 07.2004] LY228,270 |
82603-37020 |
US $60.57 |
||
|
82620A
|
82620A
82620-36080 Block Assy, Fusible Link[08.2001 - 07.2004] LY228,270 |
82620-36080 |
US $91.73 |
||
|
82622A
|
82622A
82622-37010 Cover, Fusible Link, Upper, No.2[08.2001 - 07.2004] LY228,270 |
82622-37010 |
US $36.25 |
||
|
82623
|
82623
82623-36010 Cover, Fusible Link, Lower[08.2001 - 07.2004] LY228,270 |
82623-36010 |
US $30.93 |
||
|
83320
|
83320
83320-80391 Gage Assy, Fuel Sender[08.2001 - 07.2004] LY228,270 |
83320-80391 |
US $45.25 |
||
|
84160
|
84160
84170-90D00 Switch Assy, Room Lamp[08.1999 - 10.2006] BU28#,LY228,270,RZU280,XZU28# |
84170-90D00 |
US $54.57 |
||
|
84261B
|
84261B
84261-37010 Junction, Slide Door Control,male[08.1999 - 07.2004] LY228,270 右側 |
84261-37010 |
US $54.75 |
||
|
84261B
|
84261B
84261-37020 Junction, Slide Door Control,male[08.1999 - 07.2004] LY228,270 左側 |
84261-37020 |
US $54.75 |
||
|
84262B
|
84262B
84262-37011 Junction, Slide Door Control, Female[08.1999 - 07.2004] LY228,270 |
84262-37011 |
US $53.96 |
||
|
84265
|
84265
84265-37010 Junction, Back Door Male[08.1999 - 03.2003] BU28#,LY228,270 右側 |
84265-37010 |
US $113.57 |
||
| replacement | |||||
|
84265
|
84265
84265-37030 Junction, Back Door Male[08.1999 - 03.2003] BU28#,LY228,270 右側 |
84265-37030 |
US $113.52 |
||
|
84265
|
84265
84265-37020 Junction, Back Door Male[08.1999 - 07.2004] LY228,270 左側 |
84265-37020 |
US $84.45 |
||
| replacement | |||||
|
84265
|
84265
84265-37030 Junction, Back Door Male[08.1999 - 07.2004] LY228,270 左側 |
84265-37030 |
US $113.52 |
||
|
84265
|
84265
84265-37030 Junction, Back Door Male[03.2003 - 07.2004] LY228,270 右側 |
84265-37030 |
US $113.52 |
||
|
84266
|
84266
84266-37010 Junction, Back Door Female[08.1999 - 07.2004] LY228,270 右側 |
84266-37010 |
US $100.32 |
||
|
84266
|
84266
84266-37020 Junction, Back Door Female[08.1999 - 07.2004] LY228,270 左側 |
84266-37020 |
US $74.26 |
||
|
84266
|
84266
84266-37030 Junction, Back Door Female[08.1999 - 07.2004] LY228,270 ｱﾘ(ﾘﾔﾜｲﾊﾟ),左側 |
84266-37030 |
US $125.22 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[08.1999 - 10.2006] BU28#,LY228,270,RZU280,XZU28# |
84550-16060 |
from US $17.48 |
||
|
84763
|
84763
84763-37010 Plate, Switch[08.1999 - 07.2004] LY228,270 |
84763-37010 |
US $1.60 |
||
|
85940B
|
85940B
85940-37050 Relay Assy, Rear Wiper[08.2001 - 07.2004] LY228,270 |
85940-37050 |
US $152.88 |
||
|
86650B
|
86650B
86650-25050 Buzzer Assy, Reverse Warning[08.2001 - 07.2004] LY228,270 |
86650-25050 |
US $31.16 |
||
|
91631B0610
|
91631B0610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.72 |
||
|
8282137140
|
8282137140
82821-37140 Retainer, Headlamp Harness |
82821-37140 |
US $1.46 |
||
|
9011906548
|
9011906548
90119-06548 BOLT WWASHER |
90119-06548 |
from US $0.74 |
||
|
9015260008
|
9015260008
90152-60008 New Genuine Part |
90152-60008 |
US $1.92 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9331314012
|
9331314012
93313-14012 SCREW |
93313-14012 |
US $0.96 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.84 |
||
