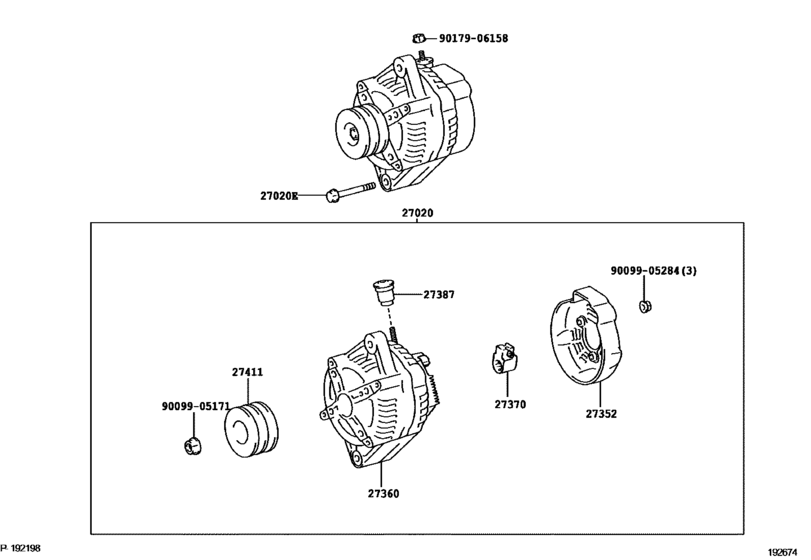

Alternator ([10.2006 - 10.2010] 12V 130A (0610-1010)) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XKU280
- grade
- D
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 10.2006
- To
- 09.2011
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-78150 Alternator Assy[10.2006 - 10.2010] N04C..XKU280 １２Ｖ １３０Ａ |
27060-78150 |
US $1,674.40 |
||
| replacements | |||||
|
27020
|
27020
27060-E0330
Alternator Assy
[10.2006 - 10.2010] N04C..XKU280 １２Ｖ １３０Ａ |
27060-E0330 |
— | ||
|
27020
|
27020
12519-78050 Slider, Fan Belt Adjusting[10.2006 - 10.2010] N04C..XKU280 １２Ｖ １３０Ａ |
12519-78050 |
US $19.66 |
||
|
27020
|
27020
90031-05143 New Genuine Part[10.2006 - 10.2010] N04C..XKU280 １２Ｖ １３０Ａ |
90031-05143 |
US $1.79 |
||
|
27020
|
27020
90031-05146 BOLT FLANGE[10.2006 - 10.2010] N04C..XKU280 １２Ｖ １３０Ａ |
90031-05146 |
US $3.94 |
||
|
27020
|
27020
27060-78200 Alternator Assy[10.2010 -] N04C..XKU280 １２Ｖ １３０Ａ |
27060-78200 |
US $1,361.36 |
||
| replacement | |||||
|
27020
|
27020
27060-E0330
Alternator Assy
[10.2010 -] N04C..XKU280 １２Ｖ １３０Ａ |
27060-E0330 |
— | ||
|
27020E
|
27020E
90031-05093 Bolt(For Alternator)[10.2006 -] N04C..XKU280 |
90031-05093 |
US $3.40 |
||
|
27352
|
27352
27352-89105 Cover, Frame Brush[10.2006 -] N04C..XKU280 |
27352-89105 |
US $34.94 |
||
| replacement | |||||
|
27352
|
27352
S2735-21180
Cover, Frame Brush
[10.2006 -] N04C..XKU280 |
S2735-21180 |
— | ||
|
27360
|
27360
27360-89104 Coil Assy, Alternator[10.2006 -] N04C..XKU280 |
27360-89104 |
US $1,834.56 |
||
| replacement | |||||
|
27360
|
27360
S2746-01030
Coil Assy, Alternator
[10.2006 -] N04C..XKU280 |
S2746-01030 |
— | ||
|
27370
|
27370
27370-58460 Holder Assy, Alternator Brush[10.2006 -] N04C..XKU280 |
27370-58460 |
from US $14.61 |
||
|
27387
|
27387
27387-20130 Insulator, Terminal[10.2006 -] N04C..XKU280 |
27387-20130 |
from US $4.02 |
||
|
27411
|
27411
27411-89108 Pulley, Alternator[10.2006 -] N04C..XKU280 |
27411-89108 |
US $48.05 |
||
| replacement | |||||
|
27411
|
27411
S2743-11800 Pulley, Alternator[10.2006 -] N04C..XKU280 |
S2743-11800 |
US $33.49 |
||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
