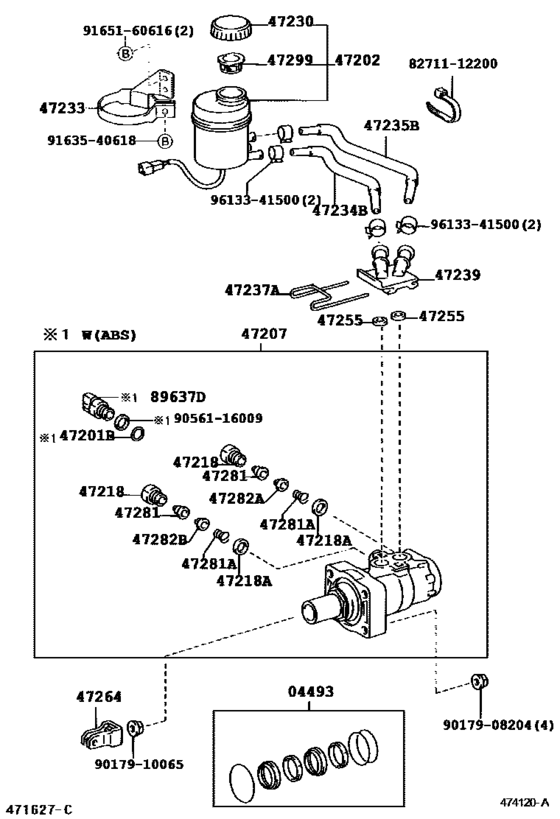

Brake Master Cylinder ([08.1999 - ] ｱﾘ(ABS) (9908- )BU28#,RZU280,XKU280,XZU28#) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XKU280
- grade
- D
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 10.2006
- To
- 09.2011
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-36230 Cylinder Kit, Brake Master[10.2006 - 09.2011] XKU280 |
04493-36230 |
from US $50.40 |
||
|
47201B
|
47201B
90301-15014 Ring, O(For Drain Plug)[10.2006 - 09.2011] XKU280 |
90301-15014 |
US $1.31 |
||
|
47202
|
47202
47220-36080 Reservoir Sub-Assy, Brake Master Cylinder[10.2006 - 09.2011] XKU280 |
47220-36080 |
US $96.10 |
||
|
47207
|
47207
47207-37060 Cylinder Sub-Assy, Brake Master Less Reservoir Tank[10.2006 - 09.2011] XKU280 |
47207-37060 |
from US $497.50 |
||
|
47218
|
47218
47218-36091 Plug, Master Cylinder Fluid Outlet[10.2006 - 09.2011] XKU280 |
47218-36091 |
US $5.39 |
||
|
47218A
|
47218A
90430-16013 Gasket(For Fluid Outlet Plug)[10.2006 - 09.2011] XKU280 |
90430-16013 |
US $1.02 |
||
|
47230
|
47230
47230-24010
Cap Assy, Brake Master Cylinder Reservoir Filler
[10.2006 - 09.2011] XKU280 |
47230-24010 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-47090 Cap Assy, Brake Master Cylinder Reservoir Filler[10.2006 - 09.2011] XKU280 |
47230-47090 |
from US $11.74 |
||
|
47233
|
47233
47233-37030 Bracket, Reservoir[10.2006 - 09.2011] XKU280 |
47233-37030 |
US $8.74 |
||
|
47234B
|
47234B
47234-37110 Tube, Reservoir, No.1[10.2006 - 09.2011] XKU280 |
47234-37110 |
US $10.48 |
||
|
47235B
|
47235B
47235-37100 Tube, Brake Master Cyrinder Reservoir, No.2[10.2006 - 09.2011] XKU280 |
47235-37100 |
US $10.48 |
||
|
47237A
|
47237A
47237-36020 Stopper, Breke Master Cylinder Reservoir Tank[10.2006 - 09.2011] XKU280 |
47237-36020 |
US $5.91 |
||
|
47239
|
47239
47239-36020 Connector, Brake Master Cylinder Reservoir[10.2006 - 09.2011] XKU280 |
47239-36020 |
US $10.22 |
||
|
47255
|
47255
47255-52010 Grommet, Master Cylinder Reservoir[10.2006 - 09.2011] XKU280 |
47255-52010 |
from US $2.26 |
||
|
47264
|
47264
47264-50010 Clevis, Master Cylinder Push Rod[10.2006 - 09.2011] XKU280 |
47264-50010 |
from US $8.47 |
||
|
47281
|
47281
47281-36010 Valve, Brake Master Cylinder Outlet Check[10.2006 -] XKU280 |
47281-36010 |
US $4.37 |
||
|
47281A
|
47281A
90905-01054 Spring Compression(For Outlet Check Valve)[10.2006 - 09.2011] XKU280 |
90905-01054 |
US $0.29 |
||
|
47282A
|
47282A
47282-36010 Seat, Outlet Check Valve, No.1[10.2006 - 09.2011] XKU280 |
47282-36010 |
US $0.58 |
||
|
47282B
|
47282B
47282-36020 Seat, Outlet Check Valve, No.1[10.2006 - 09.2011] XKU280 |
47282-36020 |
US $0.58 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[10.2006 - 09.2011] XKU280 |
47299-20060 |
US $2.24 |
||
|
89637D
|
89637D
89637-51010 Sensor, Oil Pressure[10.2006 - 09.2011] XKU280 |
89637-51010 |
US $256.84 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
|
9056116009
|
9056116009
90561-16009 Spacer(For Brake Booster Pump Oil Pressure Sensor) |
90561-16009 |
US $0.96 |
||
|
9163540618
|
9163540618
91635-40618 BOLT WWASHER |
91635-40618 |
from US $0.78 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.91 |
||
|
9613341500
|
9613341500
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.26 |
||
