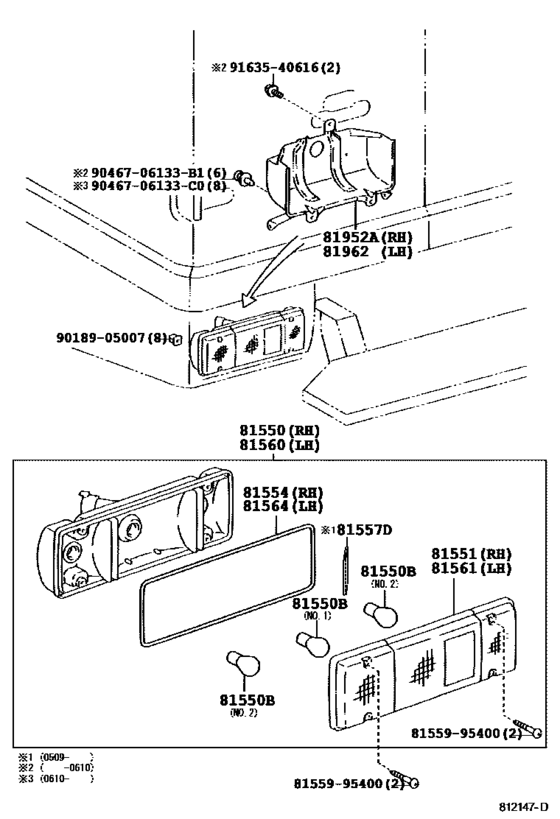

Rear Combination Lamp ([03.2002 - ] (0203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XKU280
- grade
- D
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 10.2006
- To
- 09.2011
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-37250 Lamp Assy, Rear Combination, Rh[10.2006 -] XKU280 |
81550-37250 |
US $122.30 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[10.2006 -] XKU280 １２Ｖ ２１Ｗ,ＮＯ．２ |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[10.2006 -] XKU280 １２Ｖ ２１／５Ｗ,ＮＯ．１ |
99132-21210 |
from US $2.74 |
||
|
81551
|
81551
81551-60442 Lens, Rear Combination Lamp, Rh[10.2006 -] XKU280 |
81551-60442 |
from US $33.10 |
||
|
81554
|
81554
81552-95400 Gasket, Rear Combination Lamp Lens, Rh[10.2006 -] XKU280 |
81552-95400 |
US $9.14 |
||
|
81557D
|
81557D
81557-95403 Reflector, Rear Combination Lamp[10.2006 -] XKU280 |
81557-95403 |
US $10.57 |
||
|
81560
|
81560
81560-37260 Lamp Assy, Rear Combination, Lh[10.2006 -] XKU280 |
81560-37260 |
US $122.30 |
||
|
81561
|
81561
81561-60372 Lens, Rear Combination Lamp, Lh[10.2006 -] XKU280 |
81561-60372 |
from US $33.10 |
||
|
81564
|
81564
81552-95400 Gasket, Rear Combination Lamp Lens, Rh[10.2006 -] XKU280 |
81552-95400 |
US $9.14 |
||
|
81952A
|
81952A
81952-37030 Cover, Rear Lamp, Rh[10.2006 -] XKU280 |
81952-37030 |
US $54.75 |
||
|
81962
|
81962
81962-37020 Cover, Rear Lamp, Lh[10.2006 -] XKU280 |
81962-37020 |
US $54.75 |
||
|
8155995400
|
8155995400
81559-95400 Moulding, Rear Combination Lamp, Rh |
81559-95400 |
from US $1.63 |
||
|
9018905007
|
9018905007
90189-05007 SCREW |
90189-05007 |
from US $0.95 |
||
|
9046706133B1
|
9046706133B1
90467-06133-B1 Clip (For Seat Track Cover) |
90467-06133-B1 |
US $2.33 |
||
|
9046706133C0
|
9046706133C0
90467-06133-C0 Clip, Step Plate Cover |
90467-06133-C0 |
from US $1.43 |
||
|
9163540616
|
9163540616
91635-40616 New Genuine Part |
91635-40616 |
US $0.87 |
