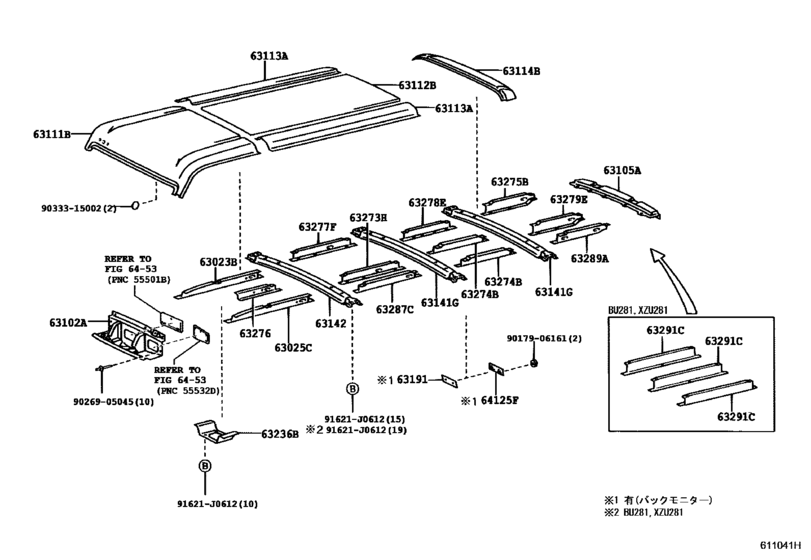

Roof Panel & Back Panel ([08.1999 - ] (9908- )BU28#,RZU280,XKU280,XZU28#) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XKU280
- grade
- D
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 10.2006
- To
- 09.2011
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63023B
|
63023B
63023-37010 Strength Sub-Assy, Roof Panel, Center No.2[10.2006 -] XKU280 |
63023-37010 |
US $24.46 |
||
|
63025C
|
63025C
63025-37010 Strength Sub-Assy, Roof Panel, Center No.6[10.2006 -] XKU280 |
63025-37010 |
US $25.04 |
||
|
63102A
|
63102A
63102-37060 Panel Sub-Assy, Windshield Header[10.2006 -] XKU280 |
63102-37060 |
US $179.09 |
||
|
63105A
|
63105A
63105-37011 Frame Sub-Assy, Back Door Opening[10.2006 -] XKU280 |
63105-37011 |
US $209.66 |
||
|
63111B
|
63111B
63014-37010 Panel, Roof, No.1[10.2006 -] XKU280 |
63014-37010 |
US $330.51 |
||
|
63112B
|
63112B
63112-37050 Panel, Roof, Rear[10.2006 -] XKU280 |
63112-37050 |
US $1,674.40 |
||
|
63113A
|
63113A
63113-37030 Panel, Roof, No.3[10.2006 -] XKU280 |
63113-37030 |
US $171.81 |
||
|
63114B
|
63114B
63115-37010 Panel, Roof, No.4[10.2006 -] XKU280 |
63115-37010 |
US $104.83 |
||
|
63114B
|
63114B
63115-37040 Panel, Roof, No.4[10.2006 -] XKU280 ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
63115-37040 |
US $104.83 |
||
|
63141G
|
63141G
63103-37060 Reinforcement, Roof Panel, No.1[10.2006 -] XKU280 |
63103-37060 |
US $90.27 |
||
|
63142
|
63142
63104-37020 Reinforcement, Roof Panel, No.2[10.2006 -] XKU280 |
63104-37020 |
US $91.73 |
||
|
63191
|
63191
63191-37020 Retainer, Roof Panel[10.2006 -] XKU280 |
63191-37020 |
US $8.15 |
||
|
63236B
|
63236B
63236-37010 Bracket, Room Speaker[10.2006 -] XKU280 |
63236-37010 |
US $22.71 |
||
|
63273H
|
63273H
63273-37010 Strength, Roof Panel, No.3[10.2006 -] XKU280 |
63273-37010 |
US $43.53 |
||
|
63274B
|
63274B
63274-37010 Strength, Roof Panel, No.4 Rh[10.2006 -] XKU280 |
63274-37010 |
US $39.89 |
||
|
63275B
|
63275B
63275-37010 Strength, Roof Panel, No.5[10.2006 -] XKU280 |
63275-37010 |
US $37.13 |
||
|
63276
|
63276
63276-37010 Holder, Removable Roof Hinge, Lh[10.2006 -] XKU280 |
63276-37010 |
US $25.33 |
||
|
63277F
|
63277F
63277-37010 Strength, Roof Panel, No.7 Rh[10.2006 -] XKU280 |
63277-37010 |
US $43.97 |
||
|
63278E
|
63278E
63081-37010 Strength, Roof Panel, No.8 Rh[10.2006 -] XKU280 |
63081-37010 |
US $91.73 |
||
|
63279E
|
63279E
63279-37010 Strength, Roof Panel, No.9 Rh[10.2006 -] XKU280 |
63279-37010 |
US $37.13 |
||
|
63287C
|
63287C
63287-37010 Strength, Roof Panel, No.7 Lh[10.2006 -] XKU280 |
63287-37010 |
US $43.53 |
||
|
63289A
|
63289A
63289-37010 Strength, Roof Panel, No.9 Lh[10.2006 -] XKU280 |
63289-37010 |
US $36.11 |
||
|
64125F
|
64125F
64125-37020 Bracket, Upper Back Panel[10.2006 -] XKU280 |
64125-37020 |
US $14.56 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.78 |
||
|
9026905045
|
9026905045
90269-05045 New Genuine Part |
90269-05045 |
US $2.48 |
||
|
9033315002
|
9033315002
90333-15002 PLUG |
90333-15002 |
US $1.61 |
