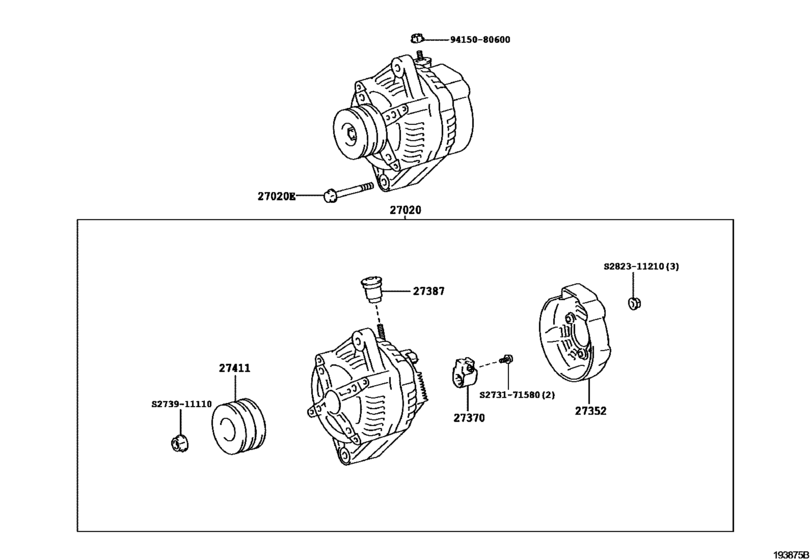

Alternator ([03.2012 - ] 24V 80A (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-78240 Alternator Assy[03.2012 -] N04C..XZU282 ２４Ｖ ８０Ａ |
27060-78240 |
US $1,596 |
||
|
27020E
|
27020E
90031-05093 Bolt(For Alternator)[03.2012 -] N04C..XZU282 |
90031-05093 |
US $3.40 |
||
|
27352
|
27352
S2735-21152
Cover, Frame Brush
[03.2012 -] N04C..XZU282 |
S2735-21152 |
— | ||
|
27370
|
27370
S2737-01370
Holder Assy, Alternator Brush
[03.2012 -] N04C..XZU282 |
S2737-01370 |
— | ||
|
27387
|
27387
S2738-71350
Insulator, Terminal
[03.2012 -] N04C..XZU282 |
S2738-71350 |
— | ||
|
27411
|
27411
S2743-11810 Pulley, Alternator[03.2012 -] N04C..XZU282 |
S2743-11810 |
US $29.81 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
|
S273171580
|
S273171580
S2731-71580
New Genuine Part
|
S2731-71580 |
— | ||
|
S273911110
|
S273911110
S2739-11110 New Genuine Part |
S2739-11110 |
US $1.16 |
||
|
S282311210
|
S282311210
S2823-11210
New Genuine Part
|
S2823-11210 |
— |
